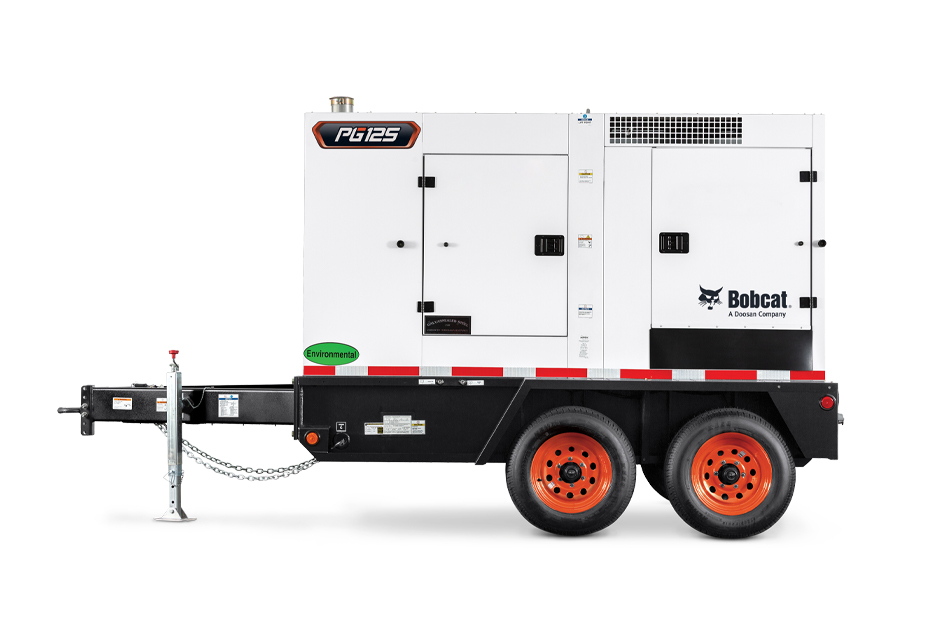

Bobcat PG125

PG125

The Bobcat PG125 portable generator is all about reliability and usability to maximize your jobsite productivity and efficiency. It was engineered for easy accessibility to all service components, keeping you up and running with minimal downtime. It boasts tough running gear and a hardened, galvanized steel enclosure that protects the inner components from the elements, improving longevity while lowering total lifetime cost of operation.

Powered by a Cummins QSB5-G11 engine that delivers fuel economy and performance with built-in load management to decrease sludge buildup for low-load operation, the PG125 generator is a towable workhorse. It gives you ultimate versatility with the capability of producing a wide range of output voltages. The voltage change feature is blocked from unauthorized access and will shut the generator down to prevent switching during operation, protecting both the operator and the machine.

The PG125 comes with even more safety features built in to protect the operator and the machine. For example, the magnetized door for the switch board will automatically turn off the engine when open to drastically reduce the chance of accidental injury. The customer connection panel is spacious and designed to accept a wide variety of power cables. The convenience receptacle panel includes 240V single phase twist-lock receptacles and 120V GFCI receptacles that are powered any time the unit is running.

The PG125 also features the upgraded CoolBox Plus™ enclosure design, which adds a temperature-controlled, variable-speed cooling fan. This allows enhanced performance in extreme ambient temperatures while further improving sound attenuation and reducing water ingression across the operating range.

Bobcat Portable Generator Literature:

Download Bobcat Portable Generator Literature

Features

• Hardened Galvanized Steel Enclosure
• Upgraded CoolBox Plus™ Enclosure Design
• Easy-To-Use Operator Interface
• LCD Display

Options

• Intelligent Load Management System

PG125

Dimensions

• LENGTH

  169.9 in

• WIDTH

  71.3 in

• HEIGHT

  94.9 in

• WEIGHT

  6,990 lb

Engine

• ENGINE MAKE

  Cummins/QSB-G11

• DISPLACEMENT

  4.5 L

• EMISSIONS TIER LEVEL

  Tier 4 Final

• BATTERY VOLTAGE

  24 VDC

• RUNTIME @ 75% LOAD

  32.4 hr

• AFTERTREATMENT TECH

  DOC / SCR

Capacities

• FUEL TANK CAPACITY

  172 gal

• DIESEL EXHAUST FLUID CAPACITY

  24 gal

Prime Power Rating

• @ 480V-3-PHASE, 0.8PF, 60Hz

  125 kVA (100 kW), 151 Amps

• @ 240V-3-PHASE, 0.8PF, 60Hz

  125 kVA (100 kW), 301 Amps

• @ 208V-3-PHASE, 0.8PF, 60Hz

  121 kVA (97 kW), 336 Amps

• @ 240V-SINGLE-PHASE, 1.0PF, 60Hz

  86 kVA (86 kW), 360 Amps

• @ 120V-SINGLE-PHASE, 1.0PF, 60Hz

  86 kVA (86 kW), 360 x 2 Amps

• @ 400V-3-PHASE, 0.8PF, 50H

  105 kVA (84 kW), 152 Amps

• POWER OUTPUT @ 1,800 RPM

  153 hp

• SOUND LEVEL

  68 dB(A)

• FREQUENCY CAPABILITY

  50Hz/60Hz Switchable

• VOLTAGE CONFIGURATION

  3-Position Switch
