Bobcat UT6066
-
- Make
- Bobcat
-
- Category
- Bobcat Utility Tractors
-
- Horsepower
- 66.4 hp
-
- Width
- 77.2 in
-
- PTO
- 53.6 hp
-
- Weight
- 5,440 lb
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote
UT6066

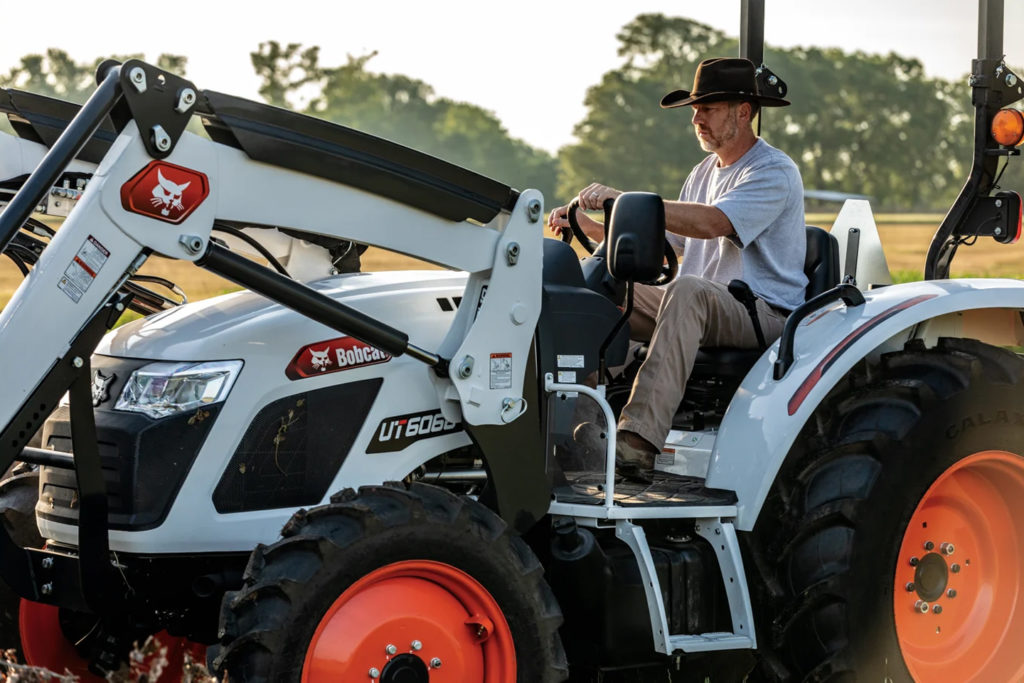

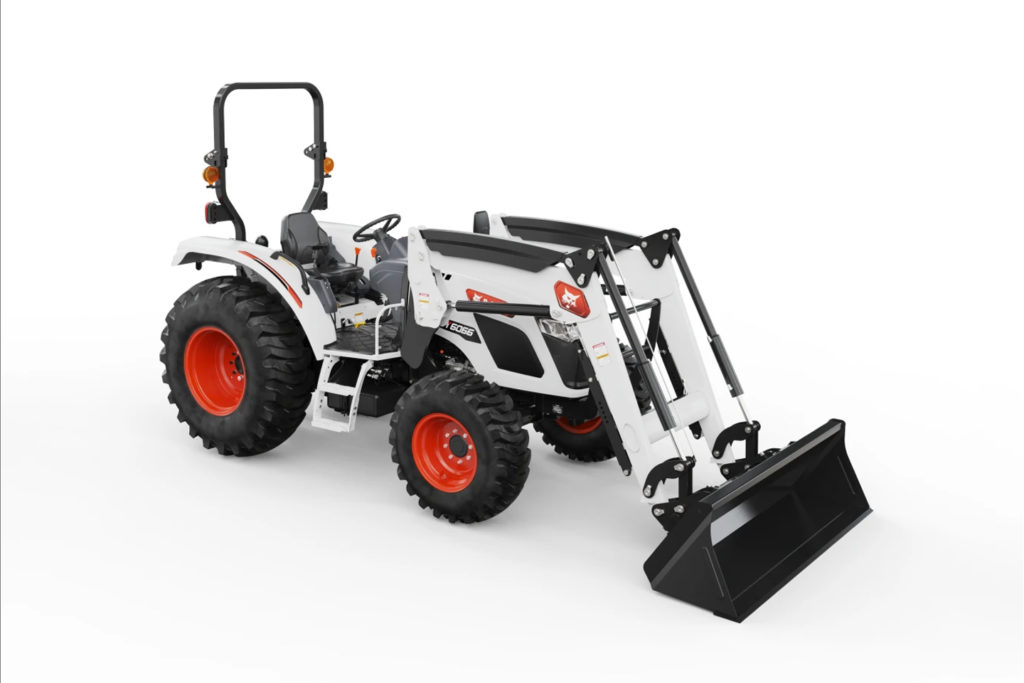

The Bobcat UT6066 utility tractor was designed for those who frequently get on and off their machine due to its open operator station with easy entry. Its powerful 66-horsepower engine delivers high performance for many productive hours and challenging jobs and the standard mechanical self-leveling front-end loader make the unit easy to operate and reduces spills. The UT6066 features a 12×12, three-range powershuttle transmission which enables easy direction changes with no clutching. It also has a Category 2, 3-point hitch rear PTO and two standard rear remote hydraulic hookups to provide maximum attachment versatility for your jobs.
Compact Tractor Literature:
Download Bobcat UT6066 Utility Tractor Spec Sheet
Features
- Suspension Seat
- Spark Arrestor Muffler
- Tilt Steering Wheel
- Fold Down ROPS
- Glow Plug Engine Pre-Heat
- Cruise Control
- Horn
- LED Headlights, Work Lights & Tail Lamp
Popular Attachments
- Auger

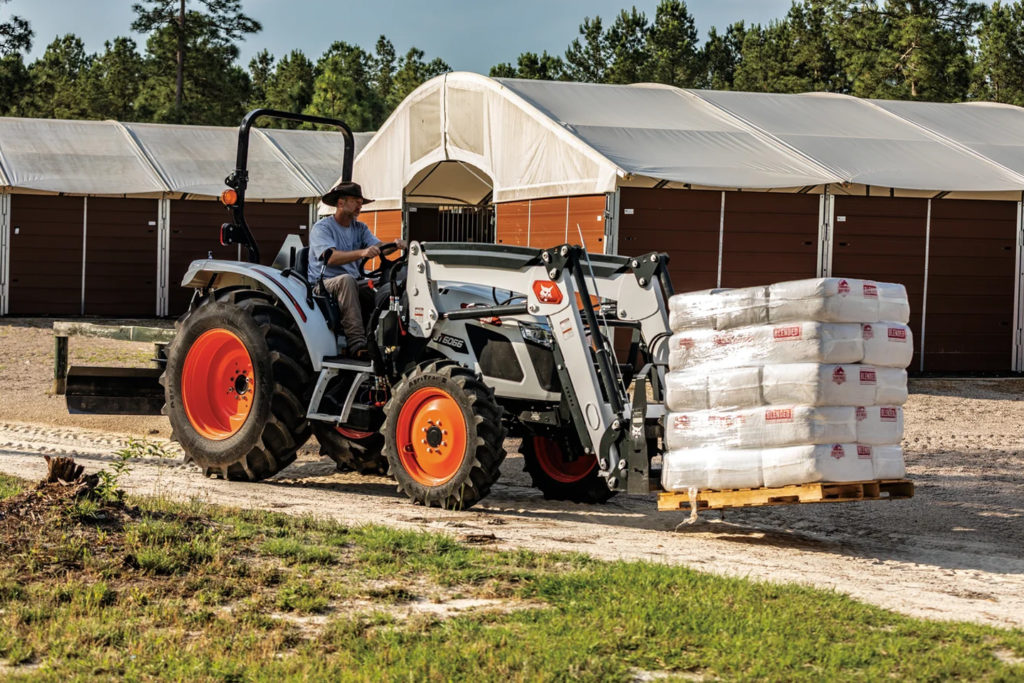

- Pallet Fork
- Front End Loader Arms
- Snow Blade
- Tine Rake
- Angle Blade
UT6066
Engine
-
- ENGINE
- Tier 4
-
- HORSEPOWER
- 66.4 hp
-
- DISPLACEMENT
- 149 in³
-
- NUMBER OF CYLINDERS
- 4
-
- ENGINE MODEL
- 4HT-TP4A
-
- FUEL TANK
- 22.5 gal
Dimensions
-
- LENGTH
- 148.8 in
-
- WIDTH
- 77.2 in
-
- HEIGHT
- 102.1 in
-
- WEIGHT
- 5,440 lb
-
- GROUND CLEARANCE
- 12.3 in
-
- TURNING RADIUS
- 12' 3"
-
- WHEELBASE
- 6' 10"
-
- FRONT TIRE SIZE
- Front Industrial (AG, Multi-Use) 12.5/80-18 (9.5-24, 340/80R18)
-
- REAR TIRE SIZE
- Rear Industrial (AG, Multi-Use) 18.4-24 (16.9-30, 480/80R26)
Hydraulic & Drive System
-
- TOTAL HYDRAULIC FLOW
- 17.8 gal/min
-
- IMPLEMENT HYDRAULIC FLOW
- 10.99 gal/min
-
- STEERING HYDRAULIC FLOW
- 6.87 gal/min
-
- BRAKE TYPE
- Wet Multi Disc
-
- TRANSMISSION TYPE
- 3 Range Powershuttle (W/Electronic Clutch)
Operational
-
- TRAVEL SPEED
- 31.9 km/h
-
- TRAVEL SPEED - REVERSE
- 31.2 km/h
-
- 3-POINT HITCH
- Category 2
-
- 3-PT LIFT CONTROL TYPE
- Position With Draft Control
-
- LIFT CAPACITY AT 24" BEHIND LIFT POINT
- 3,898 lb
-
- REAR PTO SYSTEM
- Independent
-
- REAR PTO - RPM
- 540
-
- PTO HP
- 53.6 hp
Loader Attachment
-
- LOADER LIFT HEIGHT
- 10' 9"
-
- BUCKET WIDTH
- 6' 9"
