Compare Equipment

Bobcat L285

L285

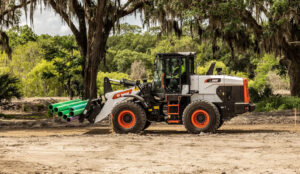

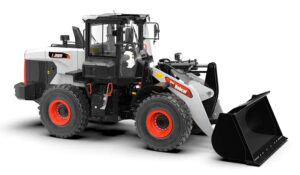

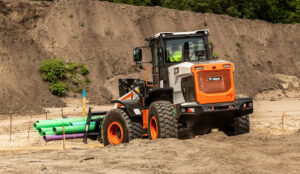

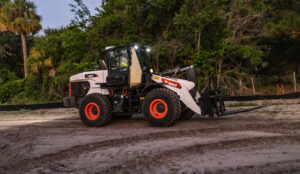

The most powerful model in the lineup, the Bobcat L285 large wheel loader is designed for your most demanding material moving applications. Its 189 hp Tier 4 engine, 5.5 yd³ bucket capacity, and over 27,000 lbs of tipping load (straight) give it an edge in even the heaviest-duty jobs. Equipped with a 4F/3R powershift transmission, auto idle, auto shutdown, and high-flow hydraulics, this machine works harder and smarter. The cab provides a premium operating experience with wide glass panels, advanced touchscreen controls, ride control, and operator-focused comfort. Whether you’re loading, pushing, or lifting, the L285 is the ultimate material handling workhorse.

Large Wheel Loader Literature:

Download Large Wheel Loader Brochure

Download Bobcat Attachments Catalog

Features

  • Enclosed Cab with HVAC
  • Heated Air Suspension Seat
  • Joystick Controls
  • Keyless Start with Key Fob
  • Rear View Camera
  • 8" Touch Display
  • Bluetooth Connectivity
  • Ride Control
  • Return-to-Dig
  • Inching Control
  • Auto Idle & Auto Shutdown
  • Reversible Cooling Fan
  • LED Work Lights
  • Machine IQ Telematics
  • Auxiliary Hydraulics
  • Z-Bar Linkage
  • Powershift Transmission (4F/3R)
  • 3 Power Modes
  • Centralized & Remote Grease Points
  • Outboard Brakes
  • 40° Articulation

Options

  • Quick Coupler
  • Full High-Flow Hydraulics
  • Radio
  • Rotating Beacon
  • Full Rear Fenders
  • Additional LED Lighting
  • Counterweight Kit
  • Payload Weighing System
  • Power Bob-Tach
  • Tire Packages

L285

Main

  • ROC
    13,682 lb
  • Width
    107.9 in
  • Horsepower
    189 hp
  • Engine
    Tier 4
  • Fuel Type
    Diesel

Dimensions

  • LENGTH
    260.6 in
  • LENGTH WITH BUCKET
    315.0 in
  • HEIGHT
    132.2 in
  • WIDTH
    107.9 in
  • WEIGHT
    34,487 lb
  • ARTICULATION ANGLE
    40°
  • TURNING RADIUS INSIDE
    243.8 in
  • TURNING RADIUS OUTSIDE
    216.9 in
  • WHEELBASE
    120 in
  • HEIGHT TO BUCKET HINGE PIN
    155.5 in
  • TIRE SIZE
    20.5R25 L3
  • GROUND CLEARANCE
    17 in
  • ROLLBACK ANGLE
    49°
  • DUMP ANGLE AT MAXIMUM HEIGHT
    46°

Engine

  • ENGINE
    Tier 4
  • COOLING
    Liquid
  • ENGINE FUEL
    Diesel
  • HORSEPOWER
    189 hp

Hydraulics

  • MAIN PUMP MAX FLOW RATE
    64.9 gal/min
  • MAIN PUMP PRESSURE
    3,844 psi
  • 3RD SPOOL MAX FLOW RATE
    66.0 gal/min
  • 3RD SPOOL PRESSURE
    4,351 psi

Operational

  • RATED OPERATING CAPACITY STRAIGHT
    13,682 lb
  • TIPPING LOAD STRAIGHT
    27,364 lb
  • RATED OPERATING CAPACITY ART.
    12,061 lb
  • TIPPING LOAD ART.
    24,121 lb
  • TRAVEL SPEED - FORWARD
    35.5 km/h
  • TRAVEL SPEED - REVERSE
    24.1 km/h
