Bobcat E19e
-
- Make
- Bobcat
-
- Category
- Bobcat Excavators, Electric
-
- Dig Depth
- 8.4 ft
-
- Width
- 38.6 in
-
- Weight
- 4,212 lb
-
- Battery Type
- Lithium Ion
-
- Gross Battery Capacity
- 17.28 kWh
-
- System Voltage
- 51.8 V
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo
E19e

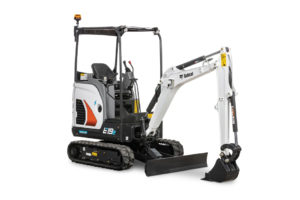

The all-electric Bobcat E19e compact excavator can work on small outdoor jobsites as well as indoors, where the alternative is manual labor, due to its small footprint, zero emissions and in-track swing frame. The increased cylinder size offers excellent lifting ability and breakout forces and the machine’s standard long-arm gives operators that added dig depth and reach. The 54-in wide undercarriage gives it a sturdy footprint when working, which can be hydraulically retracted to 39-in wide to enter tight spaces both inside and outdoors. The blade can also be retracted at each side.
Compact Excavator Literature:
Features
- Auxiliary Hydraulics
- Secondary Auxiliary Hydraulics
- Rubber Track
- On-Board Charger
Options
- Off-Board Charger
Popular Attachments
- Breaker
E19e
Dimensions
-
- LENGTH
- 150.1 in
-
- HEIGHT
- 90.5 in
-
- WIDTH
- 38.6 in
-
- WEIGHT
- 4,212 lb
Electrical System
-
- BATTERY TYPE
- Lithium Ion
-
- SYSTEM VOLTAGE
- 51.8 V
-
- GROSS BATTERY CAPACITY
- 17.28 kWh
-
- ESTIMATED RUN TIME
- 4h
-
- ON-BOARD CHARGE TIME - 120V
- 10-12h
-
- ON-BOARD CHARGE TIME - 240V
- 10-12h
-
- Off-Board Charge Time
- 2h
Hydraulics
-
- SYSTEM RELIEF PRESSURE
- 2,610 psi
-
- AUXILIARY STD FLOW
- 6.4 gal/min
Operational
-
- TRAVEL SPEED - HIGH
- 3.7 km/h
-
- TRAVEL SPEED - LOW
- 1.8 km/h
-
- ARM DIGGING FORCE
- 2,086 lbf
-
- BUCKET DIGGING FORCE
- 4,684 lbf
-
- MAX DIG DEPTH
- 8.4 ft
-
- MAX REACH AT GROUND LEVEL
- 13.8 ft
-
- MAX DUMP HEIGHT
- 8.4 ft
-
- RATED LIFT CAPACITY
- 1,028 lb
-
- LIFT RADIUS
- 118 in
-
- BOOM SWING RADIUS - LEFT
- 80°
-
- BOOM SWING RADIUS - RIGHT
- 60°
-
- TAIL SWING RADIUS
- Conventional
