Bobcat E38

E38

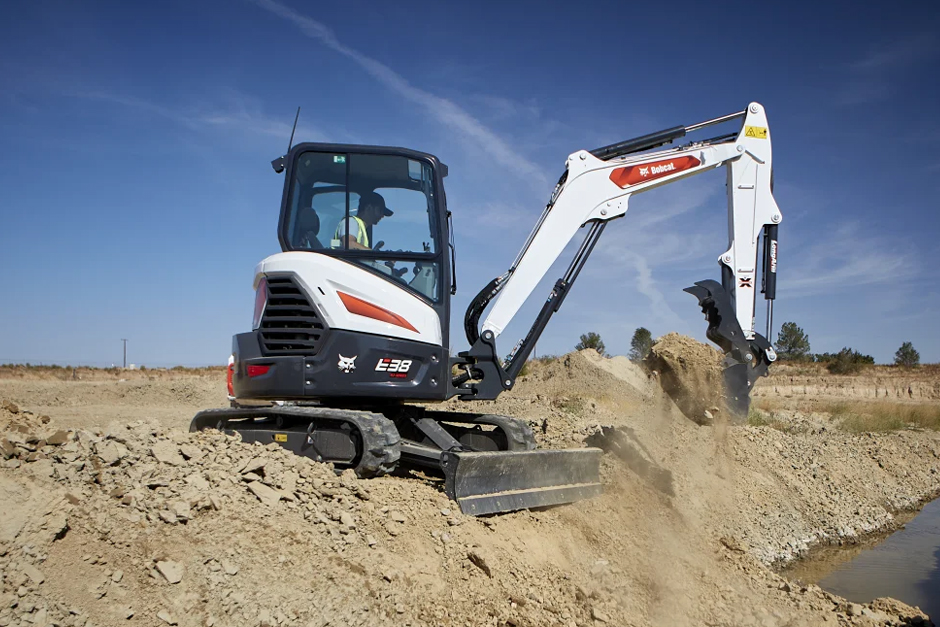

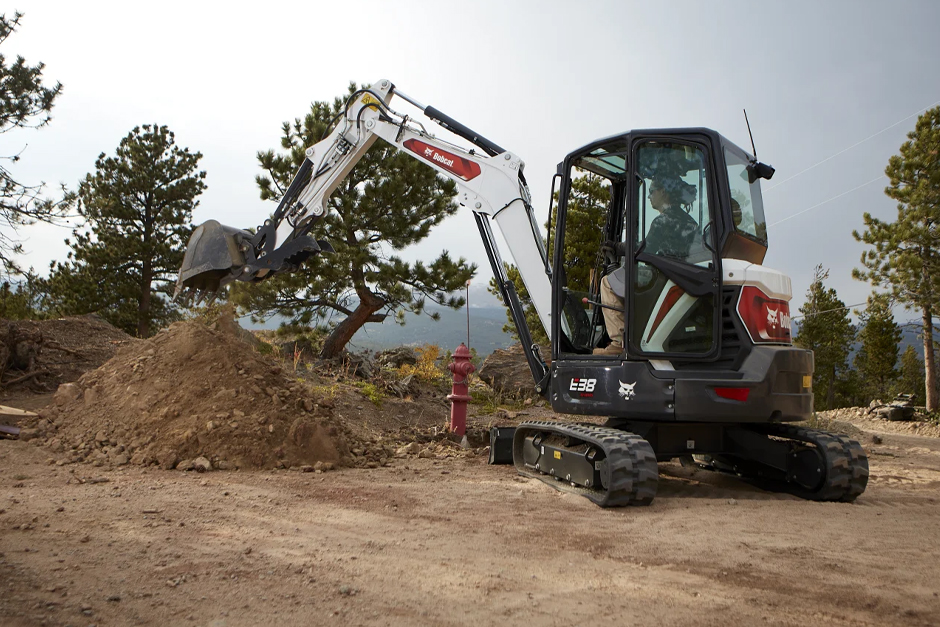

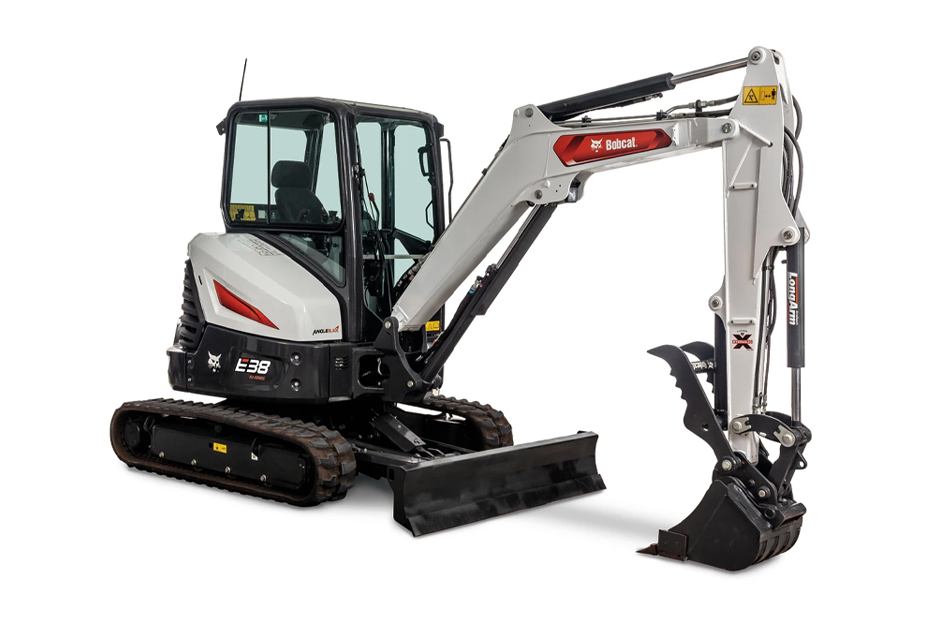

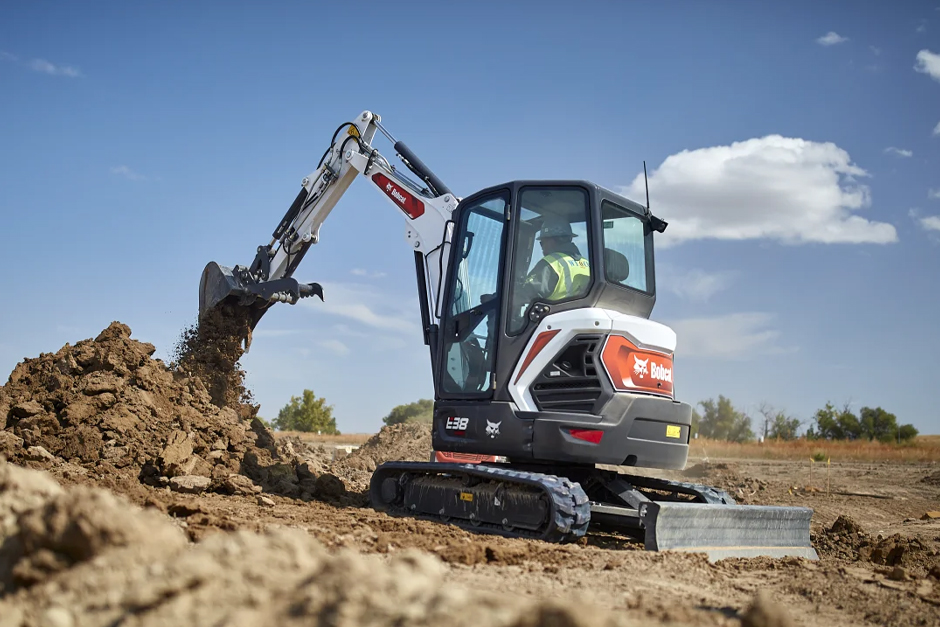

The Bobcat E38 compact excavator delivers leading horsepower and hydraulic performance in a zero-tail-swing design built for confined jobsites. Powered by a 33-horsepower engine, the E38 provides strong digging force, fast cycle times and smooth, predictable control for trenching, grading and material handling. Its zero-tail-swing configuration allows unrestricted rotation, making it ideal for working near structures, fences and other obstacles. Advanced hydraulics maximize working-range horsepower, while the integrated rear counterweight and dual-flange roller system enhance over-the-side lift capacity and stability. Optional configurations, including an extendable arm and angle blade, increase reach, grading efficiency and overall jobsite versatility.

Engineered for productivity and comfort, the Bobcat E38 mini excavator offers premium cab features designed to reduce fatigue and improve performance throughout long workdays. Operators can choose from an open canopy or enclosed cab with advanced technology, including compatibility with the Bobcat depth check system for accurate grade control without leaving the seat. Fingertip boom swing control, blade float and available 2-Speed travel with Auto-Shift provide smooth multifunction operation and improved mobility. A durable X-frame undercarriage, simplified maintenance access, greaseless boom swing cylinder pin joint and corrosion-resistant electrical components help reduce downtime and maximize uptime. For contractors seeking a zero-tail-swing compact excavator with high-performance hydraulics and operator-focused comfort, the E38 is built to accomplish more in less time.

Compact Excavator Literature:

Download Compact Excavator Brochure

Download Bobcat Attachments Catalogue

Features

• Swing Boom
• Auxiliary Hydraulics
• Engine Shutdown
• Quick-tach System
• Rubber Track
• Selectable Auxiliary Hydraulic Flow

Options

• Air Conditioning
• Cab Enclosure
• Radio
• Angle Blade

Popular Attachments

• Auger
• Clamp
• Breaker
• Hydra-Tilt
• Power-Tilt
• Plate Compactor

E38

Dimensions

• LENGTH

  190 in

• HEIGHT

  96.2 in

• WIDTH

  69.7 in

• WEIGHT

  7,893 lb

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  33 hp

• FUEL TANK CAPACITY

  13.7 gal

• FUEL TYPE

  Diesel

Hydraulics

• SYSTEM RELIEF PRESSURE

  2,987 psi

• AUXILIARY STD FLOW

  16.9 gal/min

Operational

• TRAVEL SPEED - HIGH

  4.7 km/h

• TRAVEL SPEED - LOW

  2.6 km/h

• ARM DIGGING FORCE

  4,690 lbf

• BUCKET DIGGING FORCE

  7,284 lbf

• MAX DIG DEPTH

  11.1 ft

• MAX REACH AT GROUND LEVEL

  17 ft

• MAX DUMP HEIGHT

  11.4 ft

• RATED LIFT CAPACITY

  3,318 lb

• LIFT RADIUS

  118 in

• BOOM SWING RADIUS - LEFT

  75°

• BOOM SWING RADIUS - RIGHT

  55°

• TAIL SWING RADIUS

  Zero
