Bobcat E60

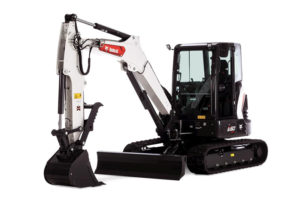

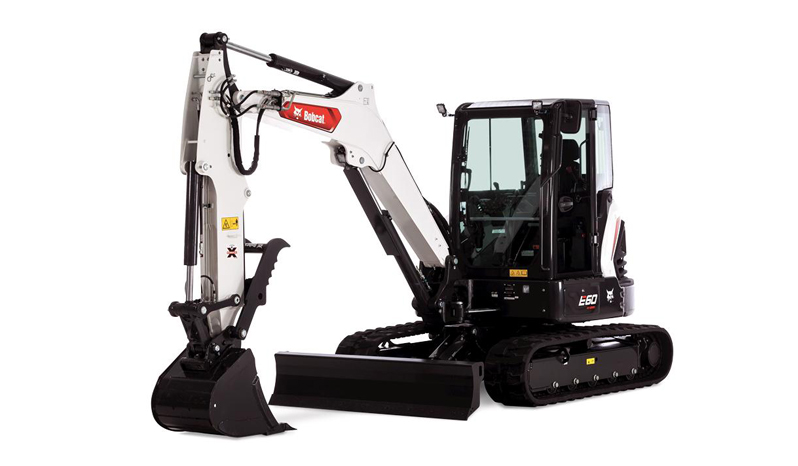

E60 Compact Excavator

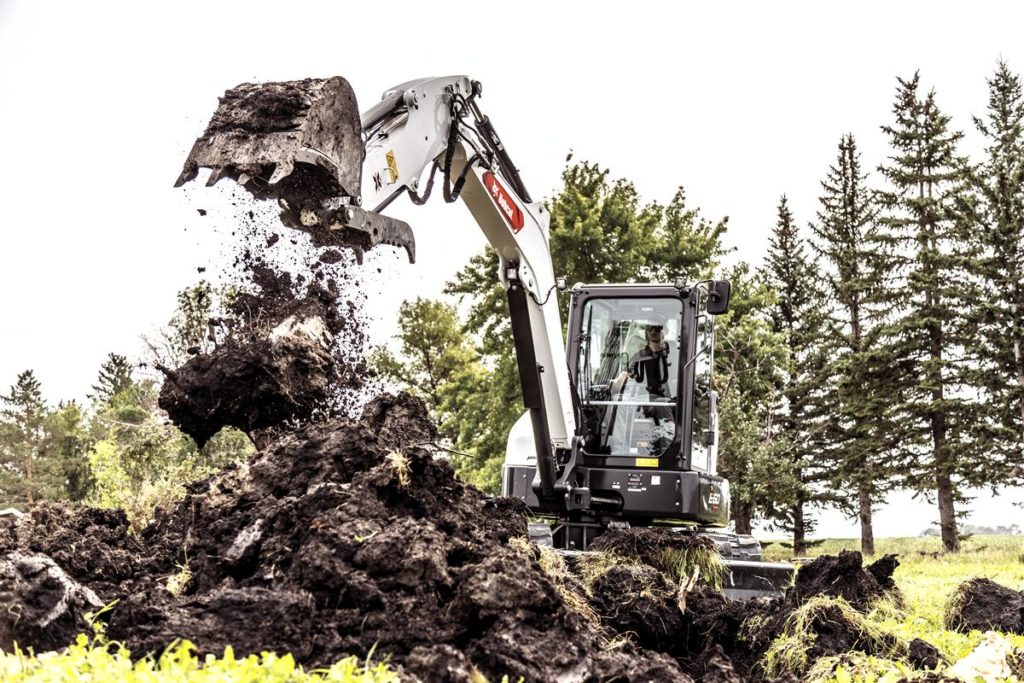

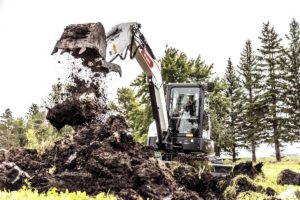

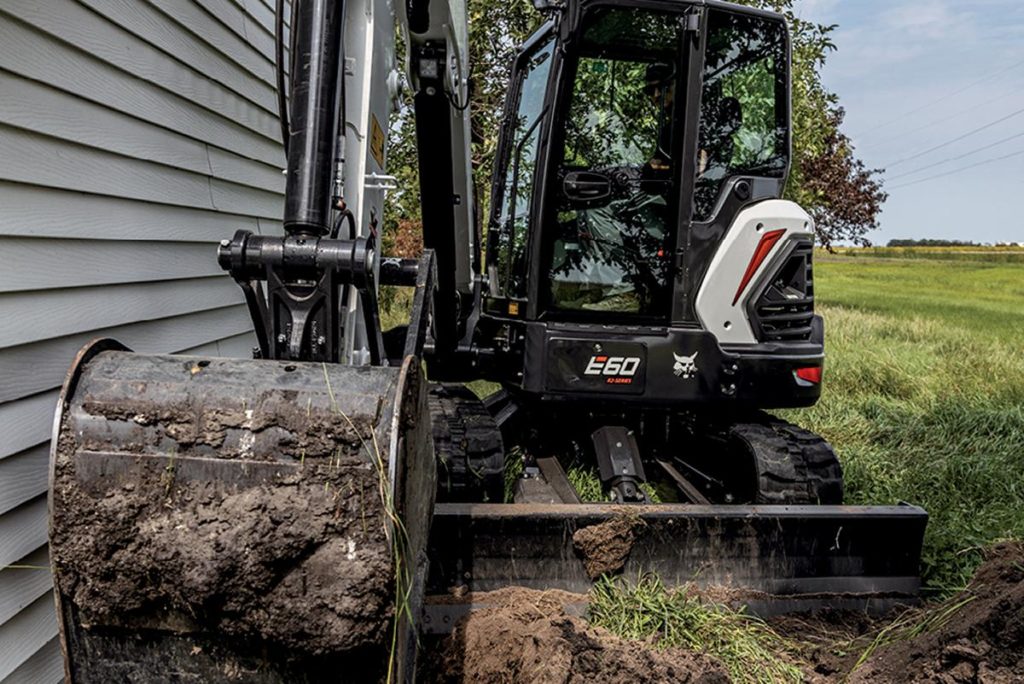

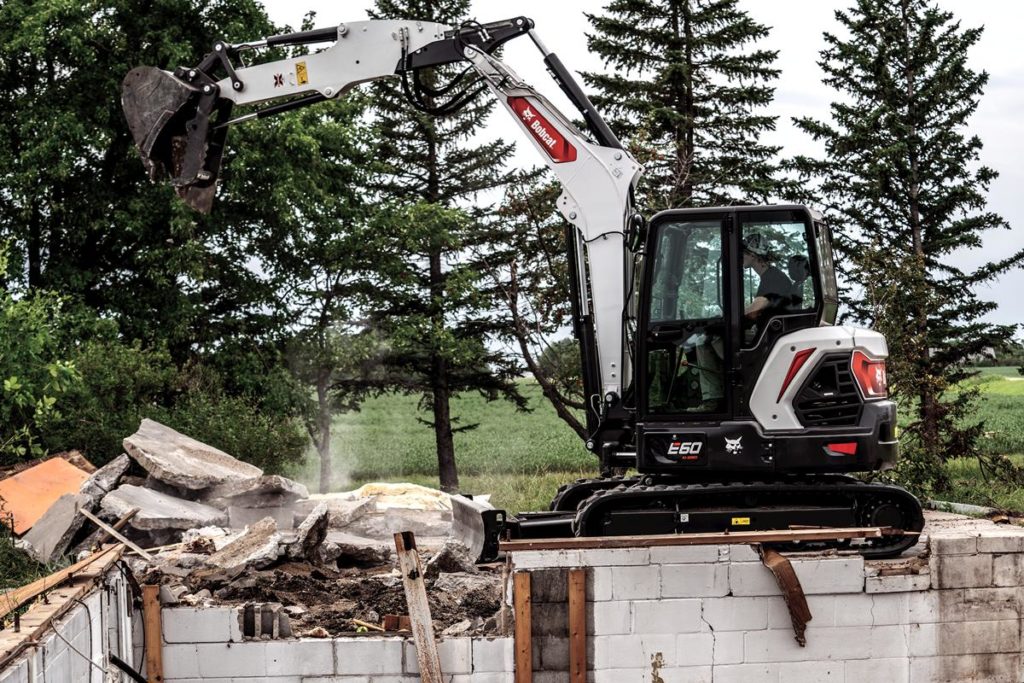

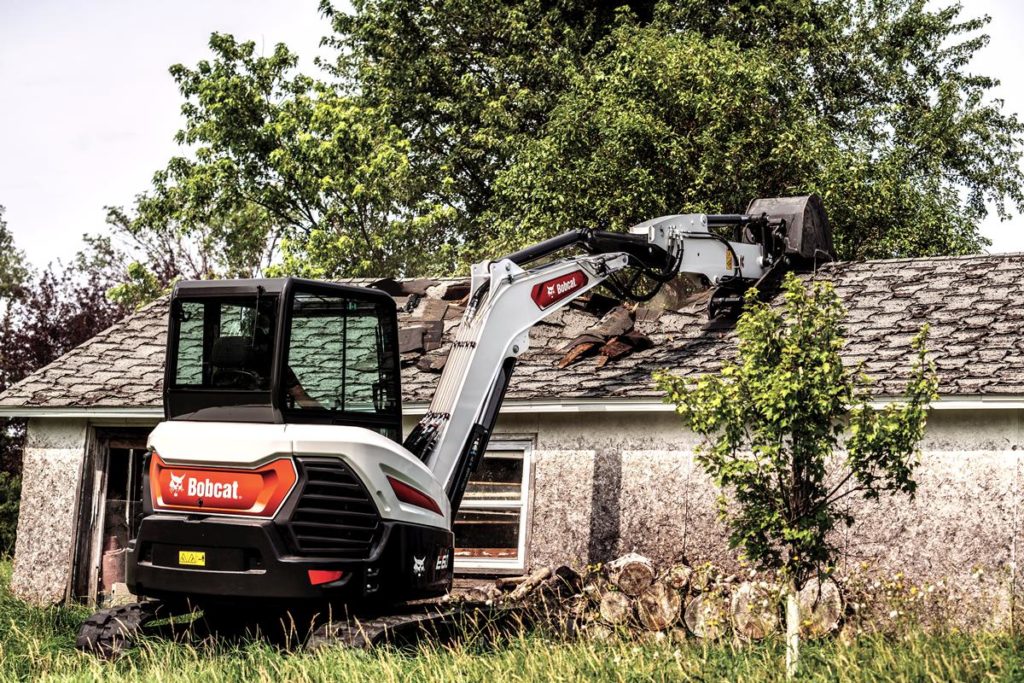

The Bobcat E60 compact excavator delivers powerful performance in a 6-ton mini excavator built for demanding construction, utility and site development work. With a conventional tail-swing design, maximized lift capacity and strong over-the-side digging performance, the E60 gives operators the stability and strength needed for heavy trenching, lifting and grading tasks. Powered by a reliable, non-DPF Bobcat engine, this compact excavator reduces maintenance complexity while delivering impressive hydraulic performance and cold-weather reliability. Dual-flange track rollers enhance slewing stability and ride quality, while the optional angle blade with blade float simplifies backfilling and fine grading for faster job completion.

Designed for productivity and operator comfort, the Bobcat E60 features a spacious cab with ergonomic controls, low-effort joysticks and excellent visibility. Operators can choose from an open canopy or enclosed cab with advanced options such as a touch display, rearview camera and the Bobcat depth check system for precise grade control without leaving the seat. Extended service intervals — including moving from 500-hour to 750-hour service — and larger fuel filters help maximize uptime and reduce routine maintenance. With available features like an extendable arm and integrated lift eye for material handling, the E60 compact excavator combines power, precision and long-term durability for professionals who expect more from their equipment.

Compact Excavator Literature:

Download Compact Excavator Brochure

Download Bobcat Attachments Catalogue

Features

• Swing Boom
• Engine Shutdown
• Auxiliary Hydraulics
• Quick Tach System
• Rubber Track
• Selectable Auxiliary Hydraulic Flow

Options

• Air Conditioning
• Cab Enclosure
• Heater Air Conditioning
• Radio
• Secondary Auxiliary Hydraulics
• Angle Blade

Popular Attachments

• Auger
• Clamp
• Breaker
• Hydra-Tilt
• Power-Tilt
• Plate Compactor

E60 Compact Excavator

Dimensions

• LENGTH

  218.3 in

• HEIGHT

  100.1 in

• WIDTH

  77.2 in

• WEIGHT

  12,315 lb

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  55 hp

• FUEL TANK CAPACITY

  19 gal

• FUEL TYPE

  Diesel

Hydraulics

• SYSTEM RELIEF PRESSURE

  3,045 psi

• AUXILIARY STD FLOW

  20 gal/min

Performance

• TRAVEL SPEED - HIGH

  4.5 km/h

• TRAVEL SPEED - LOW

  2.9 km/h

• ARM DIGGING FORCE

  6,446 lbf

• BUCKET DIGGING FORCE

  10,261 lbf

• MAX DIG DEPTH

  13.1 ft

• MAX REACH AT GROUND LEVEL

  20.5 ft

• MAX DUMP HEIGHT

  14.3 ft

• RATED LIFT CAPACITY

  6,411 lb

• LIFT RADIUS

  118 in

• BOOM SWING RADIUS - LEFT

  75°

• BOOM SWING RADIUS - RIGHT

  50°

• TAIL SWING RADIUS

  Conventional

Extendable-Arm Option

• WEIGHT

  12,646 lb

• MAX DIG DEPTH

  14.8 ft

• MAX REACH AT GROUND LEVEL

  22.1 ft

• MAX DUMP HEIGHT

  15.2 ft
