Bobcat E35
-
- Make
- Bobcat
-
- Dig Depth
- 10.2 ft
-
- Width
- 69 in
-
- Weight
- 8,377 lb
-
- Engine
- Tier 4
-
- Fuel Type
- Diesel
E35

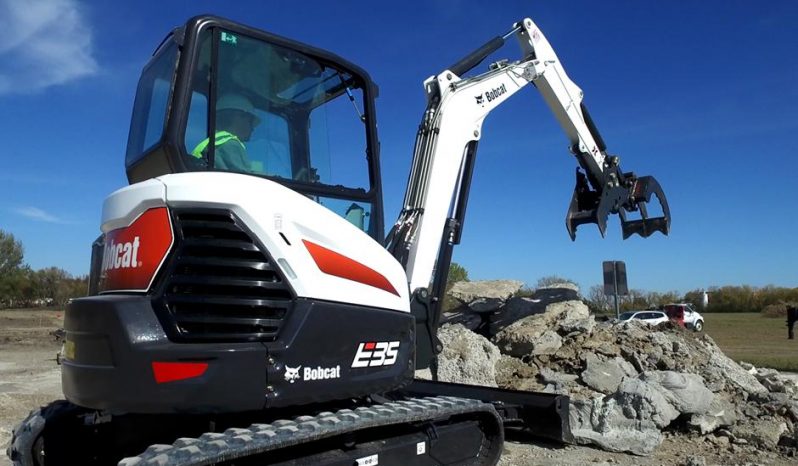

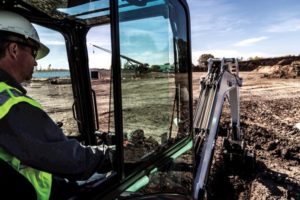

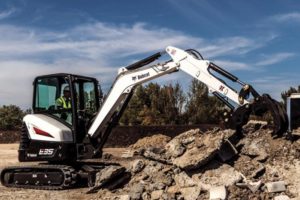

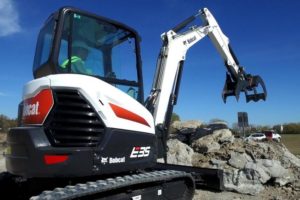

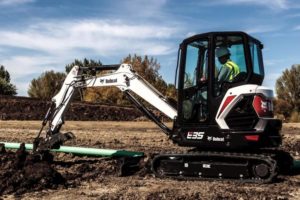

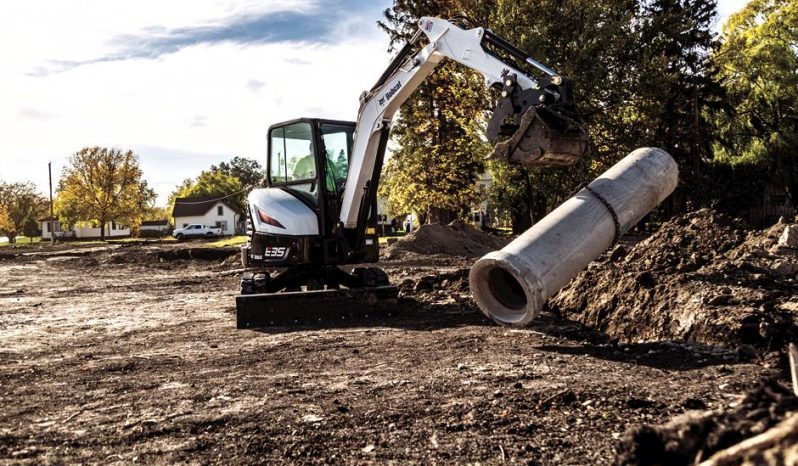

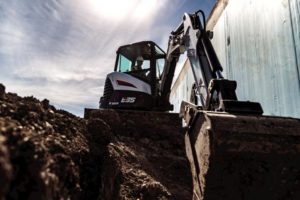

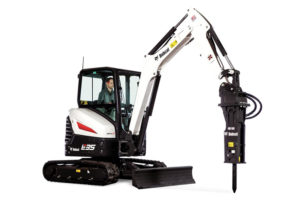

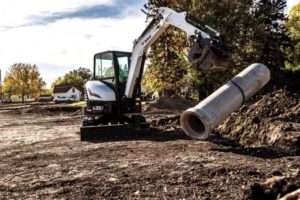

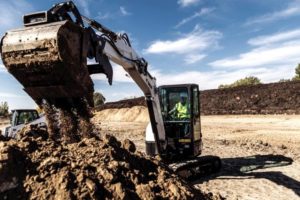

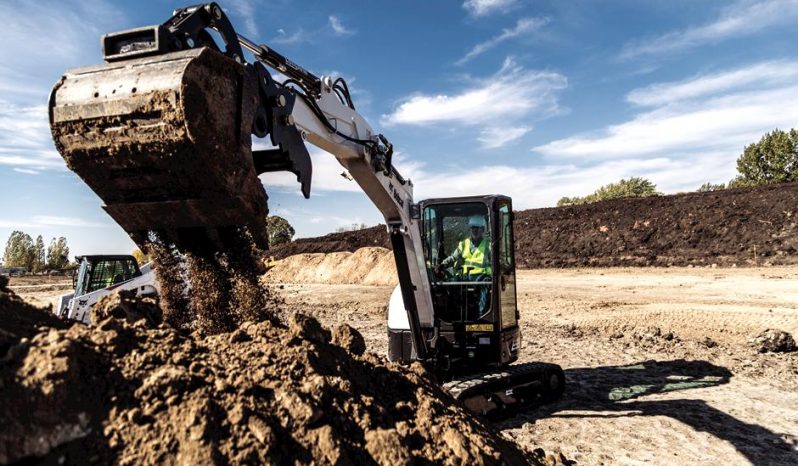

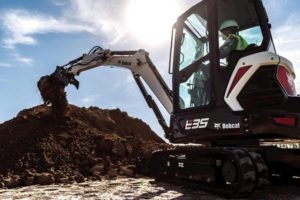

Part of the R-Series, the Bobcat® E35 compact (mini) excavator is a popular choice in the 3-ton size class. Zero Tail Swing (ZTS) provides unrestricted rotation, greater flexibility and reduced potential for damage to the machine and surrounding property. It’s available with an angle blade option, long arm option or clamp-ready extendable arm option. Upgrade to an optional 33 hp engine for even more productivity.
Pricing
- Daily Cost: Request a Quote
- Weekly Cost: Request a Quote
- Monthly Cost: Request a Quote
Features
- Auxiliary Hydraulics
- Engine Shutdown
- Quick-Tach System
- Rubber Track
- Selectable Auxiliary Hydraulic Flow
Frequently Rented With
- Auger
- Clamp

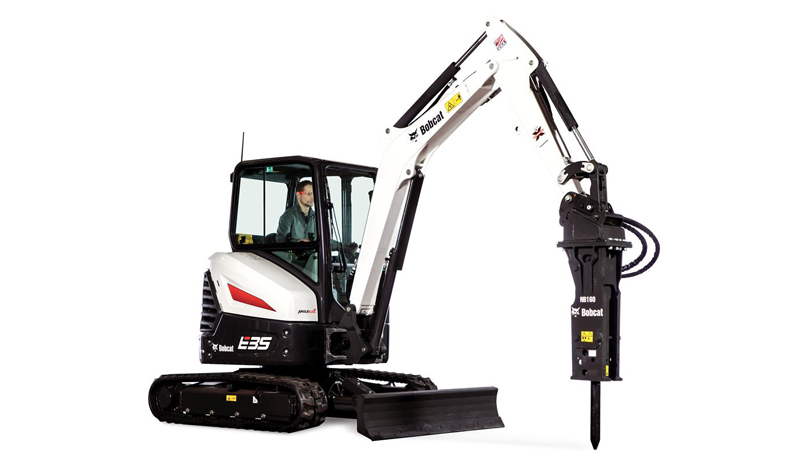

- Breaker
- Hydra-Tilt
- Power-Tilt
- Ripper
E35
Dimensions
-
- LENGTH
- 189.9 in
-
- HEIGHT
- 96.2 in
-
- WIDTH
- 69 in
-
- WEIGHT
- 8,377 lb
Engine
-
- ENGINE
- Tier 4
-
- HORSEPOWER
- 24.8 hp
-
- FUEL TANK CAPACITY
- 13.7 gal
-
- FUEL TYPE
- Diesel
Hydraulics
-
- SYSTEM RELIEF PRESSURE
- 2,987 psi
-
- AUXILIARY STD FLOW
- 16.9 gal/min
Operational
-
- TRAVEL SPEED - HIGH
- 4.7 km/h
-
- TRAVEL SPEED - LOW
- 2.6 km/h
-
- ARM DIGGING FORCE
- 4,859 lbf
-
- BUCKET DIGGING FORCE
- 6,968 lbf
-
- MAX DIG DEPTH
- 11.2 ft
-
- MAX REACH AT GROUND LEVEL
- 18.1 ft
-
- MAX DUMP HEIGHT
- 11.6 ft
-
- RATED LIFT CAPACITY
- 3,232 lb
-
- LIFT RADIUS
- 118 in
-
- BOOM SWING RADIUS - LEFT
- 75°
-
- BOOM SWING RADIUS - RIGHT
- 55°
-
- TAIL SWING RADIUS
- Zero
