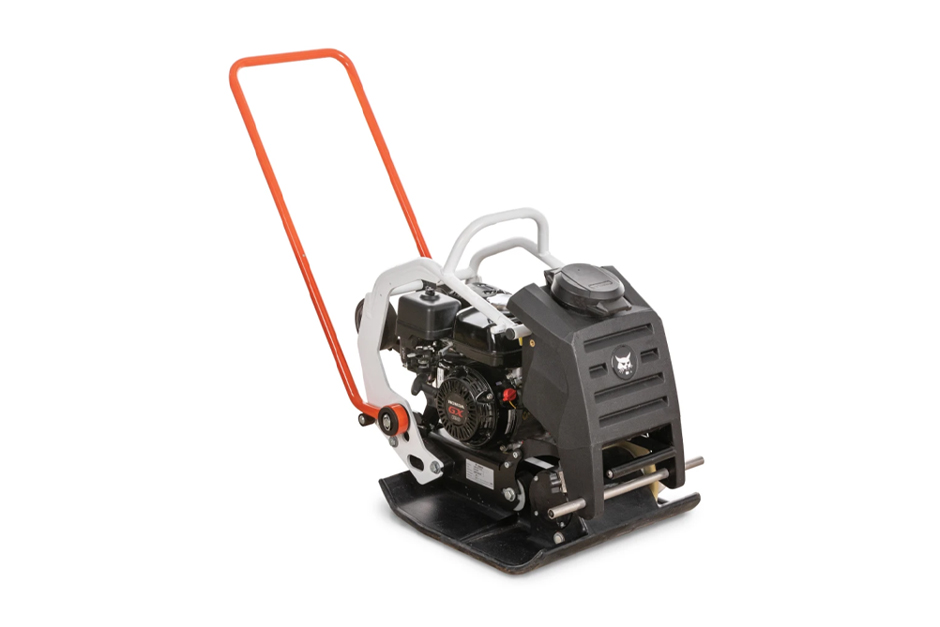

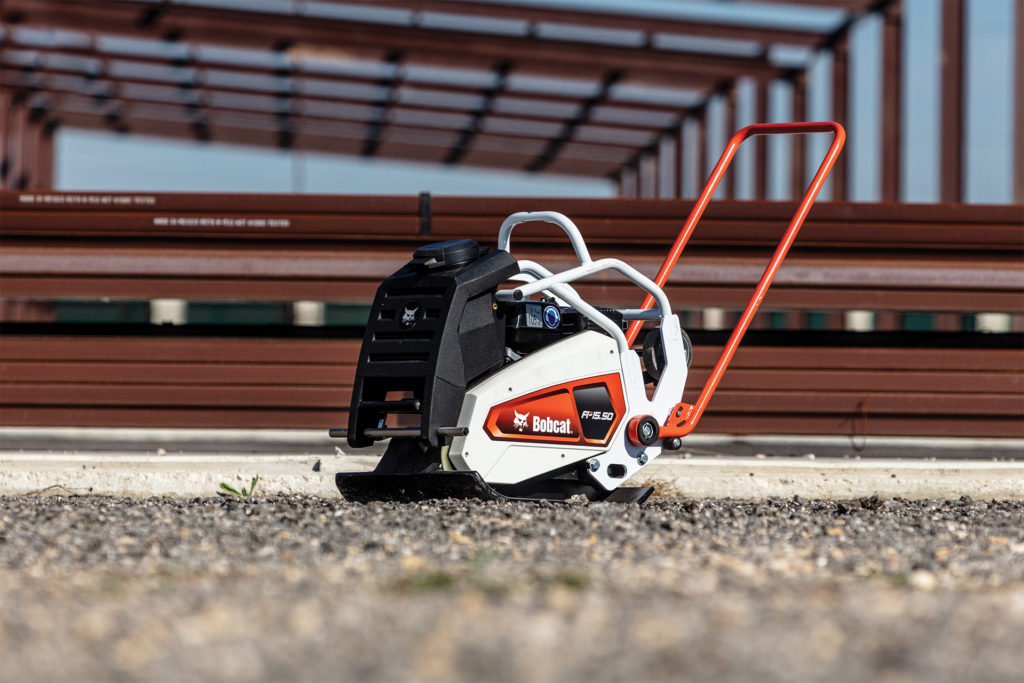

Bobcat FP15.50 Forward Plate Compactor
-
- Make
- Bobcat
-
- Length
- 28 in
-
- Width
- 20 in
-
- Horsepower
- 3.5 hp
-
- Centrifugal Force
- 3,372 lbf
-
- Height
- 26 in
FP15.50 Forward Plate Compactor Rental

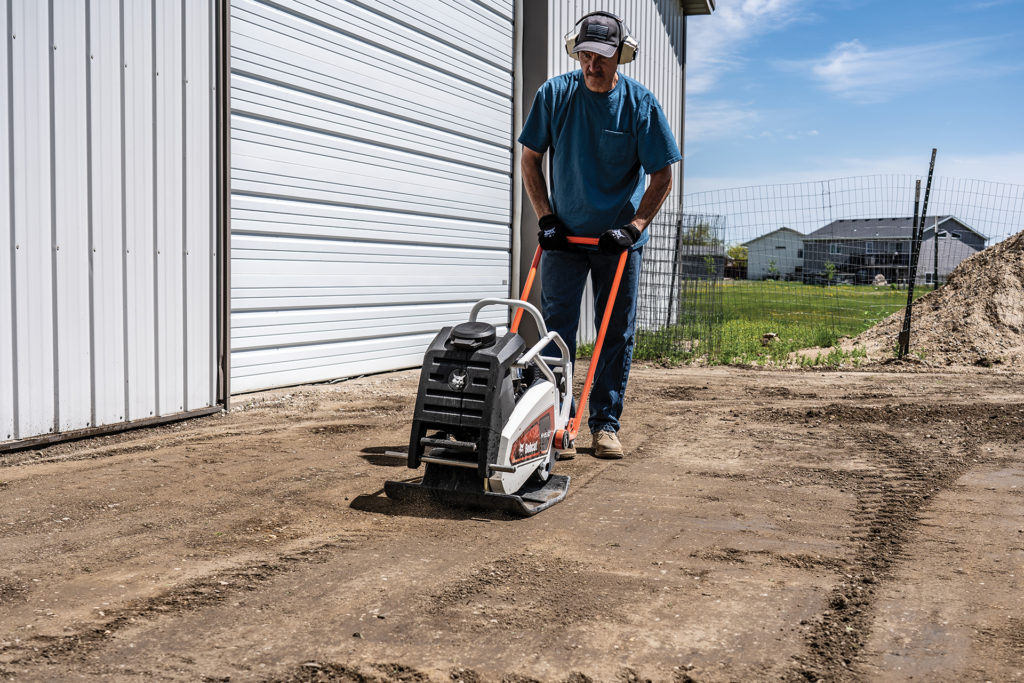

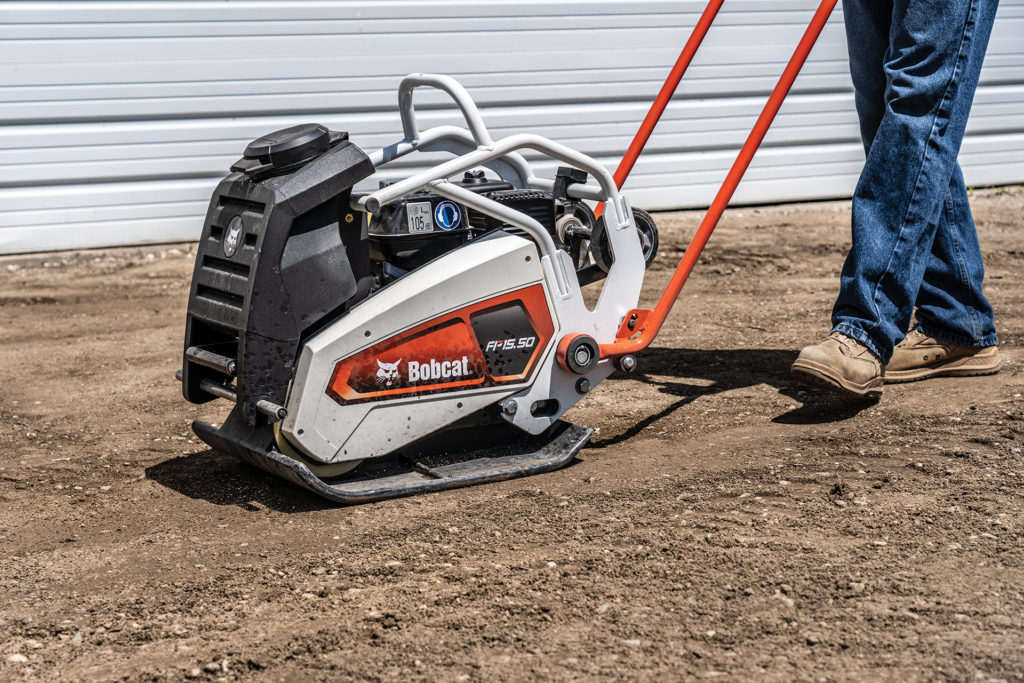

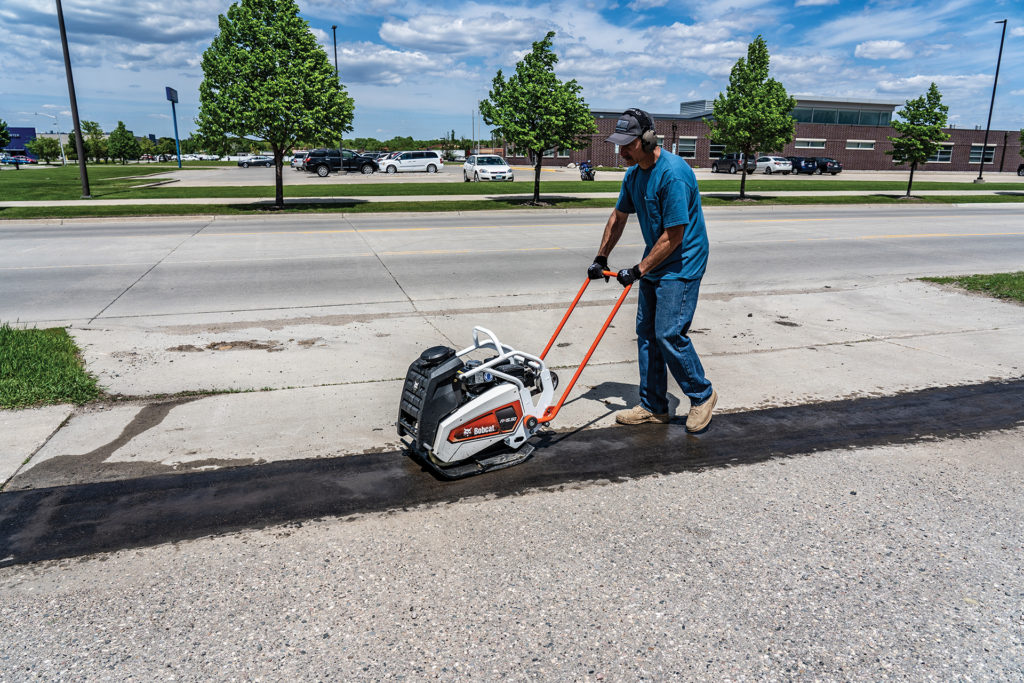

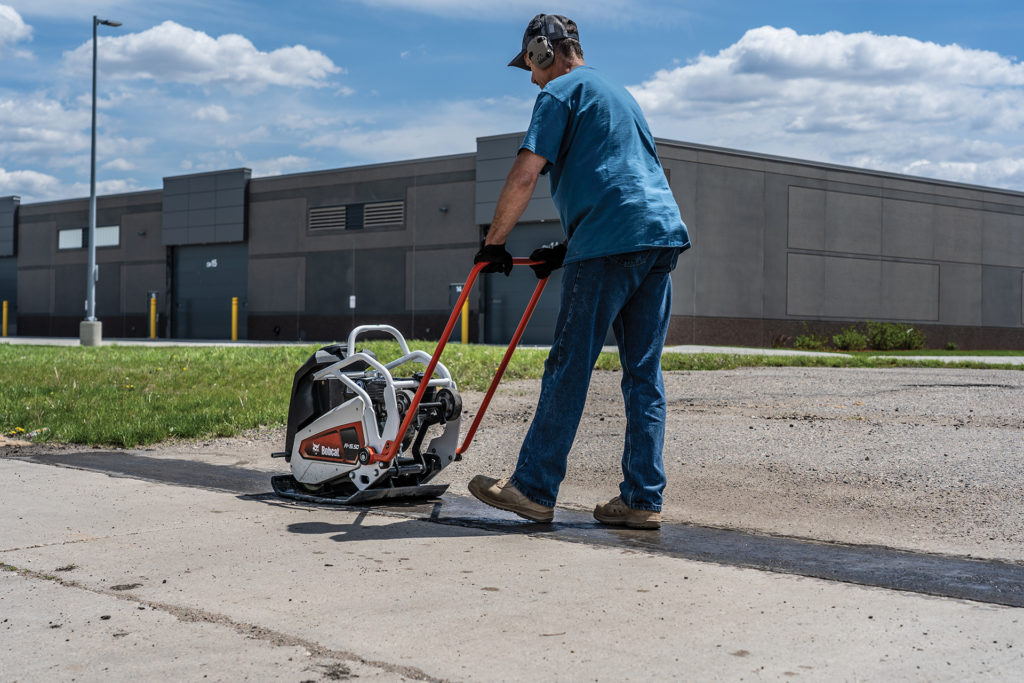

The Bobcat FP15.50 forward plate compactor is a versatile and efficient rental solution for a wide range of compaction applications, including landscaping, asphalt work, and general construction. Built to deliver consistent, high-quality compaction results, it features a durable one-piece cast base plate that eliminates weak connection points and is reinforced in high-wear areas for long-lasting performance.

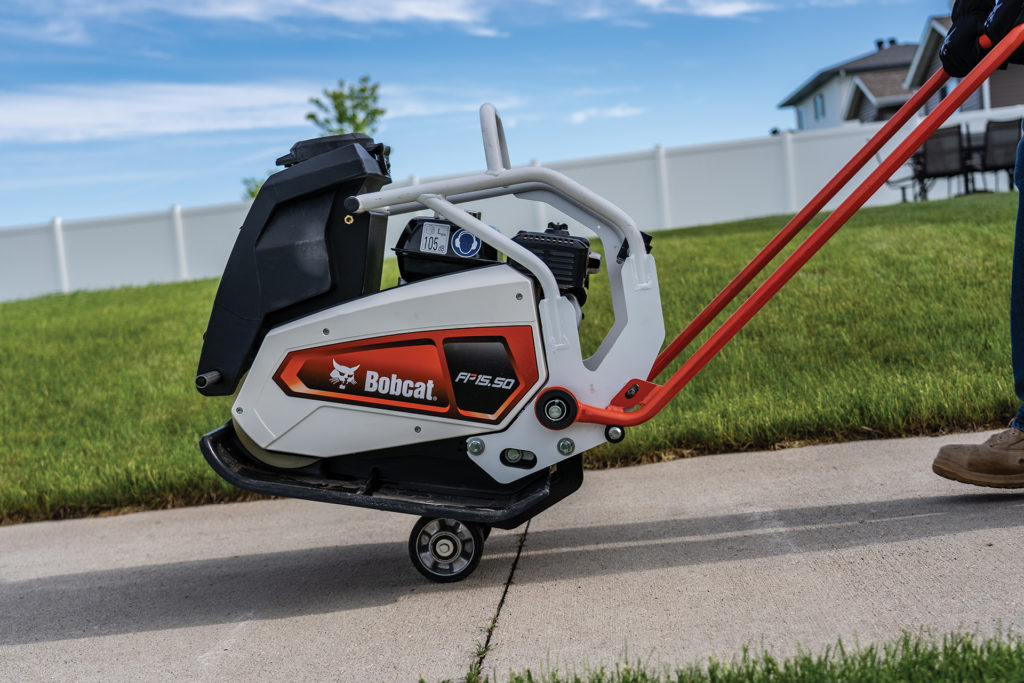

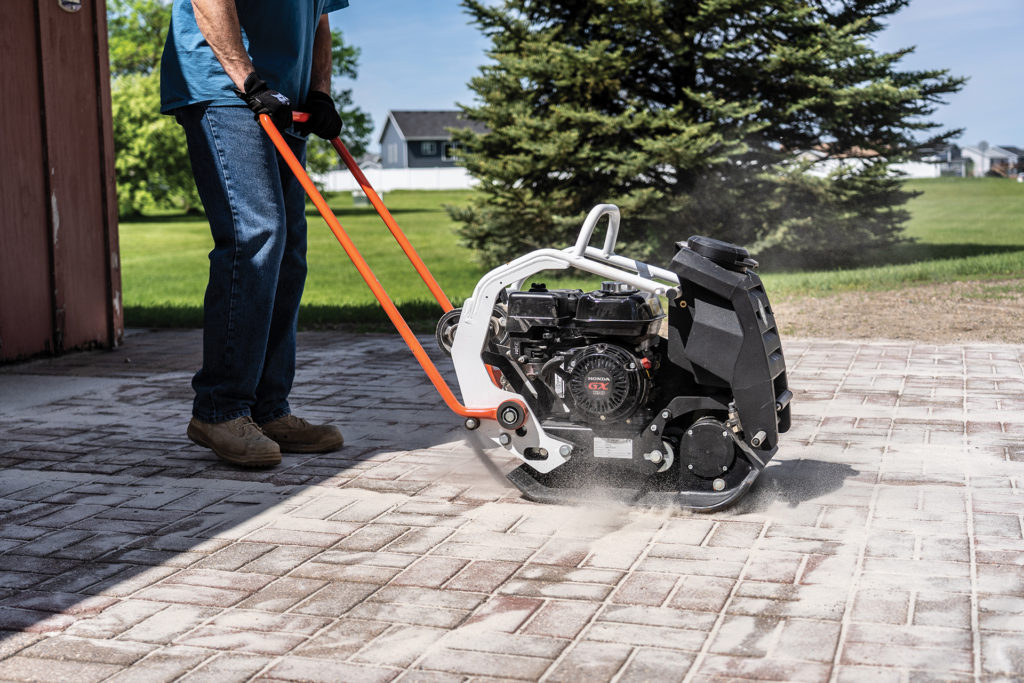

Designed with rental users in mind, the FP15.50 helps reduce operator fatigue by isolating vibration from the handle, making it more comfortable for extended use on the job. Standard features like the integrated water tank and sprinkler system help control dust and prevent asphalt buildup, while optional toolless transport wheels and a central lift bar make it easy to move between jobsites. Whether for short-term projects or ongoing work, this plate compactor offers reliable performance and convenience in a compact, rental-ready package.
Rental Term Options
(Select an option below for a quote.)Daily rental options are currently available.
Request a quote and our team will be in contact with you shortly.
Features
- Industry-Leading Forward Design
- Reliable Engine Performance
- Convenient Lift Bar
- Minimized Hand-Arm Vibration
- Casted, One-Piece Plate
- Material-Shedding Base Plate
FP15.50 Forward Plate Compactor Rental
Dimensions
-
- LENGTH
- 28 in
-
- WIDTH
- 20 in
-
- HEIGHT
- 26 in
-
- GRADEABILITY
- 30%
-
- MAX INCLINE
- 20°
-
- GROUND CONTACT LENGTH
- 13.9 in
Engine
-
- ENGINE MODEL
- GX120
-
- ENGINE MAKE
- Honda
-
- HORSEPOWER
- 3.5 hp
Performance
-
- VIBRATION FREQUENCY
- 100 Hz
-
- TRAVEL SPEED
- 1.5 km/h
Compaction Forces
-
- CENTRIFUGAL FORCE
- 3,372 lbf
-
- AMPLITUDE
- 0.1 in
-
- SURFACE CAPACITY
- 7,750 ft²/h
-
- VIBRATION ON HANDLE
- <8.2 ft/s²
-
- SURFACE PRESSURE
- 12.3 psi
