Bobcat L235

L235

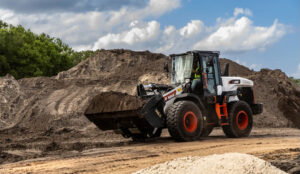

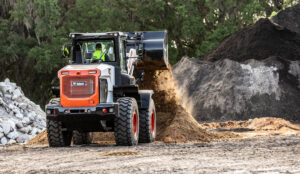

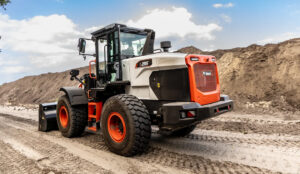

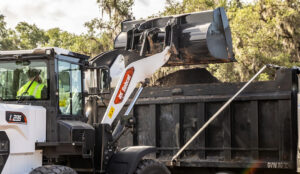

Built for serious productivity, the Bobcat L235 large wheel loader combines high lifting capabilities with advanced operator features. With a 159 hp Tier 4 engine and up to 4.5 yd³ of bucket capacity, it moves heavy material with ease while maintaining tight maneuverability. The machine includes three transmission modes and three power modes for optimal performance in any condition. Inside the cab, operators will appreciate the 8-inch touchscreen display, automatic HVAC, ergonomic joystick controls, and auto ride control. Backed by non-DPF engine design and simplified maintenance access, the L235 is built for power, uptime, and comfort on long workdays.

Large Wheel Loader Literature:

Download Large Wheel Loader Brochure

Download Bobcat Attachments Catalog

Features

  • Enclosed Cab with HVAC
  • Air Suspension Seat
  • Joystick Controls
  • Keyless Start with Key Fob
  • Rear View Camera
  • 8" Touch Display
  • Bluetooth Connectivity
  • Ride Control
  • Return-to-Dig
  • Inching Control
  • Auto Idle & Auto Shutdown
  • LED Work Lights
  • Auxiliary Hydraulics
  • Z-Bar Linkage
  • Powershift Transmission (4F/3R)
  • Centralized Grease Points
  • 40° Articulation

Options

  • Quick Coupler
  • High-Flow Hydraulics
  • Heated Seat
  • Radio
  • Rotating Beacon
  • Full Rear Fenders
  • Additional Lighting
  • Counterweight Kit
  • Power Bob-Tach
  • Payload Weighing System
  • Tire Packages

L235

Main

  • ROC
    11,926 lb
  • Width
    100.4 in
  • Horsepower
    159 hp
  • Engine
    Tier 4
  • Fuel Type
    Diesel

Dimensions

  • LENGTH
    256.6 in
  • LENGTH WITH BUCKET
    307.6 in
  • HEIGHT
    130.3 in
  • WIDTH
    100.4 in
  • WEIGHT
    29,488 lb
  • ARTICULATION ANGLE
    40°
  • TURNING RADIUS INSIDE
    236.4 in
  • TURNING RADIUS OUTSIDE
    212.7 in
  • WHEELBASE
    120 in
  • HEIGHT TO BUCKET HINGE PIN
    151.5 in
  • TIRE SIZE
    20.5R25 L3
  • GROUND CLEARANCE
    17 in
  • ROLLBACK ANGLE
    48°
  • DUMP ANGLE AT MAXIMUM HEIGHT
    48°

Engine

  • ENGINE
    Tier 4
  • COOLING
    Liquid
  • ENGINE FUEL
    Diesel
  • HORSEPOWER
    159 hp

Hydraulics

  • MAIN PUMP MAX FLOW RATE
    40.9 gal/min
  • MAIN PUMP PRESSURE
    3,626 psi
  • 3RD SPOOL MAX FLOW RATE
    40.9 gal/min
  • 3RD SPOOL PRESSURE
    4,061 psi

Operational

  • RATED OPERATING CAPACITY STRAIGHT
    11,926 lb
  • TIPPING LOAD STRAIGHT
    23,853 lb
  • RATED OPERATING CAPACITY ART.
    10,512 lb
  • TIPPING LOAD ART.
    21,025 lb
  • TRAVEL SPEED - FORWARD
    38.9 km/h
  • TRAVEL SPEED - REVERSE
    29.9 km/h
