Bobcat L235
-
- Make
- Bobcat
-
- Category
- Bobcat Compact Wheel Loaders
-
- ROC
- 11,926 lb
-
- Width
- 100.4 in
-
- Horsepower
- 159 hp
-
- Engine
- Tier 4
-
- Fuel Type
- Diesel
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo

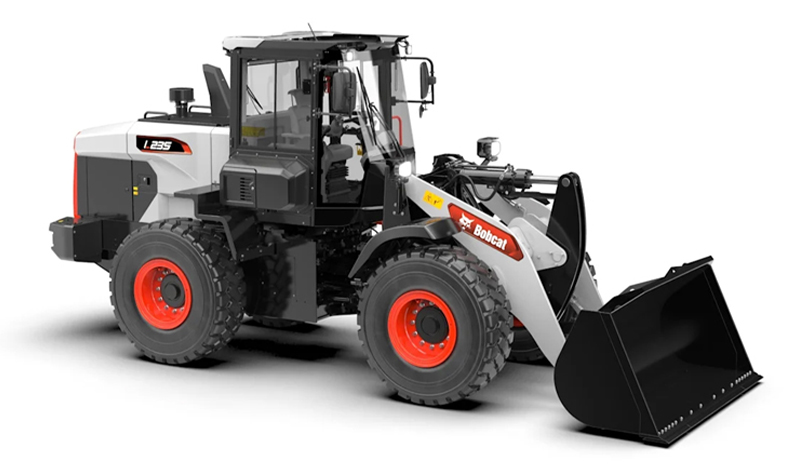

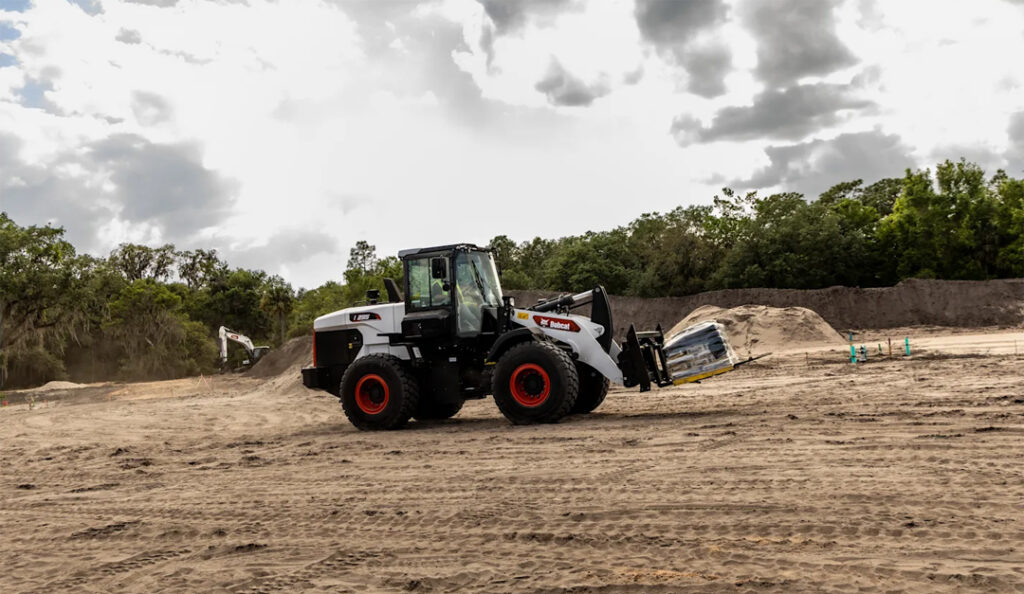

L235
Built for serious productivity, the Bobcat L235 large wheel loader combines high lifting capabilities with advanced operator features. With a 159 hp Tier 4 engine and up to 4.5 yd³ of bucket capacity, it moves heavy material with ease while maintaining tight maneuverability. The machine includes three transmission modes and three power modes for optimal performance in any condition. Inside the cab, operators will appreciate the 8-inch touchscreen display, automatic HVAC, ergonomic joystick controls, and auto ride control. Backed by non-DPF engine design and simplified maintenance access, the L235 is built for power, uptime, and comfort on long workdays.
Large Wheel Loader Literature:
Features
- Enclosed Cab with HVAC
- Air Suspension Seat
- Joystick Controls
- Keyless Start with Key Fob
- Rear View Camera
- 8" Touch Display
- Bluetooth Connectivity
- Ride Control
- Return-to-Dig
- Inching Control
- Auto Idle & Auto Shutdown
- LED Work Lights
- Auxiliary Hydraulics
- Z-Bar Linkage
- Powershift Transmission (4F/3R)
- Centralized Grease Points
- 40° Articulation
Options
- Quick Coupler
- High-Flow Hydraulics
- Heated Seat
- Radio
- Rotating Beacon
- Full Rear Fenders
- Additional Lighting
- Counterweight Kit
- Power Bob-Tach
- Payload Weighing System
- Tire Packages
Popular Attachments
- General-Purpose Bucket
- Grapple Bucket
- Light Material Bucket
- Pallet Forks
- Snow Pusher
- Angle Broom
- Hydraulic Breaker
L235
Dimensions
-
- LENGTH
- 256.6 in
-
- LENGTH WITH BUCKET
- 307.6 in
-
- HEIGHT
- 130.3 in
-
- WIDTH
- 100.4 in
-
- WEIGHT
- 29,488 lb
-
- ARTICULATION ANGLE
- 40°
-
- TURNING RADIUS INSIDE
- 236.4 in
-
- TURNING RADIUS OUTSIDE
- 212.7 in
-
- WHEELBASE
- 120 in
-
- HEIGHT TO BUCKET HINGE PIN
- 151.5 in
-
- TIRE SIZE
- 20.5R25 L3
-
- GROUND CLEARANCE
- 17 in
-
- ROLLBACK ANGLE
- 48°
-
- DUMP ANGLE AT MAXIMUM HEIGHT
- 48°
Engine
-
- ENGINE
- Tier 4
-
- COOLING
- Liquid
-
- ENGINE FUEL
- Diesel
-
- HORSEPOWER
- 159 hp
Hydraulics
-
- MAIN PUMP MAX FLOW RATE
- 40.9 gal/min
-
- MAIN PUMP PRESSURE
- 3,626 psi
-
- 3RD SPOOL MAX FLOW RATE
- 40.9 gal/min
-
- 3RD SPOOL PRESSURE
- 4,061 psi
Operational
-
- RATED OPERATING CAPACITY STRAIGHT
- 11,926 lb
-
- TIPPING LOAD STRAIGHT
- 23,853 lb
-
- RATED OPERATING CAPACITY ART.
- 10,512 lb
-
- TIPPING LOAD ART.
- 21,025 lb
-
- TRAVEL SPEED - FORWARD
- 38.9 km/h
-
- TRAVEL SPEED - REVERSE
- 29.9 km/h
