Angle Broom

Sweep a clean path easily and efficiently with Bobcat’s angle broom attachment. Its hydraulically-driven, rotating broom pushes dirt and other debris ahead of the machine or angle the broom to toss materials to the side. It can also rotate in reverse to pull toward the machine, leaving behind clean corners and angles. The broom bristles have a waved design, delivering more surface clearing ability which clears a cleaner path and can sweep more snow or debris in one pass. The attachment is compact, maneuverable and easy to operate, replacing manual labor and hand brooms.



Used For

  • Clearing away dirt, dried mud & other debris
  • Light snow removal
  • Sidewalks, parking lots, loading docks & warehouses

Features

  • Self-centering hydraulic angling: Keep the attachment centered on the machine and avoid offset.
  • Easy Maintenance: Quick-change rotor design makes bristle replacement quick and easy.
  • Angle Control Small: The smaller broom has manual angle up to 30° left or right.
  • Angle Control Large: The larger brooms feature electric-over-hydraulic control to provide up to 25° of angle adjustment to the left or right.
  • Fingertip Controls: Finish the job quickly without having to leave the cab.
  • High-Torque Motor: Allows for maximum power for more efficient sweeping.
  • Storage Stands: Larger brooms include storage stands to eliminate bristle distortion when the broom is not in use.
  • Patented Spring Design: Provides optimum down-pressure. (not available on 48-in)
  • Bristles: Proven, replaceable, wafer polypropylene bristles provide excellent life and clean ability.

Angle Broom

Angle Broom - 48"

  • WEIGHT
    260 lb
  • LENGTH
    47 in
  • WIDTH
    55 in
  • HEIGHT
    23 in
  • BRISTLE MATERIAL
    Replaceable Polypropylene
  • BROOM ANGLING
    Manual
  • BROOM BRISTLE DIAMETER
    21.4 in
  • DRIVE SYSTEM
    Hyd. Motor Chain Drive Reduction
  • OSCILLATION
    Fixed
  • SWEEP WIDTH (FULLY ANGLED)
    41.5 in
  • SWEEP WIDTH (STRAIGHT)
    48 in
  • NUMBER OF BRISTLE SECTIONS - ZIG ZAG
    23
  • NUMBER OF BRISTLE SECTIONS - STRAIGHT
    2
  • SWEEP WIDTH (FULLY ANGLED)
    30°

Angle Broom - 68"

  • WEIGHT
    860 lb
  • LENGTH
    66 in
  • WIDTH
    79 in
  • HEIGHT
    33 in
  • BRISTLE MATERIAL
    Replaceable Polypropylene
  • BROOM ANGLING
    Manual
  • BROOM BRISTLE DIAMETER
    32 in
  • DRIVE SYSTEM
    Hyd. Motor Chain Drive Reduction
  • OSCILLATION
    Fixed
  • SWEEP WIDTH (FULLY ANGLED)
    63 in
  • SWEEP WIDTH (STRAIGHT)
    68 in
  • NUMBER OF BRISTLE SECTIONS - ZIG ZAG
    36
  • NUMBER OF BRISTLE SECTIONS - STRAIGHT
    2
  • SWEEP WIDTH (FULLY ANGLED)
    25°

Angle Broom - 84"

  • WEIGHT
    944 lb
  • LENGTH
    66 in
  • WIDTH
    95 in
  • HEIGHT
    33 in
  • BRISTLE MATERIAL
    Replaceable Polypropylene
  • BROOM ANGLING
    Manual
  • BROOM BRISTLE DIAMETER
    32 in
  • DRIVE SYSTEM
    Hyd. Motor Chain Drive Reduction
  • OSCILLATION
    Fixed
  • SWEEP WIDTH (FULLY ANGLED)
    77 in
  • SWEEP WIDTH (STRAIGHT)
    84 in
  • NUMBER OF BRISTLE SECTIONS - ZIG ZAG
    44
  • NUMBER OF BRISTLE SECTIONS - STRAIGHT
    2
  • SWEEP WIDTH (FULLY ANGLED)
    25°

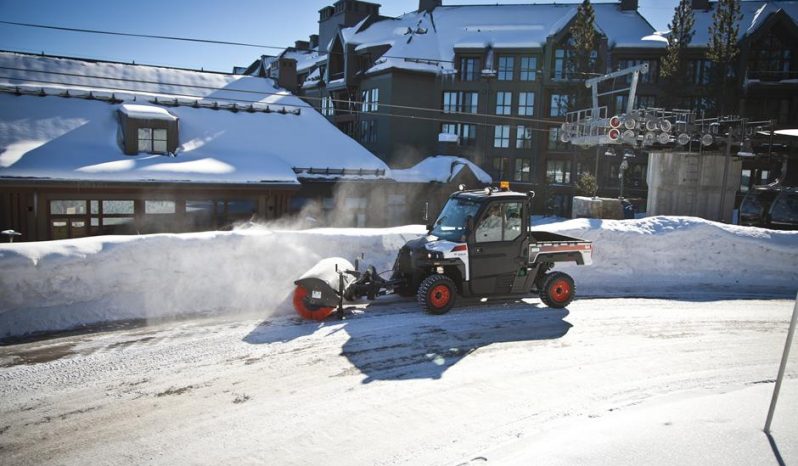

Angle Broom - Utility Vehicles

  • WEIGHT
    471 lb
  • LENGTH
    44.8 in
  • WIDTH
    73.9 in
  • HEIGHT
    28.4 in
  • BRISTLE MATERIAL
    Poly
  • BROOM ANGLING
    25 Degrees (Hydraulic)
  • BROOM BRISTLE DIAMETER
    24 in
  • DRIVE SYSTEM
    Gearbox
  • OSCILLATION
    10°
  • SWEEP WIDTH (FULLY ANGLED)
    65.5 in
  • SWEEP WIDTH (STRAIGHT)
    70 in
  • NUMBER OF BRISTLE SECTIONS - ZIG ZAG
    32
  • SWEEP WIDTH (FULLY ANGLED)
    25°
  • NUMBER OF BRISTLE SECTIONS
    36
