Bobcat AE30S

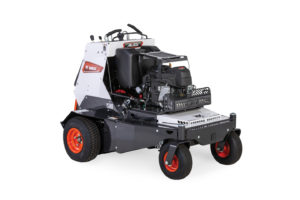

AE30S Stand-On Aerator

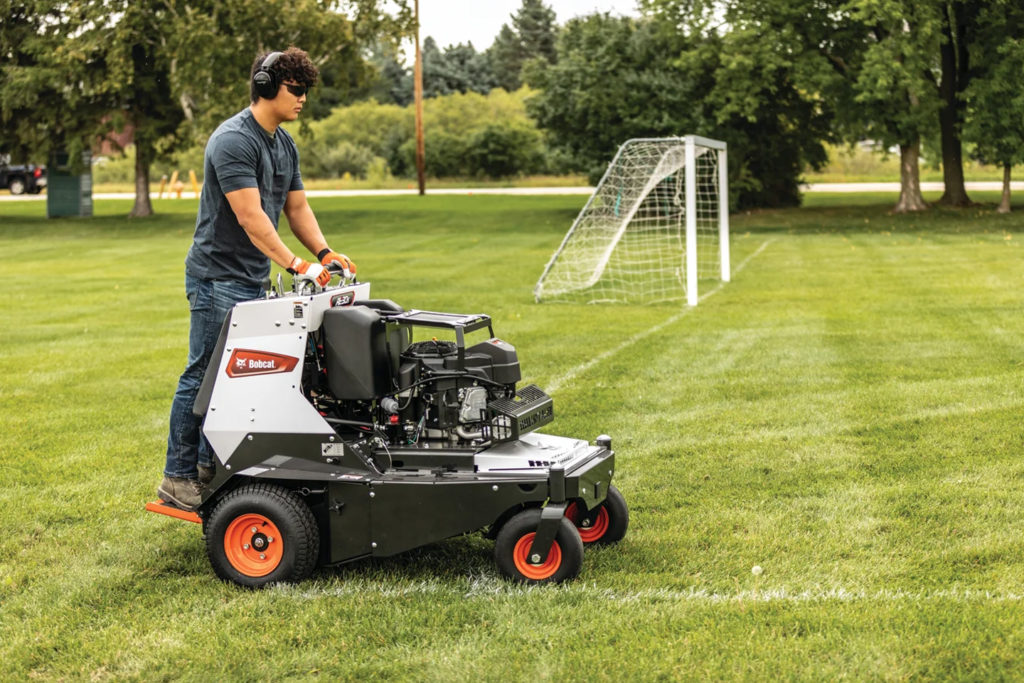

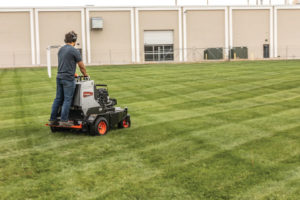

The Bobcat AE30S offers swift and efficient productivity because the aeration season doesn’t last forever. Capable of covering 2 1/4 acres per hour at a ground speed up to 12 km/h, this unit will give you the speed and power needed to take on the biggest jobs. The Bobcat AE30S is packed with innovative controls and features like patented depths that create a hard limit for tine penetration, a patented cooling system that provides optimal engine temperature, a patented chain tensioner system that automatically keeps the chains properly tightened, and an anti-vibration operator platform that can be flipped up for walk-behind applications.

Aerator Literature:

Download Bobcat Aerator Brochure

Features

• 48 Coring Tines
• Built-In Tire Scrapers
• Patented Hydraulic Cooling System
• Patented Automatic Chain Tensioner

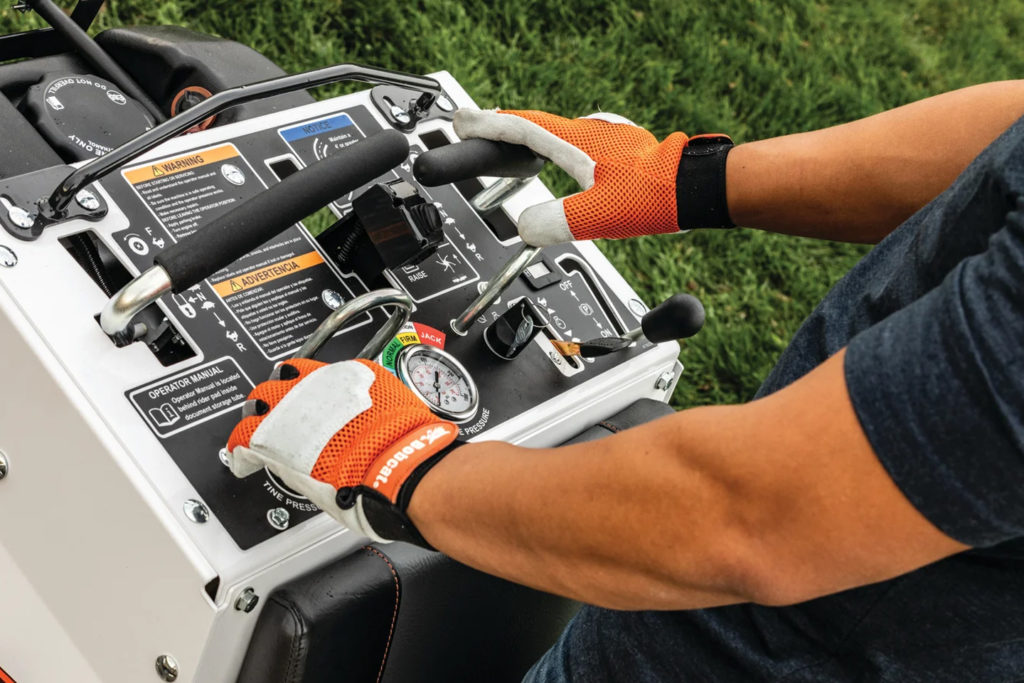

• Fingertip Tine Switch & Pressure Dial
• Anti-Vibration Platform

Options

• Light Kit
• Seed Spreader

AE30S Stand-On Aerator

Dimensions

• LENGTH

  60.5 in

• LENGTH PLATFORM DOWN

  69.5 in

• WIDTH

  47.2 in

• HEIGHT

  48 in

• WEIGHT

  1,235 lb

Engine

• ENGINE MODEL

  FS541V

• ENGINE MAKE

  Kawasaki

• HORSEPOWER

  15 hp

• ENGINE DISPLACEMENT

  36.8 in³

Performance

• MAX PRODUCTIVITY

  0 m²/h

Aeration

• TINE TYPE

  0.75-in Formed From 0.08-in Hardened Chrome Molybdenum Alloy Steel

• AERATION WIDTH

  30 in

• MAX AERATION DEPTH

  5 in

• AERATION PATTERN

  3.75 in x 7 in

• TINE ENGAGEMENT

  Thumb-Operated Tine Lift Switch

• DEPTH ADJUSTMENT

  Hydraulic Pressure Control And 2x Depth Stop Pins On Either Side Of Machine In 0.5-in Increments

Drive

• DRIVE SYSTEM

  Belt From Engine To Hydrostat Input Shafts; Hydrostatic Drive To Jackshaft Via Auto-Tensioned #50 Chain; Jackshaft To Wheels And Tines Via 2x #50 Chains

• TRANSMISSION

  Hydro-Gear ZT-3200 Transaxles; Hydraulic Cooling System

• HYDRAULIC OIL CAPACITY

  7 qt

• MAX FORWARD SPEED

  12 km/h

• MAX REVERSE SPEED

  5 km/h
