Bobcat CT2535

CT2535

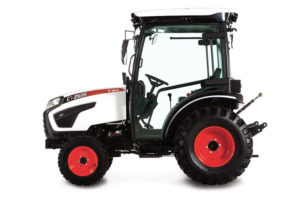

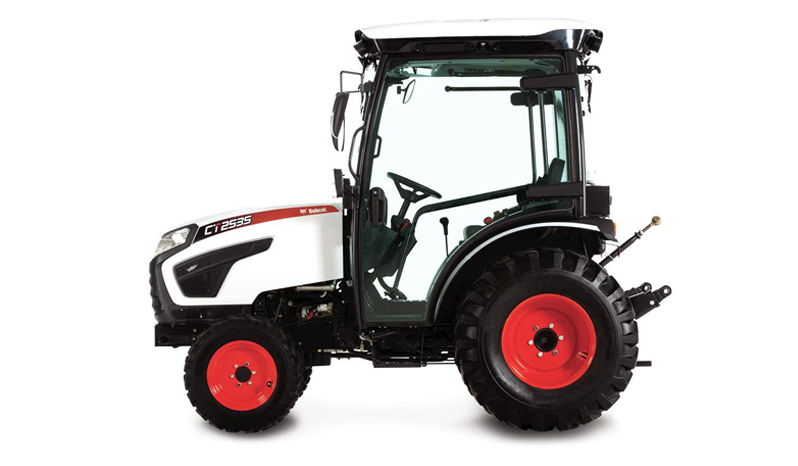

Ride in comfort all year long in the 35-hp Bobcat® CT2535 compact tractor featuring a heated and air-conditioned deluxe enclosed tractor cab. This small farm tractor offers the power and maneuverability you need for mowing large lawns, backing in and out of wooded areas, clearing brush, or lifting and towing heavy loads. Standard features include hydrostatic transmission, four-wheel drive, power steering, a Category 1 3-point hitch and cruise control.

Compact Tractor Literature:

Download CT2000 Series Spec Sheet

Download Tractor Implements & Attachments Brochure

Download Compact Tractor Family Brochure

Features

• Hydrostatic Transmission
• Independent Rear PTO
• Power Take-Off PTO
• Leading Drawbar Towing
• Category 1, 3-Point Hitch
• Roll-Over Protective Structure
• Front And Rear Work Lights
• One-Side Maintenance
• One-Piece Engine Hood
• Deluxe Enclosed Cab
• Heater & Air Conditioner

Options

• Linked Pedal Lever Option
• Three Tire Options

Popular Attachments

• Tiller
• Finish Mower
• Front End Loader Arms
• Mid-Mount Mower
• Backhoe
• Angle Blade

CT2535

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  34.9 hp

• DISPLACEMENT

  111 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3F-TM(H)4

• FUEL TANK

  9 gal

Dimensions

• LENGTH

  120.9 in

• WIDTH

  64 in

• HEIGHT

  91 in

• WEIGHT

  3,585 lb

• GROUND CLEARANCE

  12.3 in

• TURNING RADIUS

  8' 9"

• WHEELBASE

  5' 5"

• FRONT TIRE SIZE

  Front Industrial (AG, Turf) 25X8.5-14 (7-16, 27X8.5-15)

• REAR TIRE SIZE

  Rear Industrial (AG, Turf) 15-19.5 (11.2-24, 41X14-20)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  11.4 gal/min

• BRAKE TYPE

  Wet Multi Disc

• TRANSMISSION TYPE

  Infinite, 3 Range Hydrostatic

Operational

• TRAVEL SPEED

  22.5 km/h

• TRAVEL SPEED - REVERSE

  16 km/h

• 3-POINT HITCH

  Category 1

• 3-PT LIFT CONTROL TYPE

  Hydraulic Position Control System

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  1,631 lb

• REAR PTO SYSTEM

  Independent

• REAR PTO - RPM

  540

• PTO HP

  29.4 hp

• MID PTO - RPM

  1,988

Loader Attachment

• LOADER LIFT HEIGHT

  8' 4"

• BUCKET WIDTH

  5' 0"
