Bobcat E145

E145 Large Excavator

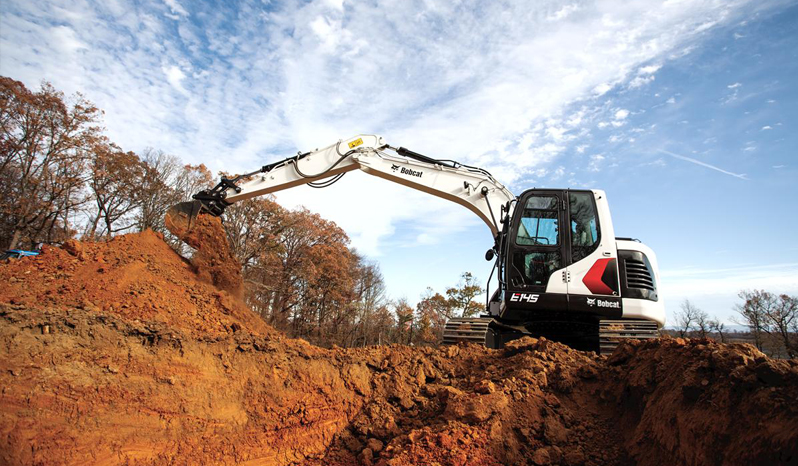

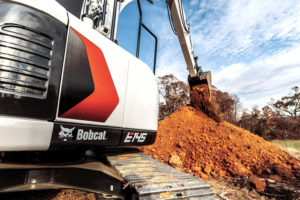

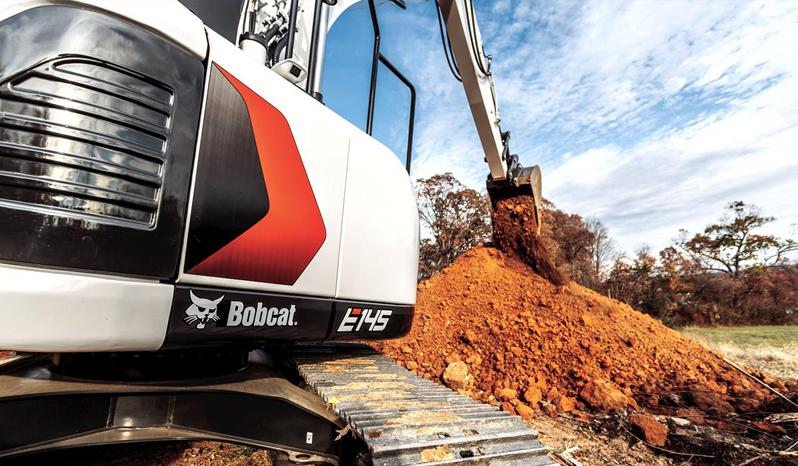

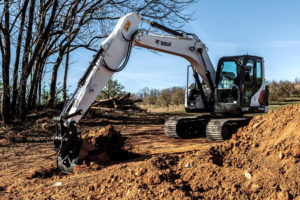

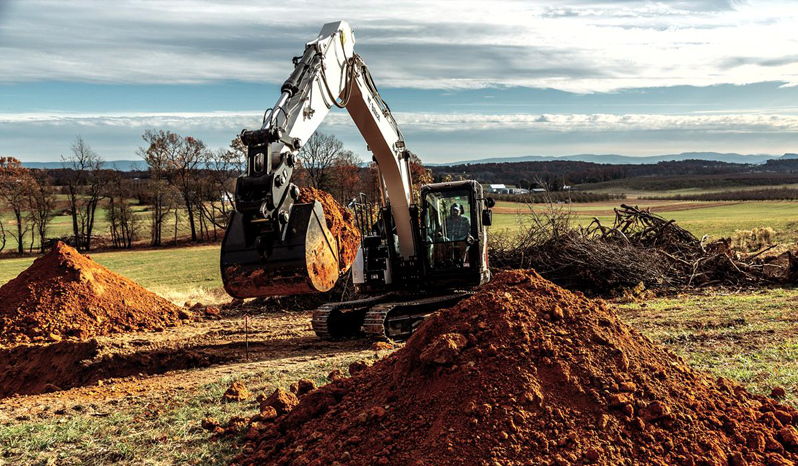

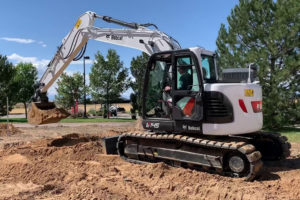

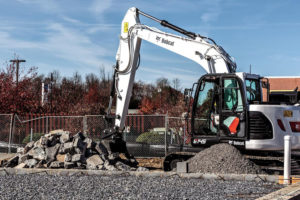

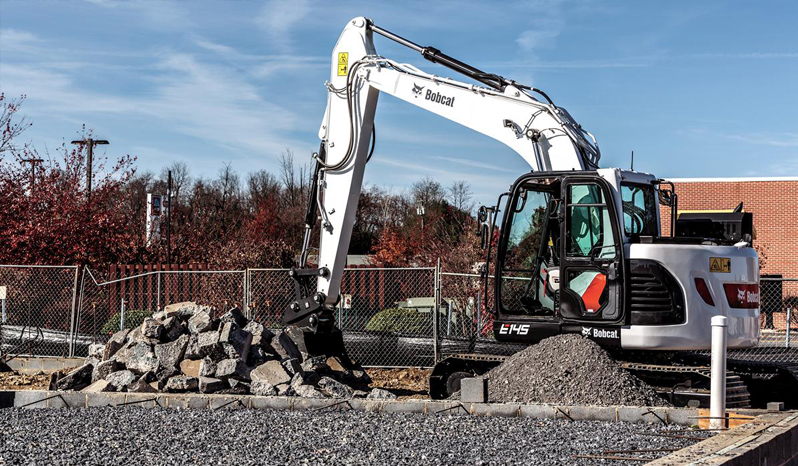

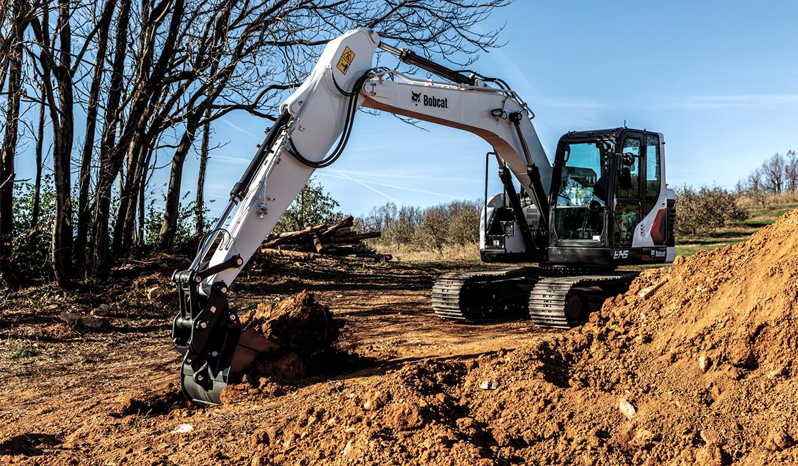

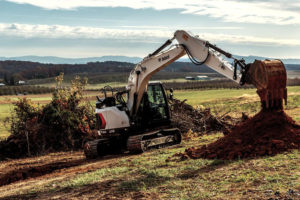

The Bobcat E145 large excavator delivers the ideal balance of power, maneuverability and lifting performance for demanding construction, site development and utility projects. Featuring a turbocharged 3.4-liter non-DPF engine, reduced tail swing design and class-leading hydraulics, the E145 provides exceptional digging force, fast cycle times and strong lifting capacity without the added complexity of regeneration. Four selectable power modes — including Power+, Power, Standard and Economy — allow you to tailor performance for heavy digging, truck loading, precision grading or fuel-efficient operation. Dual variable displacement pumps and a one-touch power boost button provide maximum hydraulic output when breaking through tough ground, while the fine-swing feature ensures smooth stopping and reduced spillage for greater efficiency on every cycle.

Built for productivity and operator confidence, the Bobcat E145 excavator features a standard 360-degree all-around view monitoring (AVM) camera system displayed on an 8-inch touch screen for enhanced visibility and jobsite awareness. The durable X-frame undercarriage improves ground clearance and sheds debris for easier maintenance, while the reinforced upper structure adds long-term durability. Inside the premium cab, operators benefit from an air-suspension heated seat, improved airflow for faster defrosting and efficient climate control, LED work lights and ergonomic controls designed for all-day comfort. With two-way auxiliary hydraulics for attachment versatility, sealed pin links for reduced maintenance and advanced fuel system features for cold-weather reliability, the E145 large excavator is engineered to maximize uptime, productivity and performance on the toughest jobsites.

Large Excavator Literature:

Download Large Excavator Brochure

Features

• Air Conditioning
• Cab Enclosure
• Cab Heater
• Heater Air Conditioning
• Radio
• Engine Shutdown
• Auxiliary Hydraulics
• Selectable Auxiliary Hydraulic Flow

Options

• Dozer Blade
• Quick-Tach System
• Rubber Track

E145 Large Excavator

Dimensions

• LENGTH

  315 in

• HEIGHT

  111 in

• WIDTH

  102 in

• WEIGHT

  34,987 lb

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  115 hp

• FUEL TANK CAPACITY

  55 gal

• FUEL TYPE

  Diesel

• TURBOCHARGED ENGINE

  Standard

Hydraulics

• TOTAL HYDRAULIC FLOW

  30.1 gpm

• AUXILIARY PRESSURE

  4,694 psi

Performance

• TRAVEL SPEED - HIGH

  4.7 km/h

• TRAVEL SPEED - LOW

  2.7 km/h

• ARM DIGGING FORCE

  13,228 lbf

• BUCKET DIGGING FORCE

  21,471 lbf

• MAX DIG DEPTH

  19.6 ft

• MAX REACH AT GROUND LEVEL

  27.9 ft

• MAX DUMP HEIGHT

  23.2 ft

• TAIL SWING RADIUS

  Reduced
