Bobcat E35

E35

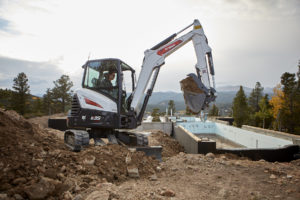

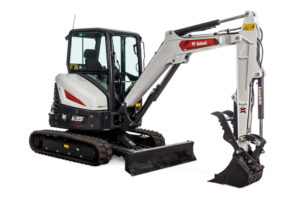

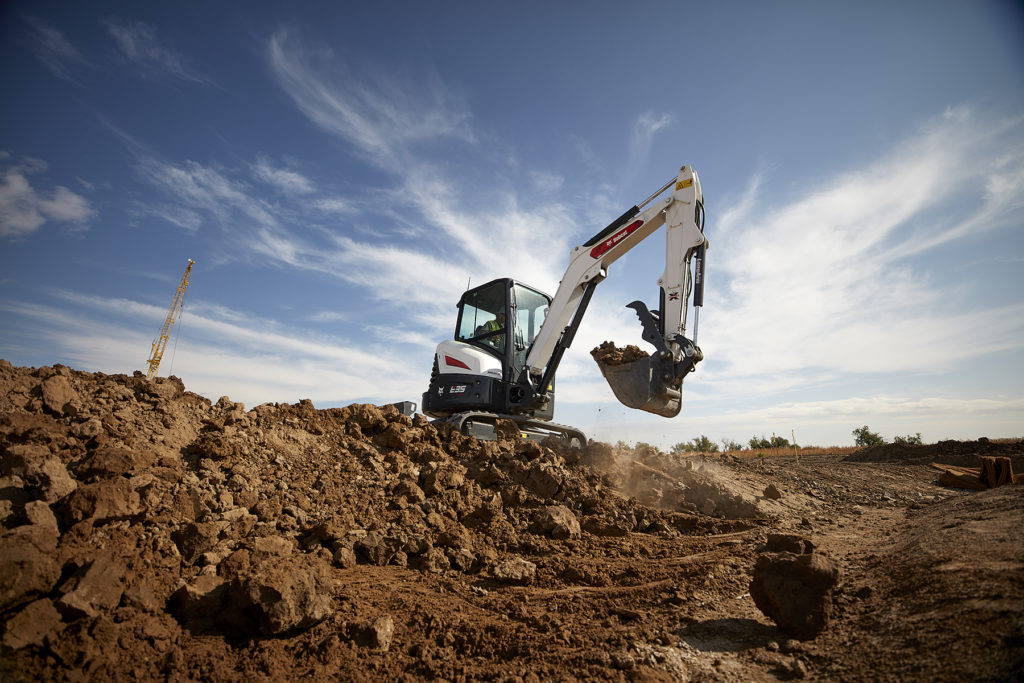

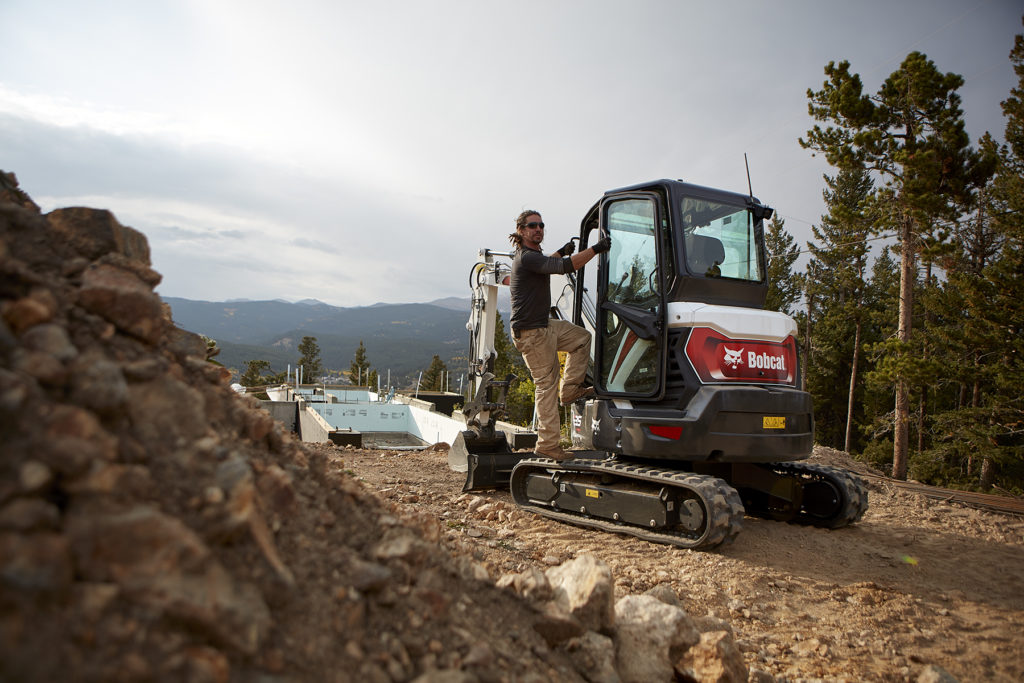

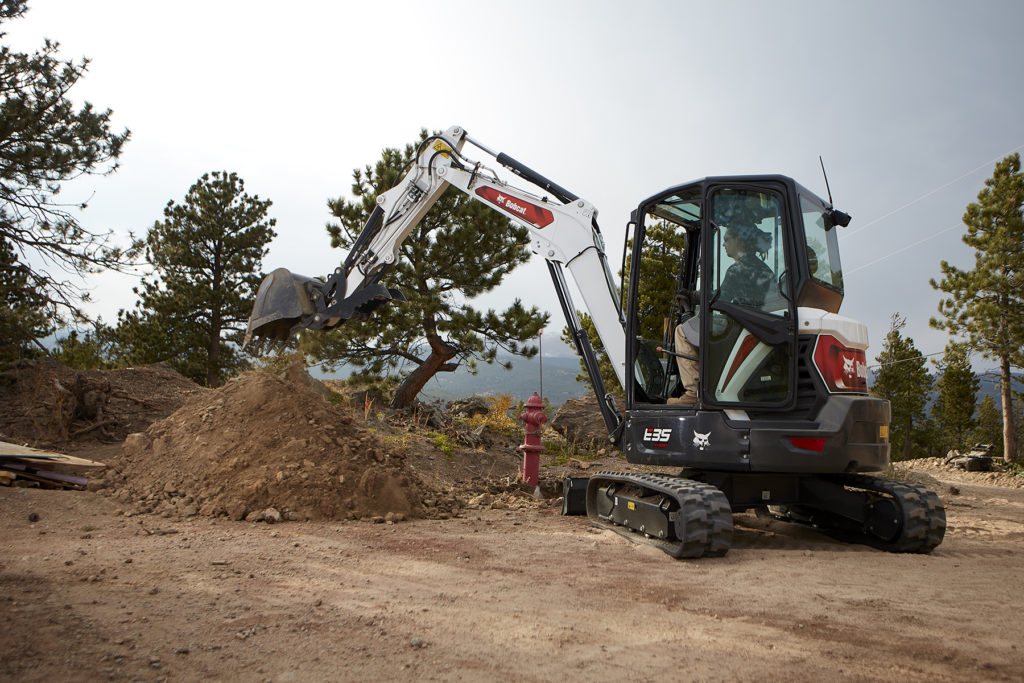

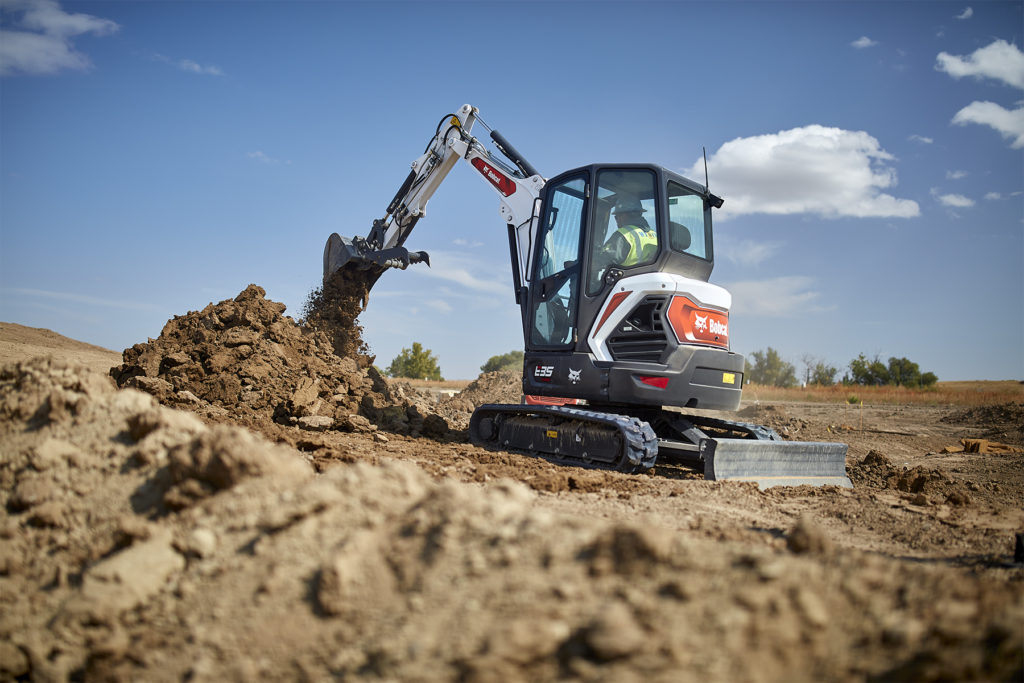

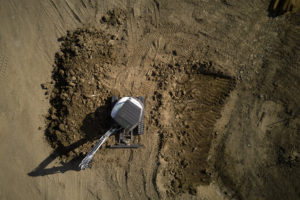

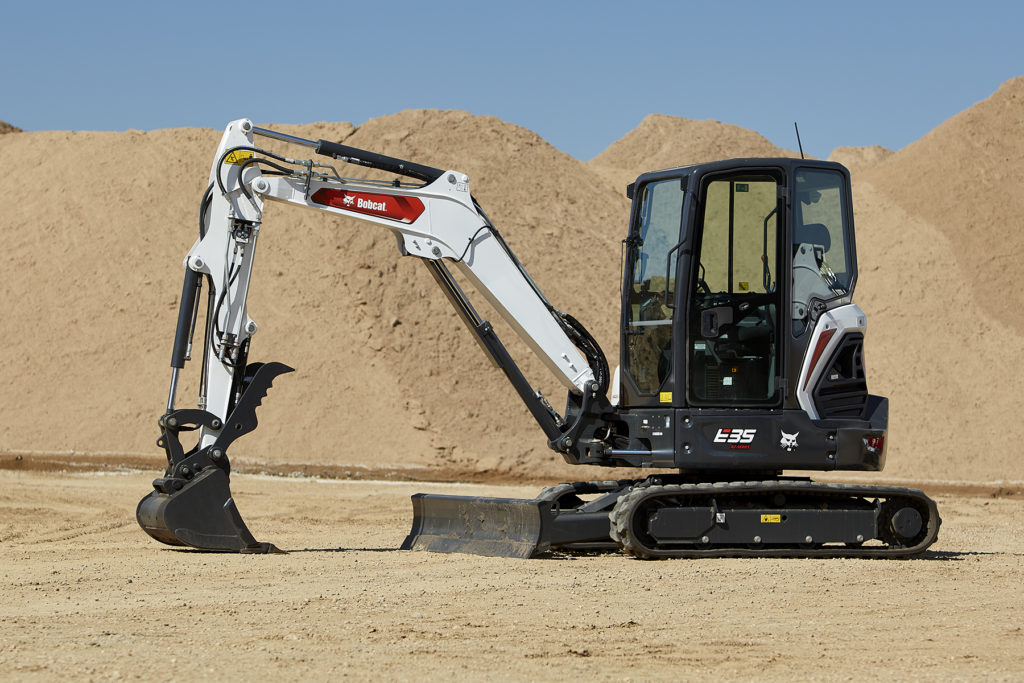

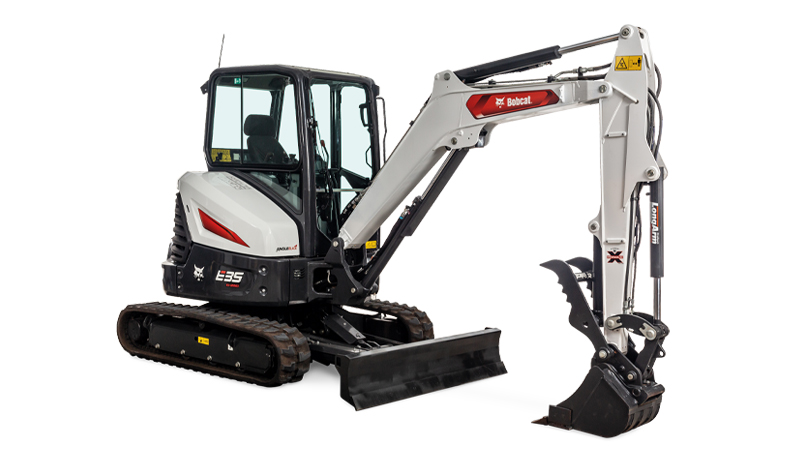

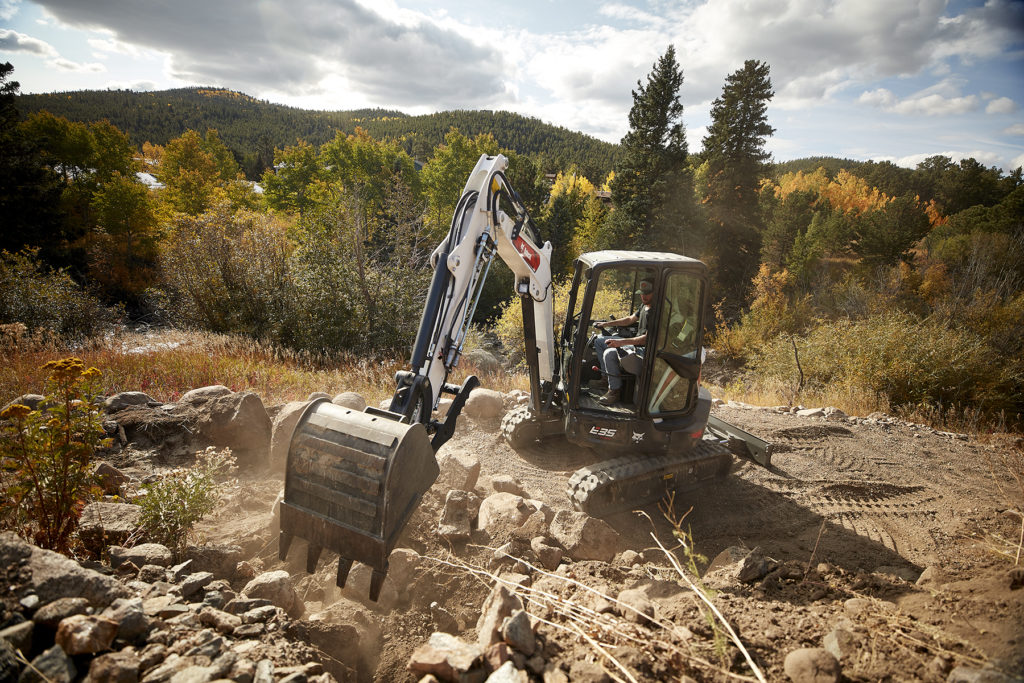

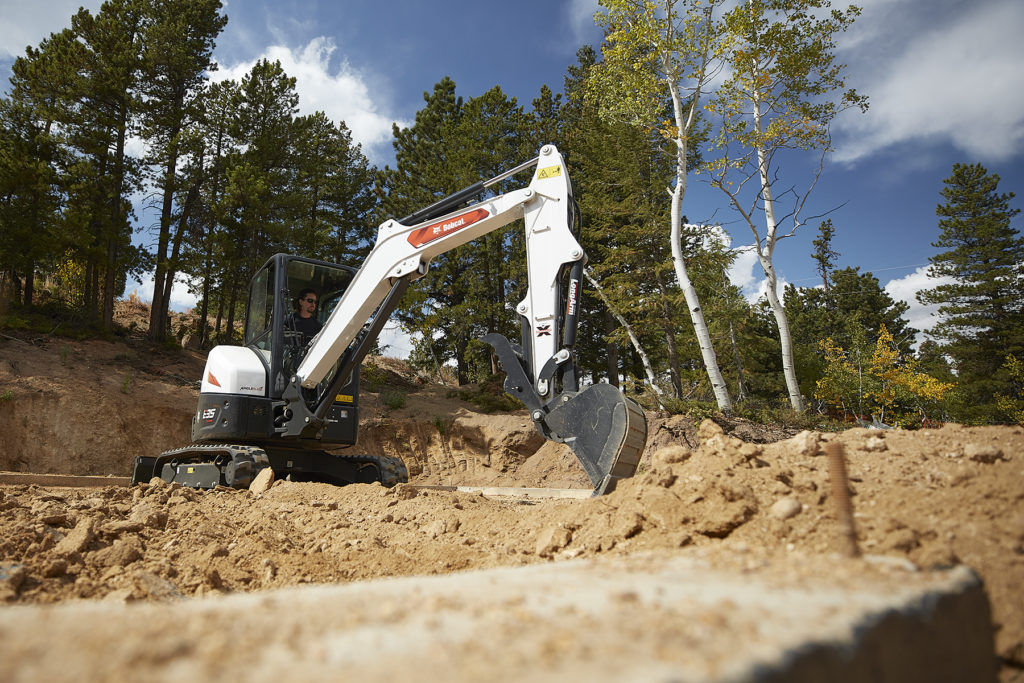

The 25-hp Bobcat R2-Series E35 compact excavator includes all the benefits built into R-Series excavators plus R2-Series innovations that make this high-performing machine a leader in its class size. It features a minimal swing design for unobstructed rotation and dual-flange track rollers that extend the undercarriage structure closer to the track’s edge, resulting in improved over-the-side digging performance and slewing ability.

The redesigned, turbo-charged Bobcat engine is more efficient and delivers the performance you need while reducing and simplifying routine maintenance. The E35 features many enhancements including refined, low-effort joysticks, arm-mounted auxiliary hydraulics, improved cold weather starting and LED lights.

Compact Excavator Literature:

Download Compact Excavator Brochure

Download Bobcat Attachments Catalog

Features

• Auxiliary Hydraulics
• Engine Shutdown
• Quick-Tach System
• Rubber Track
• Selectable Auxiliary Hydraulic Flow

Options

• Enclosed Cab
• Air Conditioning
• Heater Air Conditioning
• Radio
• Secondary Auxiliary Hydraulics
• Angle Blade

Popular Attachments

• Auger
• Clamp
• Breaker
• Hydra-Tilt
• Power-Tilt
• Ripper

E35

Dimensions

• LENGTH

  190.1 in

• HEIGHT

  96.2 in

• WIDTH

  69.7 in

• WEIGHT

  8,362 lb

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  25 hp

• FUEL TANK CAPACITY

  13.7 gal

• FUEL TYPE

  Diesel

• TURBOCHARGED ENGINE

  No

Hydraulics

• SYSTEM RELIEF PRESSURE

  2,987 psi

• AUXILIARY STD FLOW

  16.9 gal/min

Operational

• TRAVEL SPEED - HIGH

  4.7 km/h

• TRAVEL SPEED - LOW

  2.6 km/h

• ARM DIGGING FORCE

  4,074 lbf

• BUCKET DIGGING FORCE

  7,284 lbf

• MAX DIG DEPTH

  11.1 ft

• MAX REACH AT GROUND LEVEL

  18 ft

• MAX DUMP HEIGHT

  12 ft

• RATED LIFT CAPACITY

  3,206 lb

• LIFT RADIUS

  118 in

• BOOM SWING RADIUS - LEFT

  75°

• BOOM SWING RADIUS - RIGHT

  55°

• TAIL SWING RADIUS

  Minimal

Base Arm Option

• WEIGHT

  7,659 lb

• MAX DIG DEPTH

  10.1 ft

• MAX REACH AT GROUND LEVEL

  17 ft

• MAX DUMP HEIGHT

  11.4 ft

Extendable-Arm Option

• WEIGHT

  8,590 lb

• MAX DIG DEPTH

  12.8 ft

• MAX REACH AT GROUND LEVEL

  19.6 ft

• MAX DUMP HEIGHT

  12.9 ft
