Bobcat E42
-
- Make
- Bobcat
-
- Category
- Bobcat Excavators
-
- Dig Depth
- 11.4 ft
-
- Width
- 72.8 in
-
- Weight
- 10,425 lb
-
- Engine
- Tier 4
-
- Horsepower
- 42.6 hp
-
- Fuel Type
- Diesel
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo

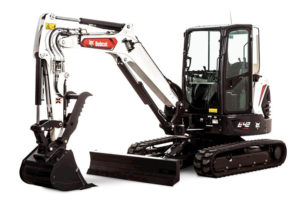

E42
The E42 R2-Series compact (mini) excavator offers enhanced hydraulic performance, improved efficiency and more precise control required to push the limits and take on more complex work. Configure it with the optional long arm or extendable arm to increase your dig depth and reduce the frequency of repositioning the machine. The conventional tail swing E42 is well-balanced for improved lift capacity and increased operator confidence that helps maximize productivity.
Compact Excavator Literature:
Features
- Auxiliary Hydraulics
- Engine Shutdown
- Quick-tach System
- Rubber Track
- Selectable Auxiliary Hydraulic Flow
Options
- Enclosed Cab
- Air Conditioning
- Cab Heater
- Deluxe Cloth Seat
- Steel Tracks
- Hydraulic X-Change Quick-tach System
- Hydraulic Clamp Attachment
- Secondary Clamp Attachment
- Secondary Auxiliary Hydraulics
- Long-Arm
- Extendable-Arm
- Angle Blade
Popular Attachments
- Auger
- Clamp
- Breaker
- Hydra-Tilt
- Power-Tilt
- Plate Compactor
E42
Dimensions
-
- LENGTH
- 200 in
-
- HEIGHT
- 99.1in
-
- WIDTH
- 72.8 in
-
- WEIGHT
- 10,425 lb
Engine
-
- ENGINE
- Tier 4
-
- HORSEPOWER
- 42.6 hp
-
- FUEL TANK CAPACITY
- 19 gal
-
- FUEL TYPE
- Diesel
Hydraulics
-
- SYSTEM RELIEF PRESSURE
- 3,045 psi
-
- AUXILIARY STD FLOW
- 20 gal/min
Operational
-
- TRAVEL SPEED - HIGH
- 5.3 km/h
-
- TRAVEL SPEED - LOW
- 2.6 km/h
-
- ARM DIGGING FORCE
- 5,820 lbf
-
- BUCKET DIGGING FORCE
- 9,601 lbf
-
- MAX DIG DEPTH
- 11.4 ft
-
- MAX REACH AT GROUND LEVEL
- 18.3 ft
-
- MAX DUMP HEIGHT
- 13.2 ft
-
- RATED LIFT CAPACITY
- 4,921 lb
-
- LIFT RADIUS
- 118 in
-
- BOOM SWING RADIUS - LEFT
- 75°
-
- BOOM SWING RADIUS - RIGHT
- 50°
-
- TAIL SWING RADIUS
- Conventional
Base Arm Option
-
- WEIGHT
- 9,830 lb
-
- MAX DIG DEPTH
- 10.4 ft
-
- MAX REACH AT GROUND LEVEL
- 17.6 ft
-
- MAX DUMP HEIGHT
- 12.3 ft
Extendable Arm-Option
-
- WEIGHT
- 10,666 lb
-
- MAX DIG DEPTH
- 12.4 ft
-
- MAX REACH AT GROUND LEVEL
- 19.6 ft
-
- MAX DUMP HEIGHT
- 13.4 ft
