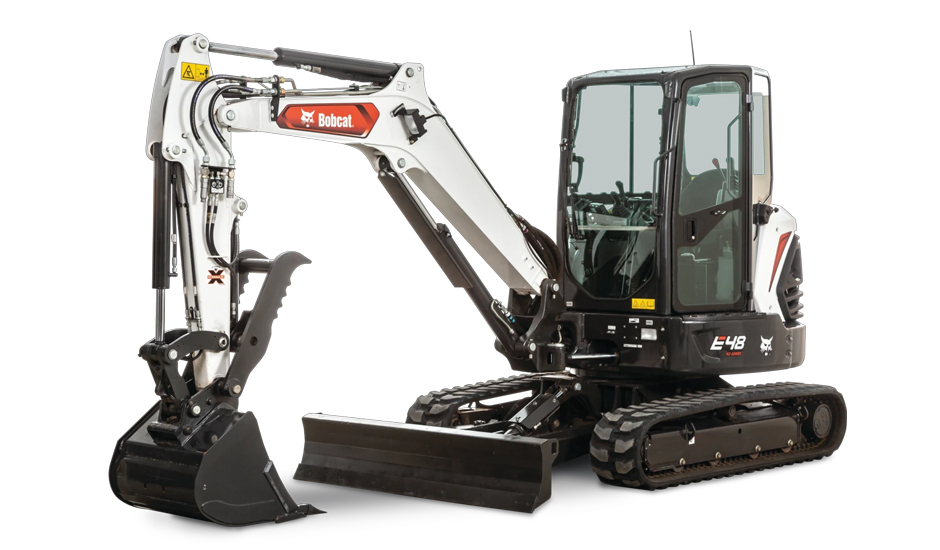

Bobcat E48

E48 Compact Excavator

The Bobcat E48 compact excavator delivers powerful performance and precise control in a 4.5-ton mini excavator built for demanding construction, utility and landscaping jobs. With its conventional tail-swing design, added machine weight and high-performance hydraulics, the E48 provides impressive lift capacity and strong over-the-side digging capability. Dual flange track rollers enhance slewing stability and ride quality, while optional long arm and extendable arm configurations increase dig depth and reduce the need to reposition the machine. Designed for accuracy and efficiency, the E48 also offers blade float and compatibility with the Bobcat depth check system to help operators achieve precise grading with less rework.

Engineered for comfort and uptime, the Bobcat E48 features low-effort joysticks with fingertip boom swing and auxiliary controls for smooth, responsive multifunction operation. The redesigned R2-Series engine improves cold-weather performance and simplifies routine maintenance, with extended service intervals including going from the 500-hour interval to a 750-hour service, and larger fuel filters for enhanced protection. Inside the spacious cab, operators can choose premium features such as a heated high-back seat, rearview camera and bright LED work lights for improved visibility in low-light conditions. For contractors seeking a durable, high-performing compact excavator with advanced hydraulics and operator-focused comfort, the E48 delivers productivity without compromise.

Compact Excavator Literature:

Download Compact Excavator Brochure

Download Bobcat Attachments Catalogue

Features

• Swing Boom
• Suspension Seat
• Engine Shutdown
• Auxiliary Hydraulics
• Rubber Track
• Selectable Auxiliary Hydraulic Flow

Options

• Air Conditioning
• Cab Enclosure
• Radio
• Angle Blade

Popular Attachments

• Auger
• Clamp
• Breaker
• Hydra-Tilt
• Power-Tilt
• Plate Compactor

E48 Compact Excavator

Dimensions

• LENGTH

  200.5 in

• HEIGHT

  99.1in

• WIDTH

  72.8 in

• WEIGHT

  9,830 lb

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  42.6 hp

• FUEL TANK CAPACITY

  19 gal

• FUEL TYPE

  Diesel

Hydraulics

• SYSTEM RELIEF PRESSURE

  3,045 psi

• AUXILIARY STD FLOW

  20 gal/min

Performance

• TRAVEL SPEED - HIGH

  5.3 km/h

• TRAVEL SPEED - LOW

  2.6 km/h

• ARM DIGGING FORCE

  5,820 lbf

• BUCKET DIGGING FORCE

  9,601 lbf

• MAX DIG DEPTH

  10.4 ft

• MAX REACH AT GROUND LEVEL

  17.3 ft

• MAX DUMP HEIGHT

  12.6 ft

• RATED LIFT CAPACITY

  4,921 lb

• LIFT RADIUS

  118 in

• BOOM SWING RADIUS - LEFT

  75°

• BOOM SWING RADIUS - RIGHT

  50°

• TAIL SWING RADIUS

  Conventional
