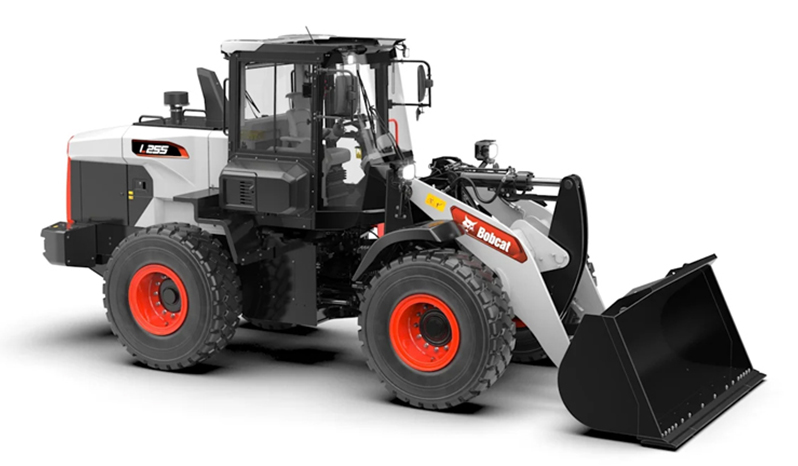

Bobcat L255
-
- Make
- Bobcat
-
- Category
- Bobcat Compact Wheel Loaders
-
- ROC
- 12,420 lb
-
- Width
- 100.4 in
-
- Horsepower
- 172 hp
-
- Engine
- Tier 4
-
- Fuel Type
- Diesel
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo
L255
The Bobcat L255 takes your productivity up a notch with a 172 hp engine, large 5.0 yd³ bucket capacity, and robust tipping loads for high-output material handling. Its 4F/3R powershift transmission offers crisp, responsive control while selectable power and transmission modes help balance speed, torque, and fuel efficiency. The comfortable operator environment features an adjustable air suspension seat, Bluetooth-enabled touchscreen display, return-to-dig function, and joystick control. With a reinforced box frame, heavy-duty axles, and advanced cooling systems, the L255 is made to perform under pressure every day.
Large Wheel Loader Literature:
Features
- Enclosed Cab with HVAC
- Air Suspension Seat
- Joystick Controls
- Keyless Start with Key Fob
- Rear View Camera
- 8" Touch Display
- Bluetooth Connectivity
- Ride Control
- Return-to-Dig
- Inching Control
- Auto Idle & Auto Shutdown
- Reversible Cooling Fan
- LED Work Lights
- Machine IQ Telematics
- Auxiliary Hydraulics
- Z-Bar Linkage
- Powershift Transmission (4F/3R)
- 3 Power Modes
- Centralized & Remote Grease Points
- 40° Articulation
Options
- Quick Coupler
- High-Flow Hydraulics
- Heated Seat
- Power Bob-Tach
- Radio
- Rotating Beacon
- Full Rear Fenders
- Additional LED Lighting
- Counterweight Kit
- Payload Weighing System
- Tire Packages
Popular Attachments
- Grapple Bucket
- Light Material Bucket
- Pallet Forks
- Snow Pusher
- Angle Broom
L255
Dimensions
-
- LENGTH
- 256.6 in
-
- LENGTH WITH BUCKET
- 311.0 in
-
- HEIGHT
- 130.3 in
-
- WIDTH
- 107.9 in
-
- WEIGHT
- 30,903 lb
-
- ARTICULATION ANGLE
- 40°
-
- TURNING RADIUS INSIDE
- 240.3 in
-
- TURNING RADIUS OUTSIDE
- 216.8 in
-
- WHEELBASE
- 120 in
-
- HEIGHT TO BUCKET HINGE PIN
- 151.5 in
-
- TIRE SIZE
- 20.5R25 L3
-
- GROUND CLEARANCE
- 17 in
-
- ROLLBACK ANGLE
- 48°
-
- DUMP ANGLE AT MAXIMUM HEIGHT
- 48°
Engine
-
- ENGINE
- Tier 4
-
- COOLING
- Liquid
-
- ENGINE FUEL
- Diesel
-
- HORSEPOWER
- 172 hp
Hydraulics
-
- MAIN PUMP MAX FLOW RATE
- 40.9 gal/min
-
- MAIN PUMP PRESSURE
- 3,844 psi
-
- 3RD SPOOL MAX FLOW RATE
- 40.9 gal/min
-
- 3RD SPOOL PRESSURE
- 4,351 psi
Operational
-
- RATED OPERATING CAPACITY STRAIGHT
- 12,420 lb
-
- TIPPING LOAD STRAIGHT
- 24,839 lb
-
- RATED OPERATING CAPACITY ART.
- 10,947 lb
-
- TIPPING LOAD ART.
- 21,894 lb
-
- TRAVEL SPEED - FORWARD
- 37.4 km/h
-
- TRAVEL SPEED - REVERSE
- 23.9 km/h
