Bobcat L285
-
- Make
- Bobcat
-
- Category
- Bobcat Compact Wheel Loaders
-
- ROC
- 13,682 lb
-
- Width
- 107.9 in
-
- Horsepower
- 189 hp
-
- Engine
- Tier 4
-
- Fuel Type
- Diesel
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo

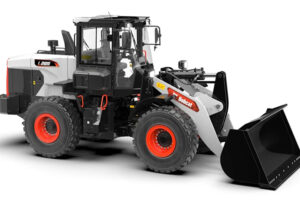

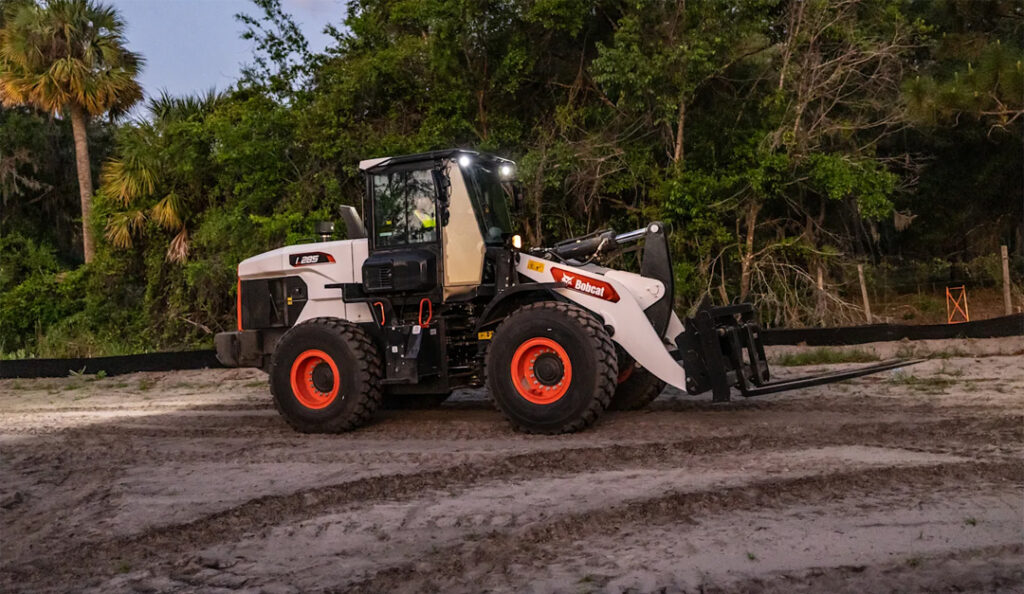

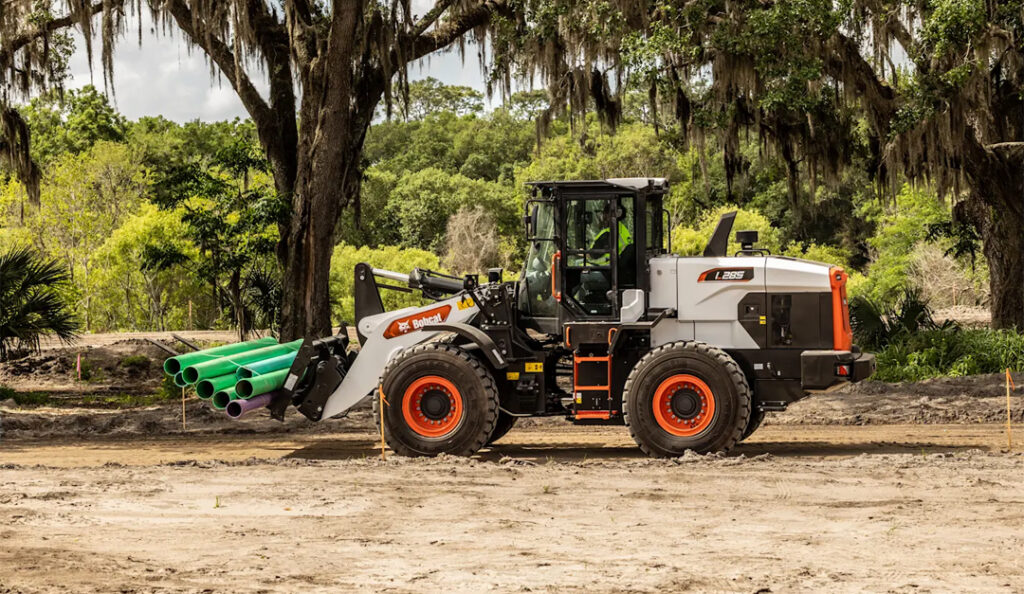

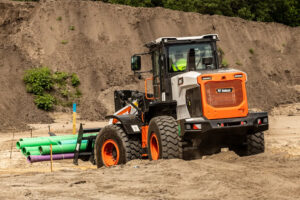

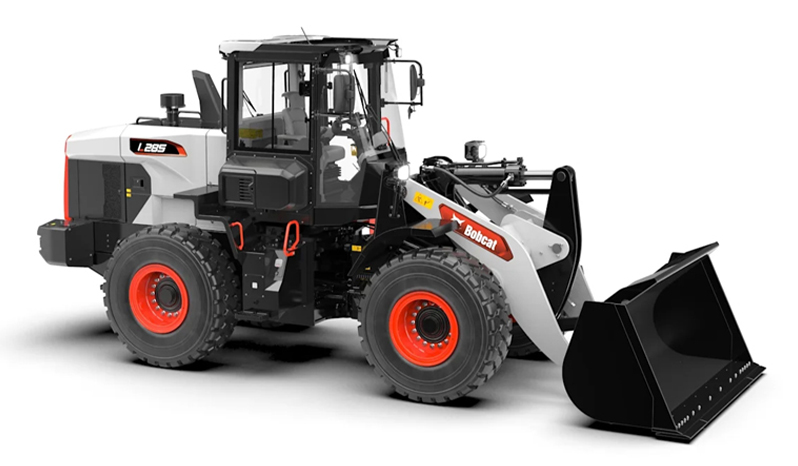

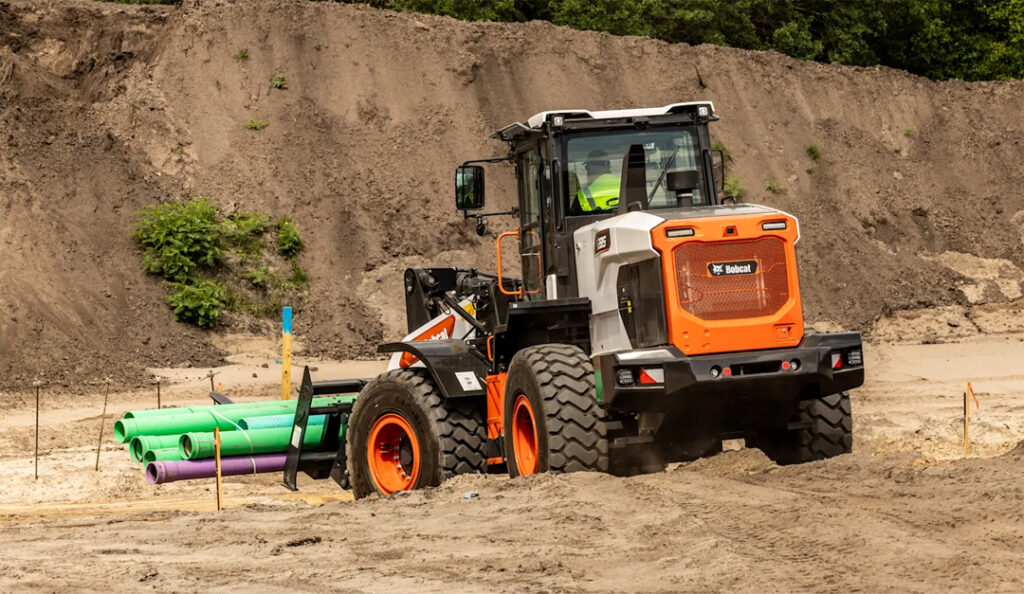

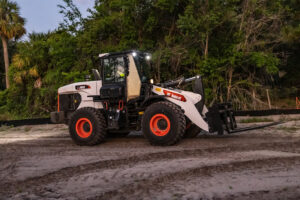

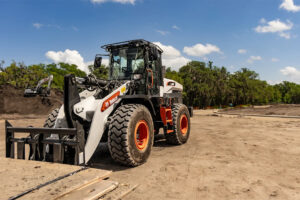

L285

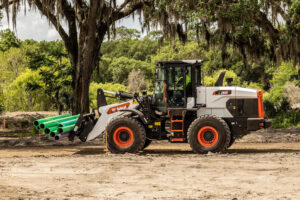

The most powerful model in the lineup, the Bobcat L285 large wheel loader is designed for your most demanding material moving applications. Its 189 hp Tier 4 engine, 5.5 yd³ bucket capacity, and over 27,000 lbs of tipping load (straight) give it an edge in even the heaviest-duty jobs. Equipped with a 4F/3R powershift transmission, auto idle, auto shutdown, and high-flow hydraulics, this machine works harder and smarter. The cab provides a premium operating experience with wide glass panels, advanced touchscreen controls, ride control, and operator-focused comfort. Whether you’re loading, pushing, or lifting, the L285 is the ultimate material handling workhorse.
Large Wheel Loader Literature:
Features
- Enclosed Cab with HVAC
- Heated Air Suspension Seat
- Joystick Controls
- Keyless Start with Key Fob
- Rear View Camera
- 8" Touch Display
- Bluetooth Connectivity
- Ride Control
- Return-to-Dig
- Inching Control
- Auto Idle & Auto Shutdown
- Reversible Cooling Fan
- LED Work Lights
- Machine IQ Telematics
- Auxiliary Hydraulics
- Z-Bar Linkage
- Powershift Transmission (4F/3R)
- 3 Power Modes
- Centralized & Remote Grease Points
- Outboard Brakes
- 40° Articulation
Options
- Quick Coupler
- Full High-Flow Hydraulics
- Radio
- Rotating Beacon
- Full Rear Fenders
- Additional LED Lighting
- Counterweight Kit
- Payload Weighing System
- Power Bob-Tach
- Tire Packages
Popular Attachments
- Grapple Bucket
- Light Material Bucket
- Pallet Forks
- Snow Pusher
- Angle Broom
L285
Dimensions
-
- LENGTH
- 260.6 in
-
- LENGTH WITH BUCKET
- 315.0 in
-
- HEIGHT
- 132.2 in
-
- WIDTH
- 107.9 in
-
- WEIGHT
- 34,487 lb
-
- ARTICULATION ANGLE
- 40°
-
- TURNING RADIUS INSIDE
- 243.8 in
-
- TURNING RADIUS OUTSIDE
- 216.9 in
-
- WHEELBASE
- 120 in
-
- HEIGHT TO BUCKET HINGE PIN
- 155.5 in
-
- TIRE SIZE
- 20.5R25 L3
-
- GROUND CLEARANCE
- 17 in
-
- ROLLBACK ANGLE
- 49°
-
- DUMP ANGLE AT MAXIMUM HEIGHT
- 46°
Engine
-
- ENGINE
- Tier 4
-
- COOLING
- Liquid
-
- ENGINE FUEL
- Diesel
-
- HORSEPOWER
- 189 hp
Hydraulics
-
- MAIN PUMP MAX FLOW RATE
- 64.9 gal/min
-
- MAIN PUMP PRESSURE
- 3,844 psi
-
- 3RD SPOOL MAX FLOW RATE
- 66.0 gal/min
-
- 3RD SPOOL PRESSURE
- 4,351 psi
Operational
-
- RATED OPERATING CAPACITY STRAIGHT
- 13,682 lb
-
- TIPPING LOAD STRAIGHT
- 27,364 lb
-
- RATED OPERATING CAPACITY ART.
- 12,061 lb
-
- TIPPING LOAD ART.
- 24,121 lb
-
- TRAVEL SPEED - FORWARD
- 35.5 km/h
-
- TRAVEL SPEED - REVERSE
- 24.1 km/h
