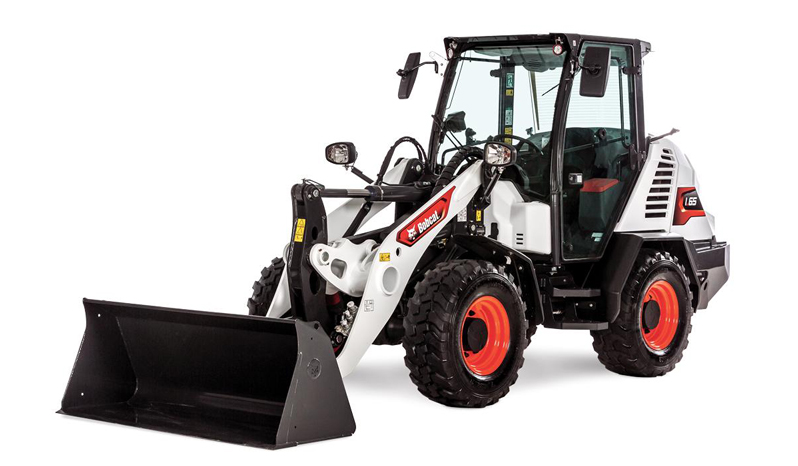

Bobcat L65

L65

With a high bucket capacity, high lift height, impressive maneuverability and swift travel speeds, you can’t beat the material handling capabilities of the Bobcat® L65 compact wheel loader. These durable machines deliver performance, comfort and versatility to power through tough jobs in tight spaces. Their compact size, Bobcat DNA and Power Bob-Tach® interface enhance the machines’ versatility, ensuring maximum performance in their size class, which makes them ideal for landscaping, nurseries, construction, agriculture, rental and many other applications.

The compact wheel loader bridges the gap between Bobcat’s grounds maintenance equipment and core products, providing dealers with an opportunity to expand their customer base at a time of growing demand for these products. Specific compact wheel loader buckets and pallet forks are available. Operators can also interchange select attachments with other Bobcat equipment. Attachments for the compact wheel loaders include buckets, forks, angle brooms, snow pushers, grapples, snow blowers and augers.

Compact Wheel Loader Literature:

Download Compact Wheel Loader Brochure

Download Bobcat Attachments Catalog

Features

• Enclosed Operator Cab w HVAC
• Mechanical Susp Seat
• Joystick Control
• Keyless Ignition
• Speedometer
• Hour Meter
• Tilt and Telescoping Steering Wheel
• Cup Holders
• Front and Rear Work Lights
• Turn Signals
• Advanced Attachment Control
• Two Speed Travel
• Lift Arm Lockout with Manual Bypass
• Tilt Lock Out

Options

• Operator Canopy
• Keyed Ignition
• Rotating Flashing Beacon
• Rear View Camera

Popular Attachments

• Angle Broom
• Auger
• Landplane
• Snow Pusher
• Snow Blade
• Rotary Tiller

L65

Dimensions

• LENGTH

  210.5 in

• LENGTH WITH BUCKET

  218 in

• HEIGHT

  154.4 in

• WIDTH

  74.8 in

• WEIGHT

  9,944 lb

• ARTICULATION ANGLE

  40°

• TURNING RADIUS INSIDE

  78.2 in

• TURNING RADIUS OUTSIDE

  169.2 in

• WHEELBASE

  82.7 in

• HEIGHT TO BUCKET HINGE PIN

  127 in

• TIRE SIZE

  365/70 R18

• GROUND CLEARANCE

  11.3 in

• ROLLBACK ANGLE

  55°

• DUMP ANGLE AT MAXIMUM HEIGHT

  45°

Engine

• ENGINE

  Tier 4

• COOLING

  Liquid

• ENGINE FUEL

  Diesel

• HORSEPOWER

  55 hp

Hydraulics

• AUXILIARY STD FLOW

  19.8 gal/min

• PUMP CAPACITY

  19.8 gal/min

Operational

• RATED OPERATING CAPACITY STRAIGHT

  3,133 lb

• TIPPING LOAD STRAIGHT

  6,266 lb

• RATED OPERATING CAPACITY ART.

  2,618 lb

• TIPPING LOAD ART.

  5,236 lb

• TRAVEL SPEED - LOW

  7.9 km/h

• TRAVEL SPEED - HIGH

  28.6 km/h
