Bobcat PA1170P
-
- Make
- Bobcat
-
- Category
- Bobcat Portable Air Compressors
-
- ROP
- 365 psig
-
- Rated Speed
- 1,825 rpm
-
- Weight
- 19,025 lb
-
- Emissions Tier
- Tier 4 Final
-
- Idle Speed
- 1,300 rpm
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo

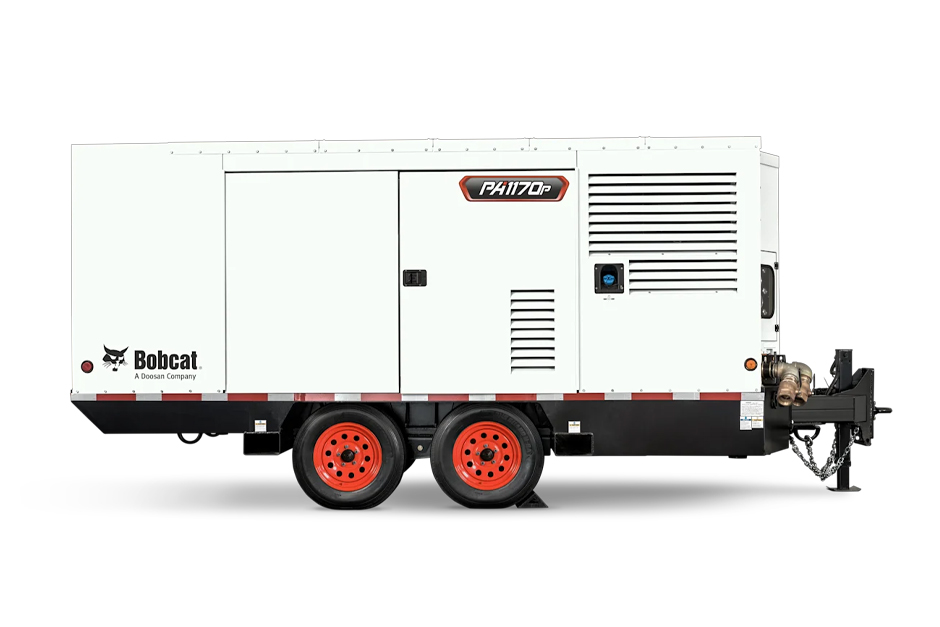

PA1170P
The Bobcat PA1170P delivers heavy-duty air power with adjustable pressure to fit your varied jobsite needs. Powered by the reliable CAT C13B engine, this newly redesigned towable compressor features a more compact design, an efficient airend with a wider pressure range, and best-in-class serviceability.
The PA1170P was engineered for maximum jobsite productivity with easy serviceability in mind. Large extra-wide doors and thoughtful placement of service items ensure minimal downtime during routine maintenance and on-the-job service.
The proprietary airend, custom designed for this machine, offers a highly efficient rotor profile that requires less horsepower to deliver the high-volume cfm output you need for big jobs. Yet the compact design makes it easy to maneuver around the jobsite with exceptional towability and cooling performance. It can also be mounted to a flatbed for easier transportation or long-term placement.
For specialized jobs requiring cleaner air, the PA1170P can be equipped with the patented IQ System, which adds an onboard aftercooler, a coalescing dual filtration system and an exclusive zero-discharge condensate removal system. These components work together to produce clean air that protects the tools downstream from contaminants, such as aerosol oil vapors and microscopic dust particles.
For heavy-duty jobs, rely on the Bobcat PA1170P to increase uptime and maximize your jobsite productivity.
Bobcat Portable Air Compressor Literature:
Features
- Large Extra-Wide Doors
- Proprietary Airend Custom Design
- Patented IQ System
PA1170P
Dimensions
-
- LENGTH W/ RUNNING GEAR
- 235 in
-
- WIDTH W/ RUNNING GEAR
- 90.1 in
-
- HEIGHT W/ RUNNING GEAR
- 102 in
-
- TRACK W/ WITH RUNNING GEAR
- 71 in
-
- TIRE SIZE W/ RUNNING GEAR
- 17.5 in
-
- LENGTH W/O RUNNING GEAR
- 209 in
-
- WIDTH W/O RUNNING GEAR
- 90.1 in
-
- HEIGHT W/O RUNNING GEAR
- 96.5 in
-
- SHIPPING WEIGHT W/ RUNNING GEAR
- 17,625 lb
-
- OPERATING WEIGHT W/ RUNNING GEAR
- 19,025 lb
-
- SHIPPING WEIGHT W/O RUNNING GEAR
- 16,650 lb
-
- OPERATING WEIGHT W/O RUNNING GEAR
- 18,050 lb
Engine
-
- ENGINE MAKE
- Caterpillar C13B
-
- EMISSIONS TIER
- Tier 4 Final
-
- DISPLACEMENT
- 763 in³
-
- SYSTEM VOLTAGE
- 24 V
Capacity
-
- FUEL TANK CAPACITY
- 200 gal
Operational
-
- RATED SPEED
- 1,825 rpm
-
- IDLE SPEED
- 1,300 rpm
Compressor
-
- RATED OPERATING PRESSURE
- 365 psig (25.1 bar)
-
- PRESSURE RANGE
- 140-365 psig (9.7-24.1 bar)
-
- AIR DISCHARGE OUTLET SIZE
- 3 in
