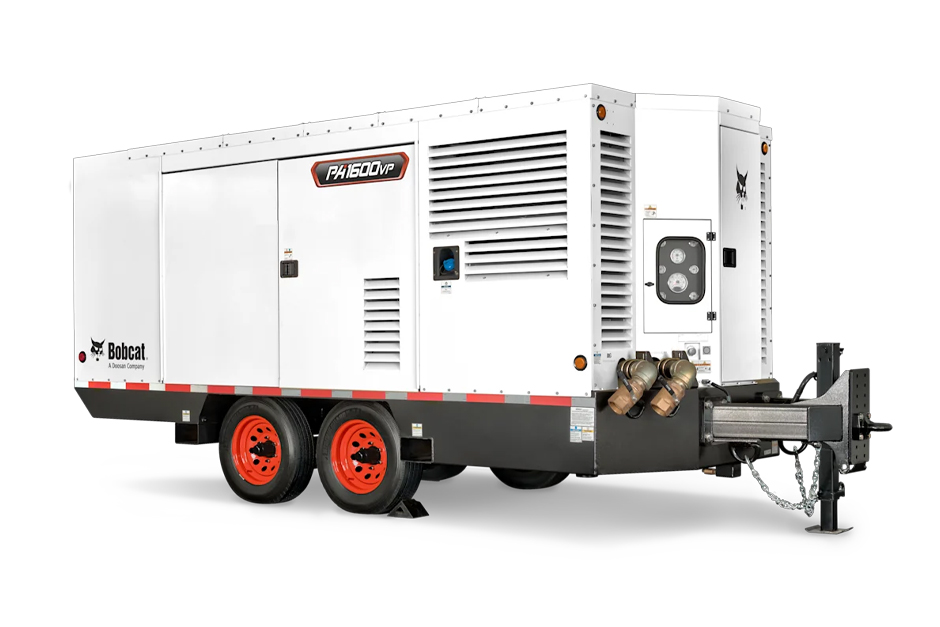

Bobcat PA1600VP (Cummins)
-
- Make
- Bobcat
-
- Category
- Bobcat Portable Air Compressors
-
- ROP
- 150/200 psig
-
- Rated Speed
- 1,850/1,600 rpm
-
- Weight
- 20,175 lb
-
- Emissions Tier
- Tier 4 Final
-
- Idle Speed
- 1,200 rpm
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo
PA1600VP CAT Engine
The Bobcat PA1600VP delivers heavy-duty air power that can be easily adjusted to fit your varied jobsite needs. Powered by your choice of engine – Cummins or CAT – this newly redesigned towable compressor features a compact footprint, an efficient airend with wider flow and pressure ranges, as well as best-in-class serviceability.
The PA1600VP was engineered for maximum jobsite productivity. Extra-wide doors and thoughtful placement of service items ensure minimal downtime during routine scheduled maintenance or on-the-job fixes. For jobs that include different applications, you can easily switch between two adjustable pressure settings – 150 or 200 psi – directly from the control panel.
Dual pressure technology from Bobcat gives you the versatile air power you need to maximize productivity on the jobsite. With the HI/LOW options on the control panel, you can easily choose between the two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
The proprietary airend, custom designed for this machine, offers a highly efficient rotor profile that requires less horsepower to deliver the high-volume cfm output you need for big jobs. Yet the compact design makes it easy to maneuver around the jobsite with exceptional towability and cooling performance. It can also be mounted to a flatbed for easier transportation.
For specialized jobs requiring cleaner air, the PA1600VP can be equipped with the patented IQ System®, which adds an onboard aftercooler, a coalescing dual filtration system and an exclusive zero-discharge condensate removal system. These components work together to produce clean air that protects the tools downstream from contaminants, such as aerosol oil vapors and microscopic dust particles.
Bobcat Portable Air Compressor Literature:
Features
- Compact Footprint
- Extra-Wide Doors
- Adjustable Pressure Settings
- Dual Pressure Technology
- Choice Of CAT Or Cummins Engine
- Patented IQ System
- Proprietary Airend Custom Design
PA1600VP CAT Engine
Dimensions
-
- LENGTH W/ RUNNING GEAR
- 235 in
-
- WIDTH W/ RUNNING GEAR
- 90.1 in
-
- HEIGHT W/ RUNNING GEAR
- 102 in
-
- TRACK W/ WITH RUNNING GEAR
- 71 in
-
- TIRE SIZE W/ RUNNING GEAR
- 17.5 in
-
- LENGTH W/O RUNNING GEAR
- 209 in
-
- WIDTH W/O RUNNING GEAR
- 90.1 in
-
- HEIGHT W/O RUNNING GEAR
- 96.5 in
-
- SHIPPING WEIGHT W/ RUNNING GEAR
- 18,775 lb
-
- OPERATING WEIGHT W/ RUNNING GEAR
- 20,175 lb
-
- SHIPPING WEIGHT W/O RUNNING GEAR
- 17,800 lb
-
- OPERATING WEIGHT W/O RUNNING GEAR
- 19,200 lb
Engine
-
- ENGINE MAKE
- Cummins QSX15
-
- EMISSIONS TIER
- Tier 4 Final
-
- DISPLACEMENT
- 912 in³
-
- SYSTEM VOLTAGE
- 24 V
Capacity
-
- FUEL TANK CAPACITY
- 200 gal
Operational
-
- RATED SPEED
- 1,850/1,600 rpm
-
- IDLE SPEED
- 1,200 rpm
Compressor
-
- RATED OPERATING PRESSURE
- 150/200 psig (10.3/13.8 bar)
-
- PRESSURE RANGE
- 80-200 psig (5.5-13.8 bar)
-
- AIR DISCHARGE OUTLET SIZE
- 3 in
