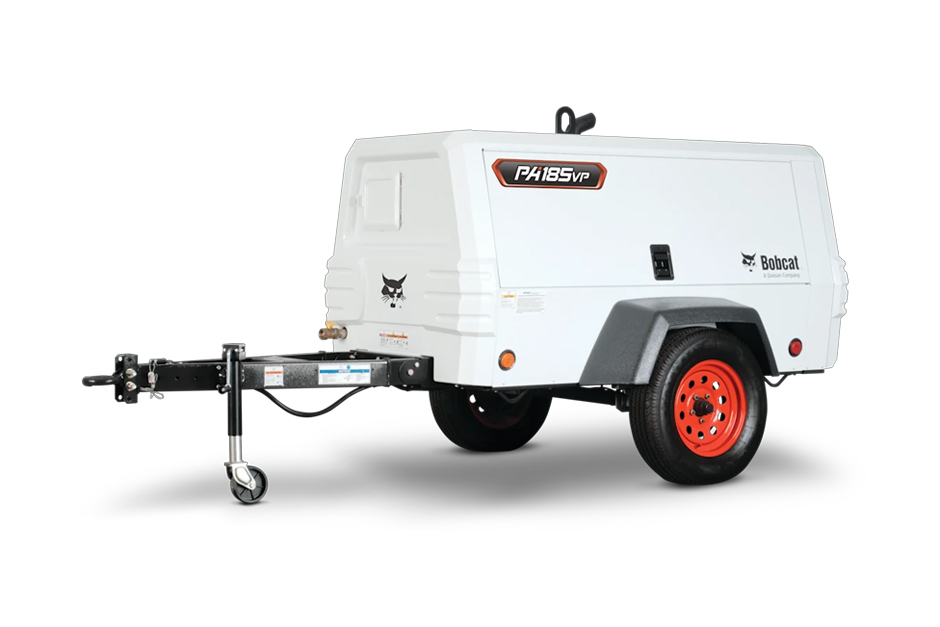

Bobcat PA185VP

PA185VP

The Bobcat PA185VP portable air compressor was designed for ultimate jobsite flexibility to maximize your productivity.

With the FlexAir System, you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor’s operational range. The FlexAir System gives you ultimate versatility to power a variety of jobsite applications all with a single machine.

The control panel, hose connections, spacious 8,700-cubic-inch toolbox and optional 4 kW generator with 120V duplex outlets are all safely located on the curb side of the air compressor.

The premium control panel’s intuitive design ensures ease of use, and the spin-on separator element makes for quick and easy maintenance without having to enter the separator tank itself.

Bobcat Portable Air Compressor Literature:

Download Bobcat Portable Air Compressor Literature

Features

• FlexAir System: Tool-Free Adjustable Air Power

Options

• 4 kW On-Board Generator With 120V Duplex Outlets

PA185VP

Dimensions

• LENGTH W/ RUNNING GEAR

  142.9 in

• WIDTH W/ RUNNING GEAR

  68.5 in

• HEIGHT W/ RUNNING GEAR

  67.5 in

• TRACK W/ WITH RUNNING GEAR

  60 in

• TIRE SIZE W/ RUNNING GEAR

  15 in

• LENGTH W/O RUNNING GEAR

  94.6 in

• WIDTH W/O RUNNING GEAR

  49.3 in

• HEIGHT W/O RUNNING GEAR

  56.3 in

• SHIPPING WEIGHT W/ RUNNING GEAR

  2,353 lb

• OPERATING WEIGHT W/ RUNNING GEAR

  2,594 lb

• SHIPPING WEIGHT W/O RUNNING GEAR

  2,143 lb

• OPERATING WEIGHT W/O RUNNING GEAR

  2,384 lb

Engine

• ENGINE MAKE

  Doosan D24

• EMISSIONS TIER

  Tier 4 Final

• DISPLACEMENT

  147 in³

• SYSTEM VOLTAGE

  12 V

Capacity

• FUEL TANK CAPACITY

  34.5 gal

Operational

• RATED SPEED

  2,550 rpm

• IDLE SPEED

  1,400 rpm

Compressor

• RATED OPERATING PRESSURE

  125 psig (8.6 bar)

• PRESSURE RANGE

  80-200 psig (5.5-13.7 bar)

• FLEXAIR FLOW RANGE

  184-165 cfm (5.2-4.7 m3/min.)

• AIR DISCHARGE OUTLET SIZE

  0.75 in
