< Bobcat Portable Air Compressors

Bobcat PA250V

  • Make
    Bobcat
  • Category
    Bobcat Portable Air Compressors
  • ROP
    100 psig
  • Rated Speed
    2,550 rpm
  • Weight
    2,594 lb
  • Emissions Tier
    Tier 4 Final
  • Idle Speed
    1,400 rpm
  • Condition
    New

Want to rent before you buy? SEE RENTALS

Request a Quote Book a Demo

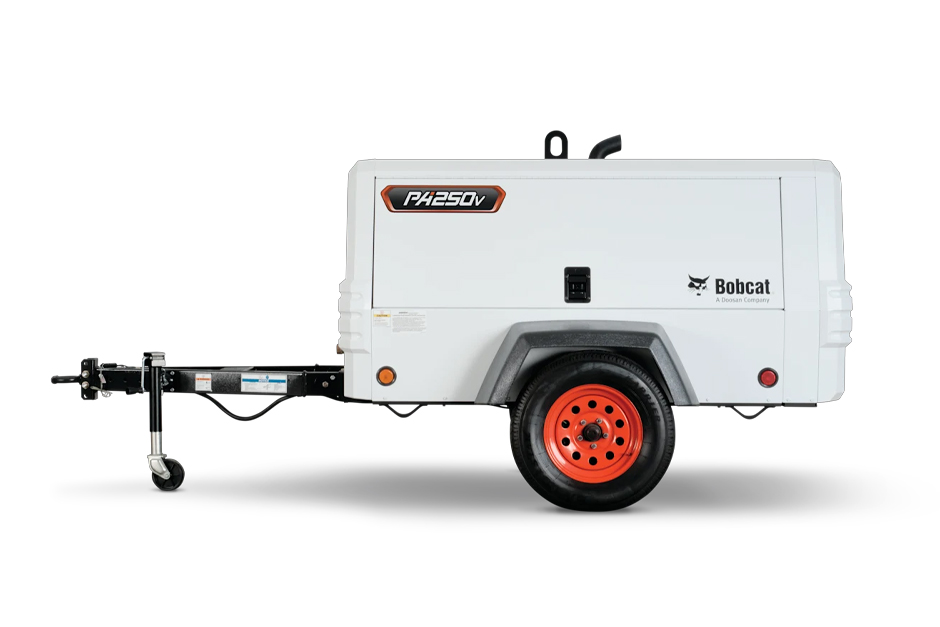

Bobcat PA250V Portable Air Compressor

PA250V

The ultra-versatile and ruggedly reliable Bobcat PA250V portable air compressor is the machine you need at the jobsite when you’ve got multiple air power needs.

With the FlexAir System, you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor’s operational range.

The PA250V can operate within a wide range of pressures and flows – from 250 cfm at 100 psi through 185 cfm at 175 psi – making it the perfect towable air compressor for jobs like sandblasting, construction or pneumatic tool operation. The FlexAir System gives you ultimate versatility to power a variety of jobsite applications all with a single machine.

The PA250V portable air compressor is powered by a Doosan D24 turbo diesel engine and engineered with emissions technology and zero-maintenance engine aftertreatment. The compact design and versatility of this model makes it a natural choice for a productive worksite.

Bobcat Portable Air Compressor Literature:

Download Bobcat Portable Air Compressor Literature

Features

  • FlexAir System: Tool-Free Adjustable Air Power

PA250V

Dimensions

  • LENGTH W/ RUNNING GEAR
    142.9 in
  • WIDTH W/ RUNNING GEAR
    68.5 in
  • HEIGHT W/ RUNNING GEAR
    67.5 in
  • TRACK W/ WITH RUNNING GEAR
    60 in
  • TIRE SIZE W/ RUNNING GEAR
    15 in
  • LENGTH W/O RUNNING GEAR
    94.6 in
  • WIDTH W/O RUNNING GEAR
    49.3 in
  • HEIGHT W/O RUNNING GEAR
    56.3 in
  • SHIPPING WEIGHT W/ RUNNING GEAR
    2,353 lb
  • OPERATING WEIGHT W/ RUNNING GEAR
    2,594 lb
  • SHIPPING WEIGHT W/O RUNNING GEAR
    2,143 lb
  • OPERATING WEIGHT W/O RUNNING GEAR
    2,384 lb

Engine

  • ENGINE MAKE
    Doosan D24
  • EMISSIONS TIER
    Tier 4 Final
  • DISPLACEMENT
    147 in³
  • SYSTEM VOLTAGE
    12 V

Capacity

  • FUEL TANK CAPACITY
    34.5 gal

Operational

  • RATED SPEED
    2,550 rpm
  • IDLE SPEED
    1,400 rpm

Compressor

  • RATED OPERATING PRESSURE
    100 psig (6.9 bar)
  • PRESSURE RANGE
    80-175 psig (5.5-12.0 bar)
  • FLEXAIR FLOW RANGE
    249-185 cfm (7.0-5.2 m3/min.)
  • AIR DISCHARGE OUTLET SIZE
    0.75 in
