Bobcat PA450VP
-
- Make
- Bobcat
-
- Category
- Bobcat Portable Air Compressors
-
- ROP
- 150/200 psig
-
- Rated Speed
- 2,500/2,250 rpm
-
- Weight
- 4,776 lb
-
- Emissions Tier
- Tier 4 Final
-
- Idle Speed
- 1,500 rpm
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo

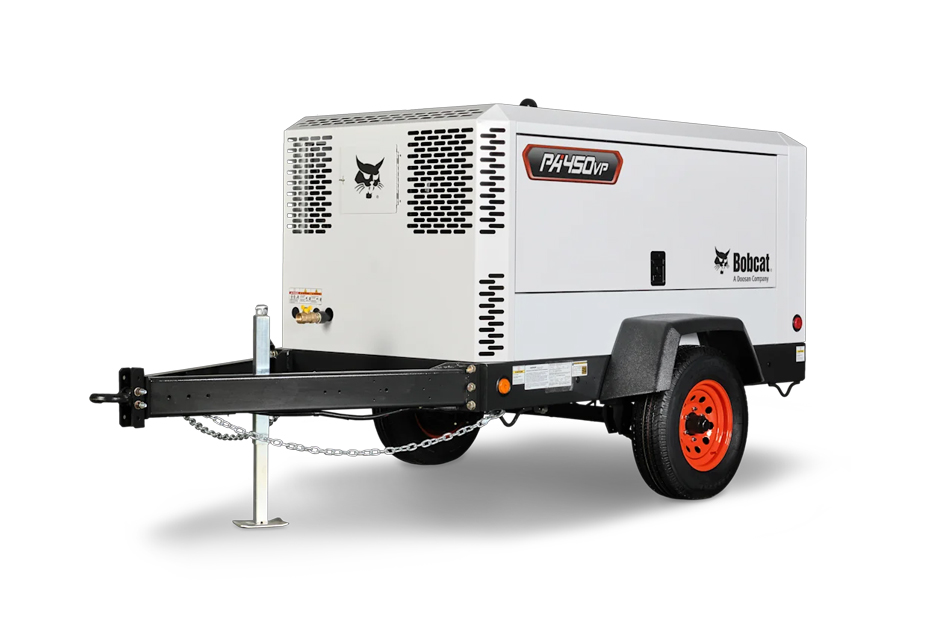

PA450VP
The Bobcat PA450VP portable air compressor offers two-in-one versatility thanks to its dual pressure/airflow capability, which delivers either low airflow with high pressure or low pressure and high flow. Operators can make the adjustment on the fly (while the compressor is operating) with a single switch on the intuitively designed control panel. It’s an ideal setup for jobsites requiring support of multiple applications.
The dual pressure technology from Bobcat gives you the versatile air power you need to maximize productivity. With the HI/LOW options on the control panel, you can easily select between the two adjustable air flow and air pressure combinations to power multiple applications (without needing multiple compressors).
Service points on the PA450VP are easily accessible – and its simplified wiring and piping design makes servicing even easier. Automatic shutdowns (relative to several critical operational parameters) help avoid costly damage and subsequent repairs, increasing your overall uptime and productivity.
Bobcat Portable Air Compressor Literature:
Features
- Large Access Doors For Easy Serviceability
- Programmable HI/LO Pressure Options
- Cummins Performance Series Engine
PA450VP
Dimensions
-
- LENGTH W/ RUNNING GEAR
- 154.2 in
-
- WIDTH W/ RUNNING GEAR
- 78.2 in
-
- HEIGHT W/ RUNNING GEAR
- 73.3 in
-
- TRACK W/ WITH RUNNING GEAR
- 66.6 in
-
- TIRE SIZE W/ RUNNING GEAR
- 15 in
-
- LENGTH W/O RUNNING GEAR
- 107 in
-
- WIDTH W/O RUNNING GEAR
- 60.7 in
-
- HEIGHT W/O RUNNING GEAR
- 61 in
-
- SHIPPING WEIGHT W/ RUNNING GEAR
- 4,334 lb
-
- OPERATING WEIGHT W/ RUNNING GEAR
- 4,776 lb
-
- SHIPPING WEIGHT W/O RUNNING GEAR
- 4,071 lb
-
- OPERATING WEIGHT W/O RUNNING GEAR
- 4,513 lb
Engine
-
- ENGINE MAKE
- Cummins F3.8L
-
- EMISSIONS TIER
- Tier 4 Final
-
- DISPLACEMENT
- 231 in³
-
- SYSTEM VOLTAGE
- 24 V
Capacity
-
- FUEL TANK CAPACITY
- 60 gal
Operational
-
- RATED SPEED
- 2,500/2,250 rpm
-
- IDLE SPEED
- 1,500 rpm
Compressor
-
- RATED OPERATING PRESSURE
- 150/200 psig (10.3/13.8 bar)
-
- PRESSURE RANGE
- 80-225 psig (5.5-15.5 bar)
-
- AIR DISCHARGE OUTLET SIZE
- 1.25 in
