Bobcat PA750P
-
- Make
- Bobcat
-
- Category
- Bobcat Portable Air Compressors
-
- ROP
- 350 psig
-
- Rated Speed
- 1,800 rpm
-
- Weight
- 12,015 lb
-
- Emissions Tier
- Tier 4 Final
-
- Idle Speed
- 1,350 rpm
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo

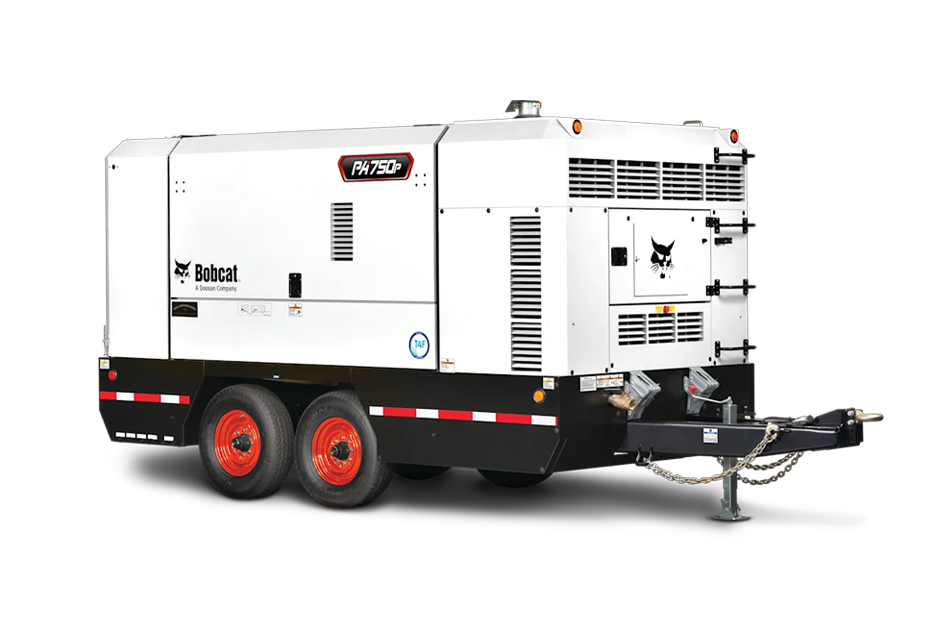

PA750P
With the Bobcat PA750P portable air compressor, you get a durable, reliable and powerful machine designed for easy operation – and even easier serviceability.
This heavy-duty, towable air compressor features a completely redesigned enclosure that maximizes your jobsite productivity. Engineered for the everyday operator, it offers the best servicing capabilities in the industry, along with intuitive features and legendary Bobcat innovation.
The PA750P designed with serviceability in mind, has two large doors that offer easy access to key service components. Enabling you to get back on the job and maximize uptime.
Fluid system maintenance is just as easy on the PA750P with a built-in central drainage system. The centralized tubing and valve system drains let you easily drain fluids from the radiator and oil and fuel tanks to a central location, without having to crawl under the machine.
Built for rugged reliability in harsh conditions, the PA750P features a heavy-gauge steel enclosure, heavy-duty tandem-axle running gear for easy towing, and a construction-grade pedestal jack stand.
Bobcat Portable Air Compressor Literature:
Features
- Cummins Performance Series Engine
- Built-In Central Drainage System
- Heavy-Gauge Steel Enclosure
- Heavy-Duty Tandem-Axle Running Gear
- Construction-Grade Pedestal Jack Stand
Options
- IQ System® For Cleaner And Drier Air
PA750P
Dimensions
-
- LENGTH W/ RUNNING GEAR
- 226.6 in
-
- WIDTH W/ RUNNING GEAR
- 82.6 in
-
- HEIGHT W/ RUNNING GEAR
- 101.3 in
-
- TRACK W/ WITH RUNNING GEAR
- 68.2 in
-
- TIRE SIZE W/ RUNNING GEAR
- 16 in
-
- LENGTH W/O RUNNING GEAR
- 171 in
-
- WIDTH W/O RUNNING GEAR
- 83 in
-
- HEIGHT W/O RUNNING GEAR
- 95 in
-
- SHIPPING WEIGHT W/ RUNNING GEAR
- 11,023 lb
-
- OPERATING WEIGHT W/ RUNNING GEAR
- 12,015 lb
-
- SHIPPING WEIGHT W/O RUNNING GEAR
- 9,855 lb
-
- OPERATING WEIGHT W/O RUNNING GEAR
- 11,177 lb
Engine
-
- ENGINE MAKE
- Cummins L9
-
- EMISSIONS TIER
- Tier 4 Final
-
- DISPLACEMENT
- 543 in³
-
- SYSTEM VOLTAGE
- 24 V
Capacity
-
- FUEL TANK CAPACITY
- 128 gal
Operational
-
- RATED SPEED
- 1,800 rpm
-
- IDLE SPEED
- 1,250 rpm
Compressor
-
- RATED OPERATING PRESSURE
- 350 psig (24.1 bar)
-
- PRESSURE RANGE
- 140-365 psig (9.7-25.1 bar)
-
- AIR DISCHARGE OUTLET SIZE
- 3 in
