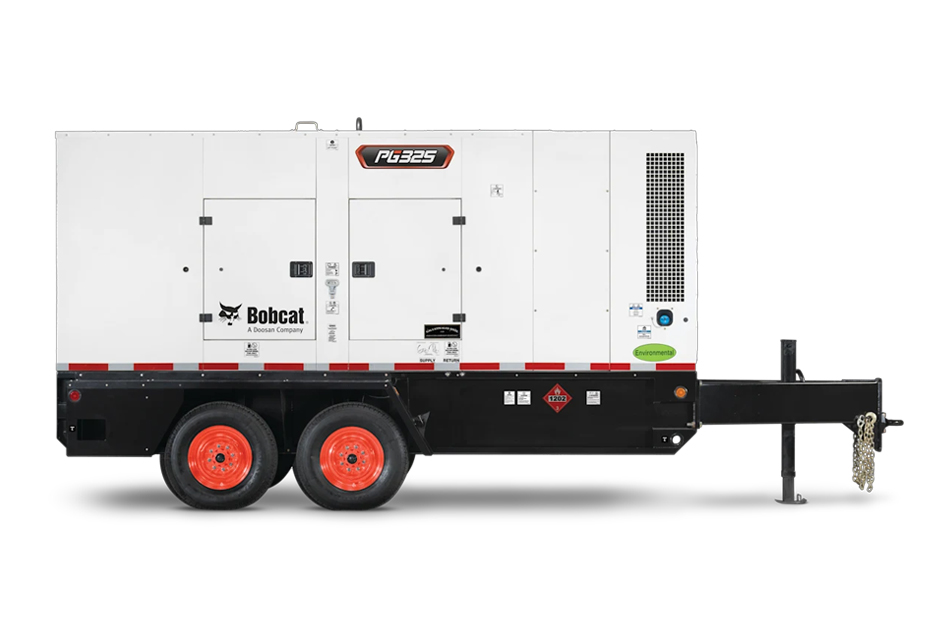

Bobcat PG325

PG325

Bobcat brings you the coolest and quietest mid-range heavy-duty power package on the market with the PG325 portable generator. At 100% load, the PG325 delivers 334kVA (267 kW) at an impressively quiet 76 dB(A), even with the optional variable speed fan. Capable of operating in the harshest conditions paired with the ability to run in parallel alongside additional units, the PG325 will keep you up and running as long as it takes to get the job done.

The innovative and optional Tundra Package ensures reliable startup in temperatures as low as -40˚F and includes a coolant heater, oil pan heater, battery charger, battery heater pad and heated breather hose.

Powered by a fuel-efficient Cummins QSL9 engine with improved fuel economy, the PG325 gives you a 24-hour runtime at 100% load. The upsized alternator with AREP excitation protects against overload and short-circuits, while offering voltage stability and greater motor starting capability.

For ease-of-use and improved safety for both operator and machine, the PG325 features an analog control panel that has been enhanced with large, brightly lit meters for quick monitoring. This easy-to-read control panel displays onboard engine diagnostics and includes all the necessary controls and indicators required to operate and maintain the after-treatment regeneration system. A run/idle switch on the control panel also helps reduce engine wear during startup in cold temperatures.

Bobcat Portable Generator Literature:

Download Bobcat Portable Generator Literature

Features

• Enhanced Analog Control Panel
• Run/Idle Switch
• Built-In Voltage Selector Switch
• Dual Frequency Capabilities
• Upsized Alternator With AREP Excitation
• More Power Wiring Connections

Options

• Camlock Panel
• Tundra Package
• Variable Speed Fan

PG325

Dimensions

• LENGTH

  240 in

• WIDTH

  83 in

• HEIGHT

  113 in

• WEIGHT

  14,032 lb

Engine

• ENGINE MAKE

  Cummins QSL9-G9

• DISPLACEMENT

  8.9 L

• EMISSIONS TIER LEVEL

  Tier 4 Final

• BATTERY VOLTAGE

  24 VDC

• RUNTIME @ 75% LOAD

  22.5 hr

• AFTERTREATMENT TECH

  DOC / SCR

Capacities

• FUEL TANK CAPACITY

  480 gal

• DIESEL EXHAUST FLUID CAPACITY

  24 gal

Prime Power Rating

• @ 480V-3-PHASE, 0.8PF, 60Hz

  334 kVA (267 kW), 401 Amps

• @ 240V-3-PHASE, 0.8PF, 60Hz

  334 kVA (267 kW), 803 Amps

• @ 208V-3-PHASE, 0.8PF, 60Hz

  316 kVA (253 kW), 877 Amps

• @ 240V-SINGLE-PHASE, 1.0PF, 60Hz

  197 kVA (197 kW), 821 Amps

• @ 120V-SINGLE-PHASE, 1.0PF, 60Hz

  197 kVA (197 kW), 821 x 2 Amps

• @ 400V-3-PHASE, 0.8PF, 50H

  280 kVA (224 kW), 404 Amps

• POWER OUTPUT @ 1,800 RPM

  393 hp

• SOUND LEVEL

  76 dB(A)

• FREQUENCY CAPABILITY

  50Hz/60Hz Switchable

• VOLTAGE CONFIGURATION

  Link Board Panel
