Bobcat PG70

PG70

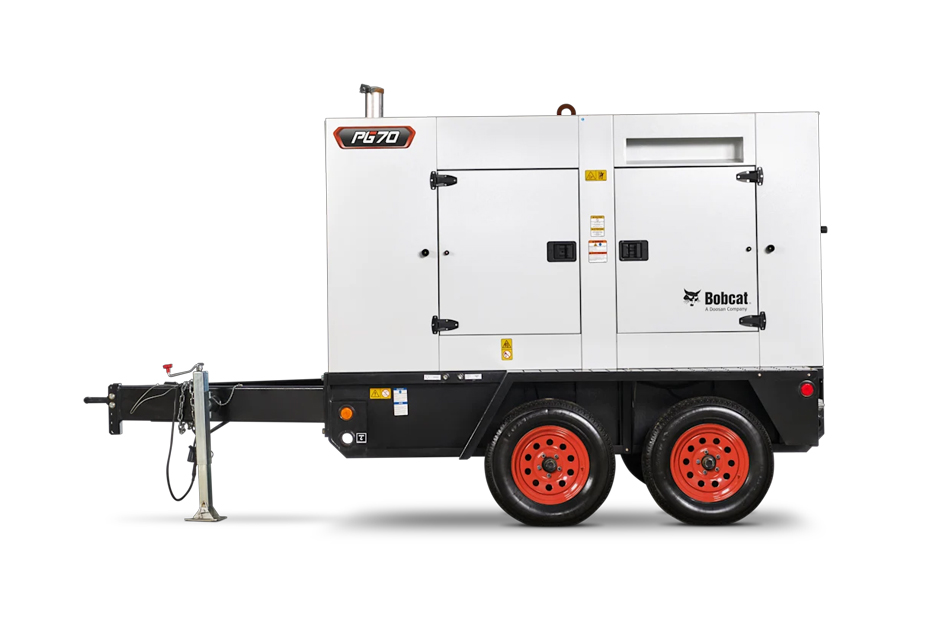

The compact Bobcat PG70 portable generator was engineered to provide ultimate reliability, low total cost of ownership and unmatched serviceability. A true towable generator, the PG70 boasts tough running gear and a hardened galvanized steel enclosure that can stand up to the harshest environments. It’s also one of the quietest portable generators in its class.

Giving you the jobsite versatility you need, the PG70 comes equipped with a dual-frequency switch, allowing you to switch between 50Hz or 60Hz depending on your application needs. The easy-to-use operator interface features an analog display of key engine and generator parameters that makes it easy to monitor performance at a glance.

The PG70 comes powered by a Cummins F3.8 engine that delivers great fuel economy and performance, while ensuring compliance with the latest emissions standards.  The Stamford alternator provides excellent motor starting capability, stable voltage regulation and fast transient response. The optional Intelligent Load Management System – exclusive to Bobcat – helps significantly reduce wet stacking, sludge buildup and engine damage when operating at low load.

With innovative safety features, industry-leading serviceability and user-friendly controls, the PG70 portable generator provides unmatched versatility to support a wide range of applications.

Bobcat Portable Generator Literature:

Download Bobcat Portable Generator Literature

Features

• Hardened Galvanized Steel Enclosure
• Easy-To-Use Operator Interface
• Analog Display
• Stamford Alternator

Options

• Intelligent Load Management System

PG70

Dimensions

• LENGTH

  166.1 in

• WIDTH

  72.5 in

• HEIGHT

  94.7 in

• WEIGHT

  6,550 lb

Engine

• ENGINE MAKE

  Cummins/F3.8

• DISPLACEMENT

  3.8 L

• EMISSIONS TIER LEVEL

  Tier 4 Final

• BATTERY VOLTAGE

  12 VDC

• RUNTIME @ 75% LOAD

  50 hr

• AFTERTREATMENT TECH

  DOC / SCR / DPF

Capacities

• FUEL TANK CAPACITY

  172 gal

• DIESEL EXHAUST FLUID CAPACITY

  14.7 gal

Prime Power Rating

• @ 480V-3-PHASE, 0.8PF, 60Hz

  70 kVA (56 kW), 84 Amps

• @ 240V-3-PHASE, 0.8PF, 60Hz

  70 kVA (56 kW), 168 Amps

• @ 208V-3-PHASE, 0.8PF, 60Hz

  70 kVA (56 kW), 194 Amps

• @ 240V-SINGLE-PHASE, 1.0PF, 60Hz

  50 kVA (50 kW), 208 Amps

• @ 120V-SINGLE-PHASE, 1.0PF, 60Hz

  50 kVA (50 kW), 208 x 2 Amps

• @ 400V-3-PHASE, 0.8PF, 50H

  65 kVA (52 kW), 94 Amps

• POWER OUTPUT @ 1,800 RPM

  84 hp

• SOUND LEVEL

  65 dB(A)

• FREQUENCY CAPABILITY

  50Hz/60Hz Switchable

• VOLTAGE CONFIGURATION

  3-Position Switch
