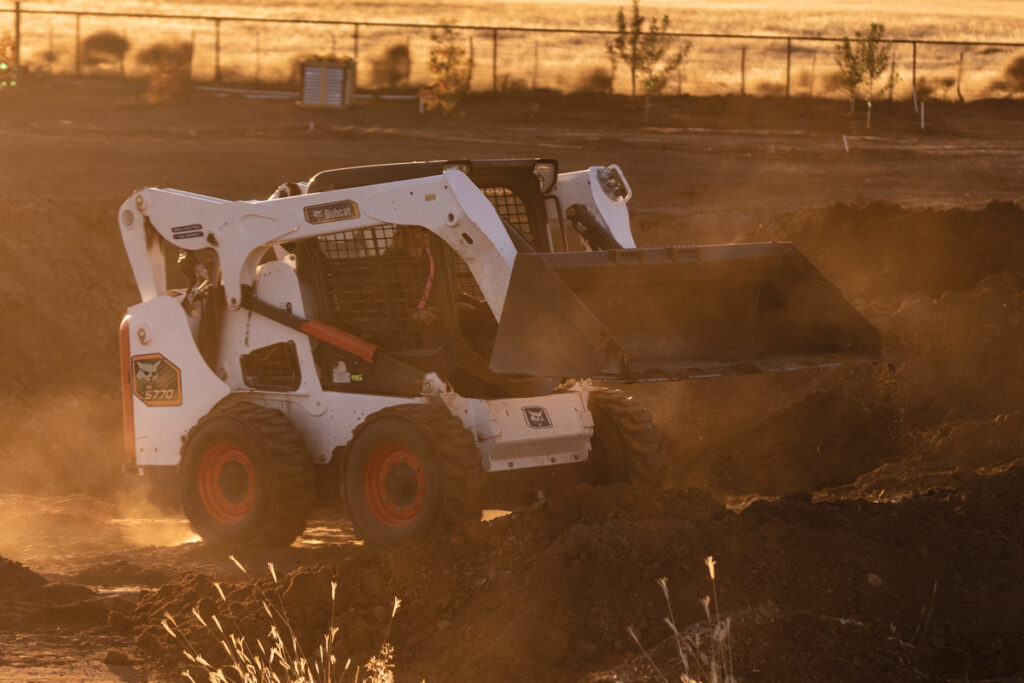

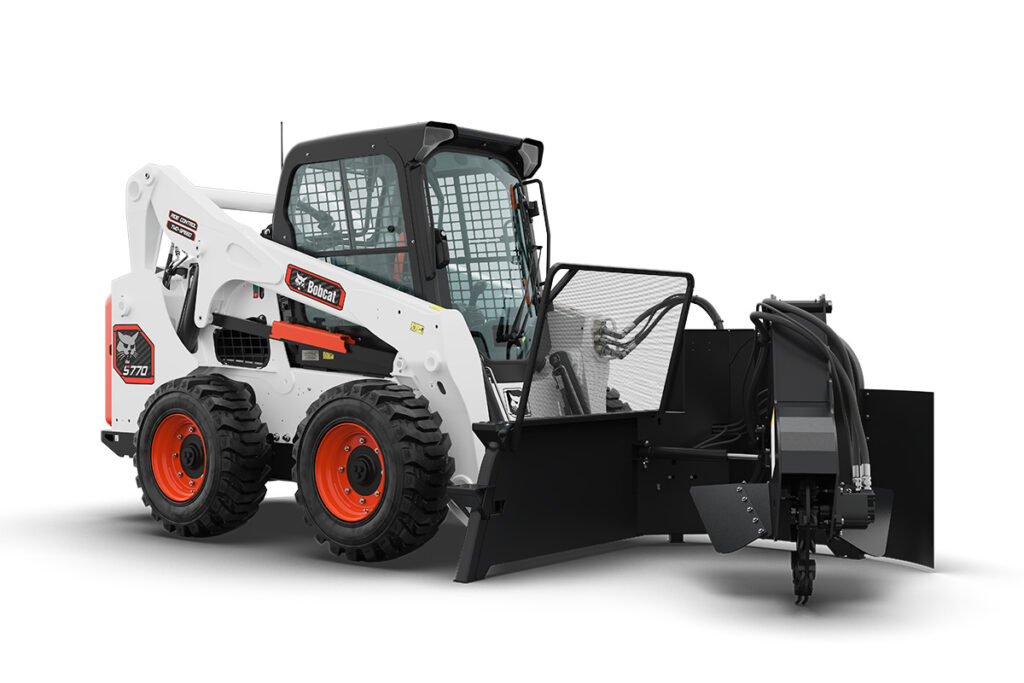

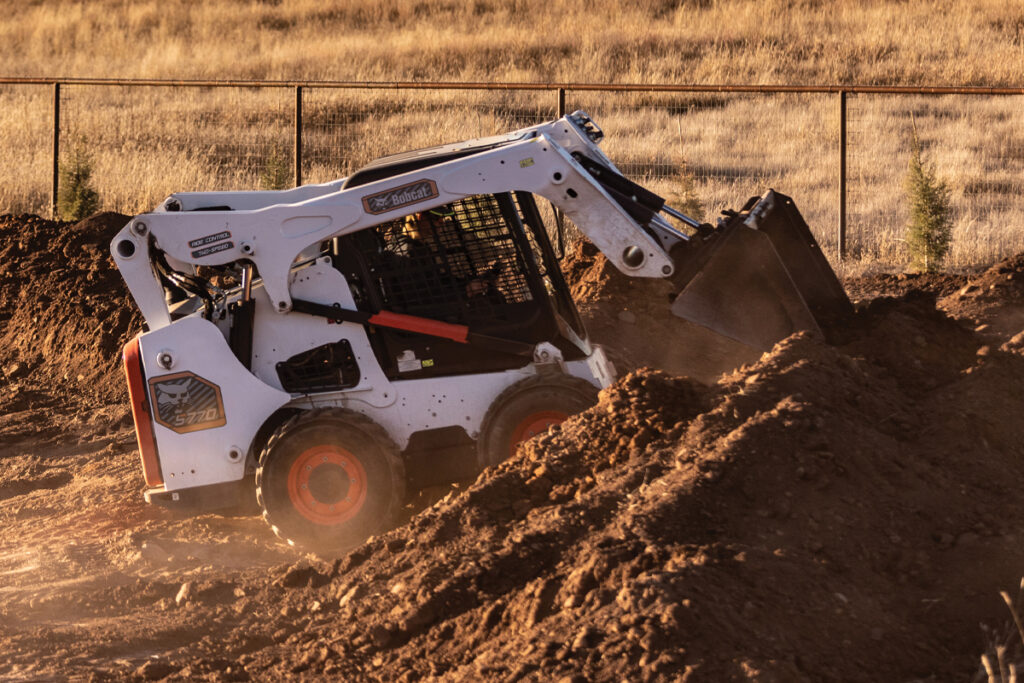

Bobcat S770 Classic Skid-Steer Loader

For high-output applications that demand serious lifting power and speed, the Bobcat S770 Classic skid-steer loader delivers the performance contractors rely on. Equipped with a 92-horsepower engine, a 3,350 lb rated operating capacity and an impressive 11-foot lift height, the S770 is engineered for heavy material handling, truck loading and large-scale jobsite productivity. Its vertical lift design provides excellent reach at full height, while powerful hydraulics and an available high-flow option allow operators to run demanding attachments like trenchers, mulchers and stump grinders with ease. Built for hard surfaces such as roads, parking lots and driveways, this skid-steer loader excels in construction, snow removal and municipal work.

Productivity stays high with features designed to minimize downtime and maximize efficiency. The S770 includes standard two-speed travel for faster movement across jobsites, helping crews reposition quickly and maintain steady workflow. A non-DPF engine eliminates regeneration, reducing maintenance interruptions and keeping the machine working longer. Operators benefit from selectable joystick controls, the Power Bob-Tach® system for quick attachment changes and a deluxe display with rearview camera integration for improved visibility and control. Combining durability, simplified operation and strong breakout performance, the Bobcat S770 is a dependable, high-capacity skid-steer loader built to handle demanding workloads day after day.

Standard Deluxe Display with optional integrated rearview camera available on select packages starting mid-year 2026.

Classic Series Skid-Steer Loader Literature:

Download Classic Series Compact Loader Brochure

Download Bobcat Attachments Catalogue

Features

  • Adjustable Seat
  • Backup Alarm
  • BICS System (Interlock)
  • Operating Lights
  • Parking Brake
  • Turbocharged Engine
  • Rear Window
  • Top Window
  • Lift-Arm Support
  • Seat Belt
  • Suspension Seat
  • Two Speed Travel
  • Engine Shutdown
  • Auxiliary Hydraulics
  • Spark Arrestor Muffler
  • Bob-Tach™ Attachment System
  • Horn

Bobcat S770 Classic Skid-Steer Loader

Dimensions

  • LENGTH
    114.3 in
  • LENGTH WITH BUCKET
    141.6 in
  • HEIGHT
    81.3 in
  • WIDTH
    72.1 in
  • WIDTH WITH BUCKET
    74 in
  • WEIGHT
    9,314 lb
  • HEIGHT TO BUCKET PIN
    131.4 in
  • WHEELBASE
    48.3 in
  • TURNING RADIUS
    85.8 in
  • REACH AT MAX HEIGHT
    33.6 in

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    92 hp
  • ENGINE MODEL
    D34 NAP T4 92 HP DL03-LEL02
  • FUEL TYPE
    Diesel
  • FUEL TANK CAPACITY
    23.9 gal
  • COOLING
    Liquid

Hydraulics

  • AUXILIARY STD FLOW
    23 gpm
  • AUXILIARY HIGH FLOW
    36.6 gpm
  • SYSTEM RELIEF @ QUICK COUPLERS
    3,500 psi

Performance

  • RATED OPERATING CAPACITY
    3,350 lb
  • TIPPING LOAD
    6,700 lb
  • TRAVEL SPEED (1-SPEED)
    11.4 km/h
  • TRAVEL SPEED - LOW - (2-SPEED)
    11.4 km/h
  • TRAVEL SPEED - HIGH - (2-SPEED)
    19.8 km/h

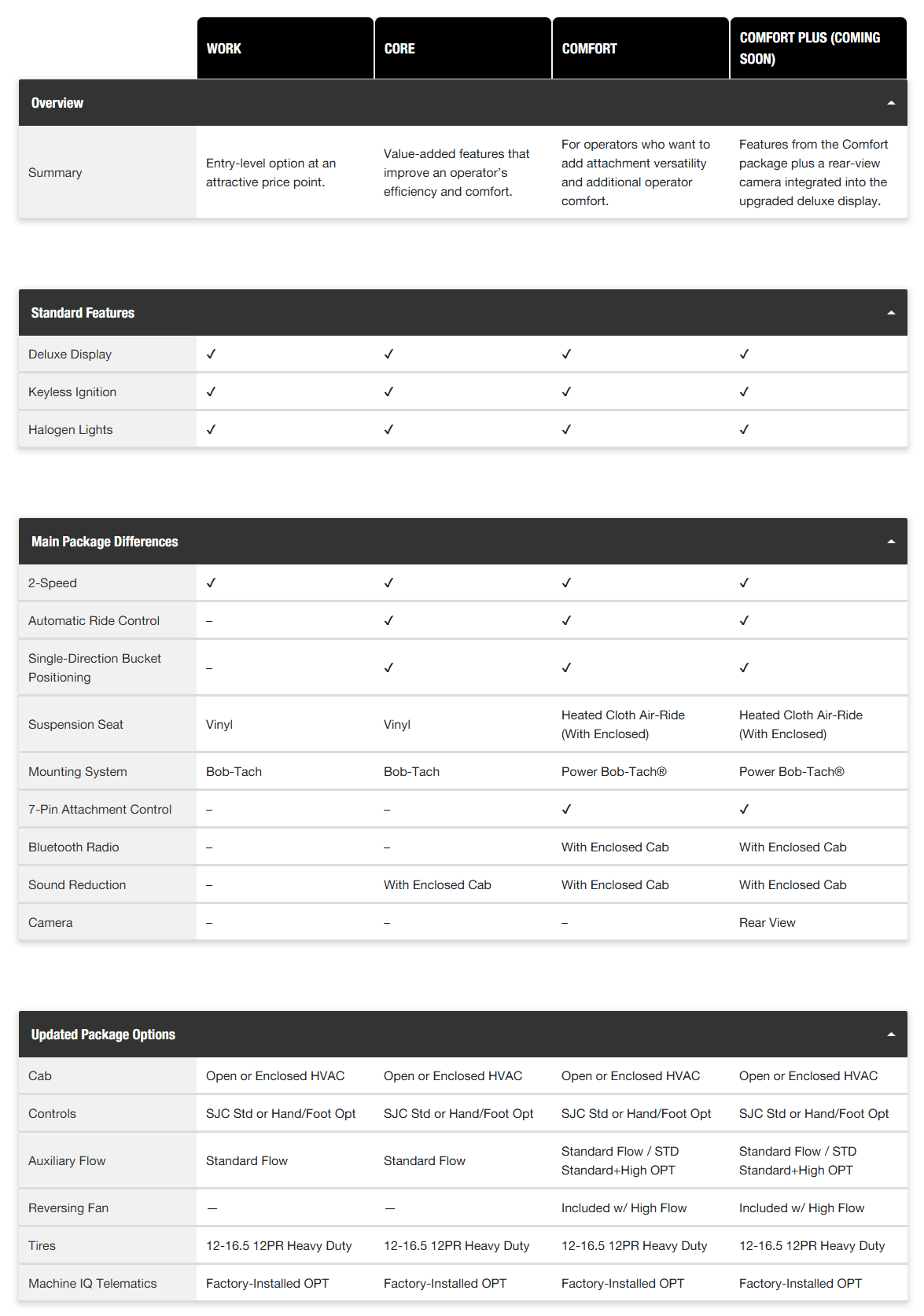

WORK Entry-level option at an attractive price point.
CORE Value-added features that improve an operator’s efficiency and comfort.
COMFORT For operators who want to add attachment versatility and additional operator comfort.
COMFORT PLUS (COMING SOON) Features from the Comfort package plus a rear-view camera integrated into the upgraded deluxe display.
Deluxe Display
Keyless Ignition
Halogen Lights
2-Speed
Automatic Ride Control
–
Single-Direction Bucket Positioning
–
Suspension Seat
Vinyl
Vinyl
Heated Cloth Air-Ride (With Enclosed)
Heated Cloth Air-Ride (With Enclosed)
Mounting System
Bob-Tach
Bob-Tach
Power Bob-Tach®
Power Bob-Tach®
7-Pin Attachment Control
–
–
Bluetooth Radio
–
–
With Enclosed Cab
With Enclosed Cab
Sound Reduction
–
With Enclosed Cab
With Enclosed Cab
With Enclosed Cab
Camera
–
–
–
Rear View
Cab
Open or Enclosed HVAC
Open or Enclosed HVAC
Open or Enclosed HVAC
Open or Enclosed HVAC
Controls
SJC Std / Hand & Foot Option
SJC Std / Hand & Foot Option
SJC Std / Hand & Foot Option
SJC Std / Hand & Foot Option
Auxiliary Flow
Standard Flow
Standard Flow
High Flow Option
High Flow Option
Reversing Fan
–
–
Included With High Flow
Included With High Flow
Tires
12-16.5 12PR Heavy Duty
12-16.5 12PR Heavy Duty
12-16.5 12PR Heavy Duty
12-16.5 12PR Heavy Duty
Machine IQ Telematics
Factory-Installed Opt
Factory-Installed Opt
Factory-Installed Opt
Factory-Installed Opt
