Clamp – Excavator

Hydraulic Clamp

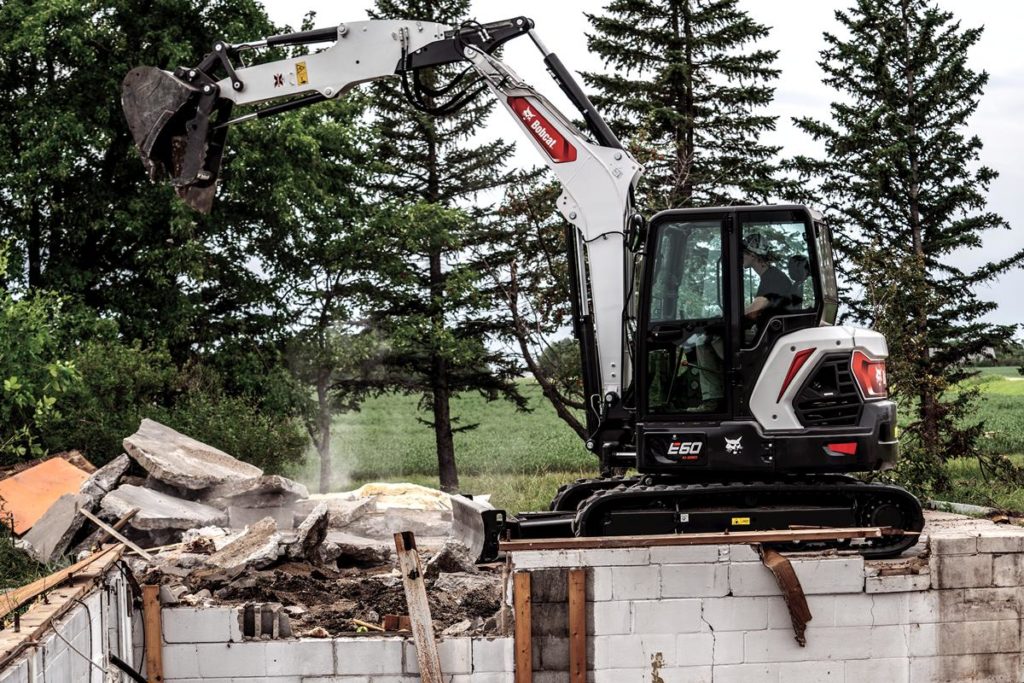

Designed for the Bobcat excavator line, the reach of the boom and arm easily maneuvers the clamp attachment into hard-to-reach areas and allows you to be more selective with the objects you want to move. It features a duel-tooth design for maximum grabbing capability when moving odd-shaped objects and debris and it fully retracts back to the arm when not in use. Put it to work with a trenching bucket or three-tine grapple and make moving tree stumps and broken concrete a breeze. Clamp, lift, move and place more debris quicker and easier with the power of the clamp attachment.

Used For

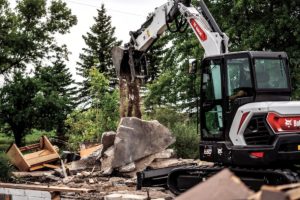

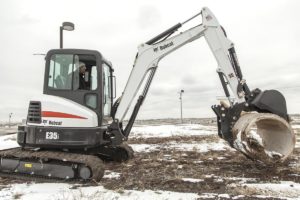

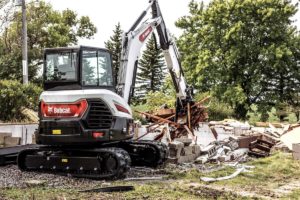

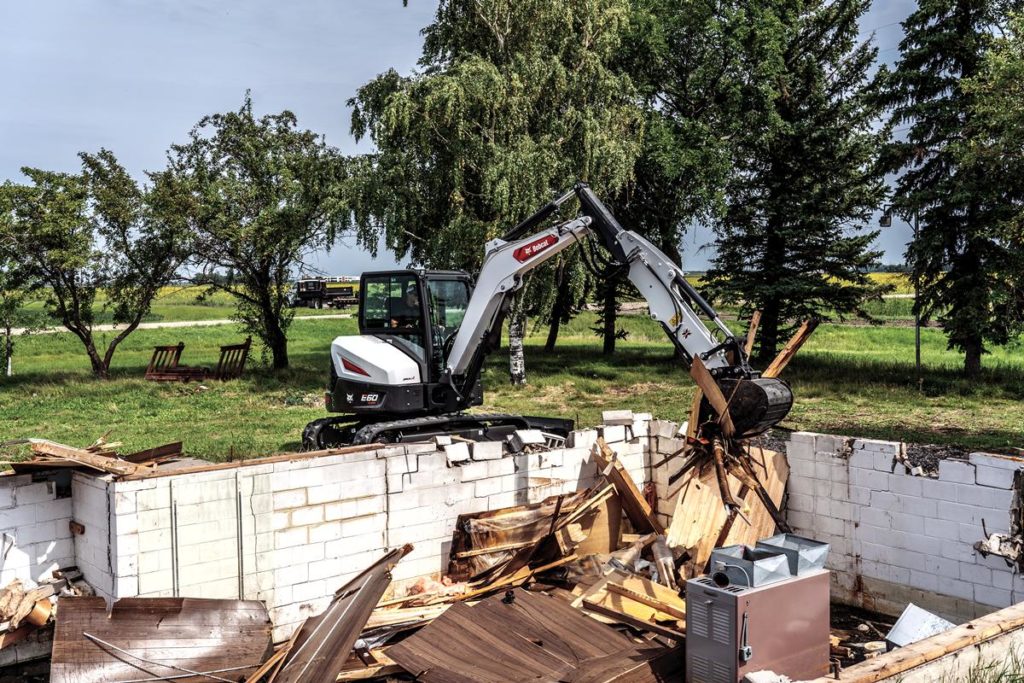

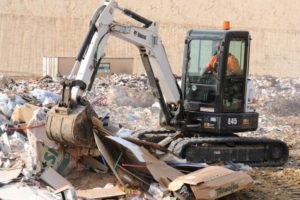

• Moving tree stumps, broken concrete & odd-shaped objects
• Carrying trees and removing unwanted brush

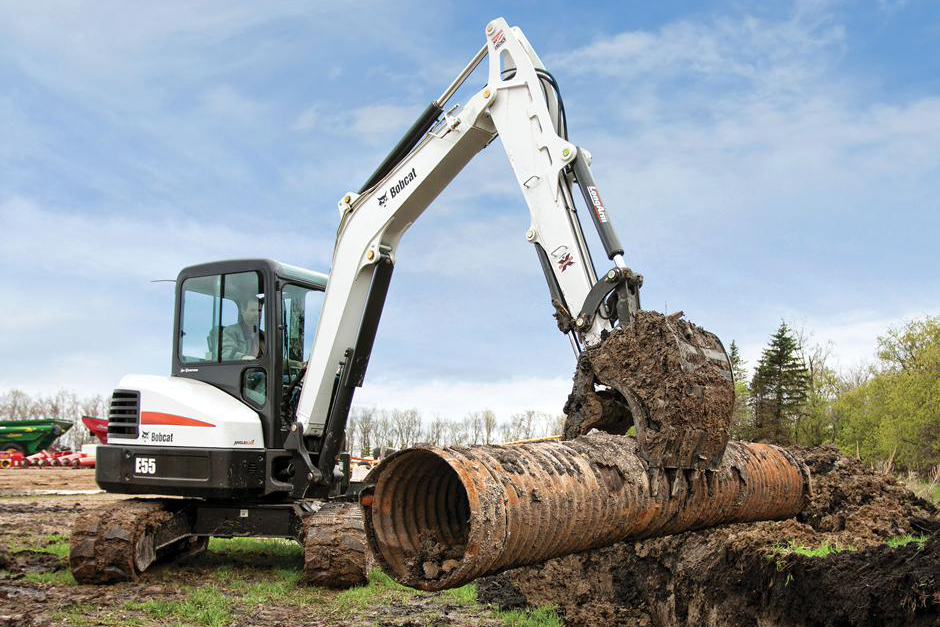

• Unloading pipe and lumber & separating timber piles

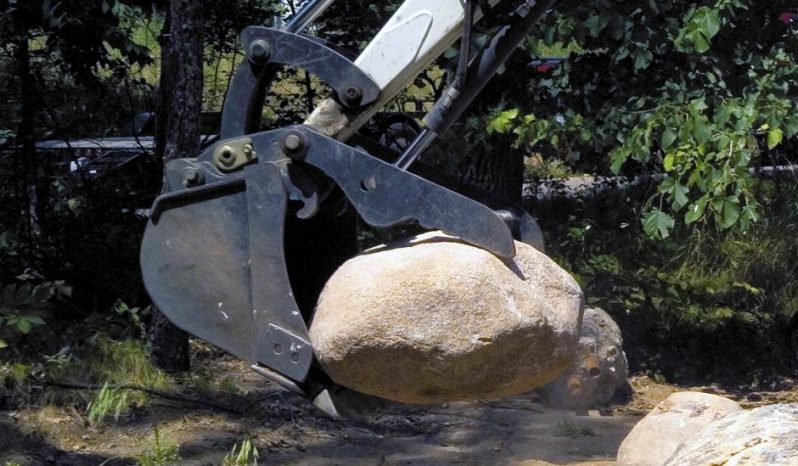

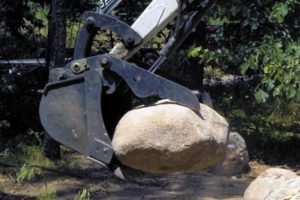

• Lifting and placing landscaping boulders
• Placing rock to build retaining walls

Features

• Duel-Tooth Design: Maximizes odd-shaped object clamping capabilities.

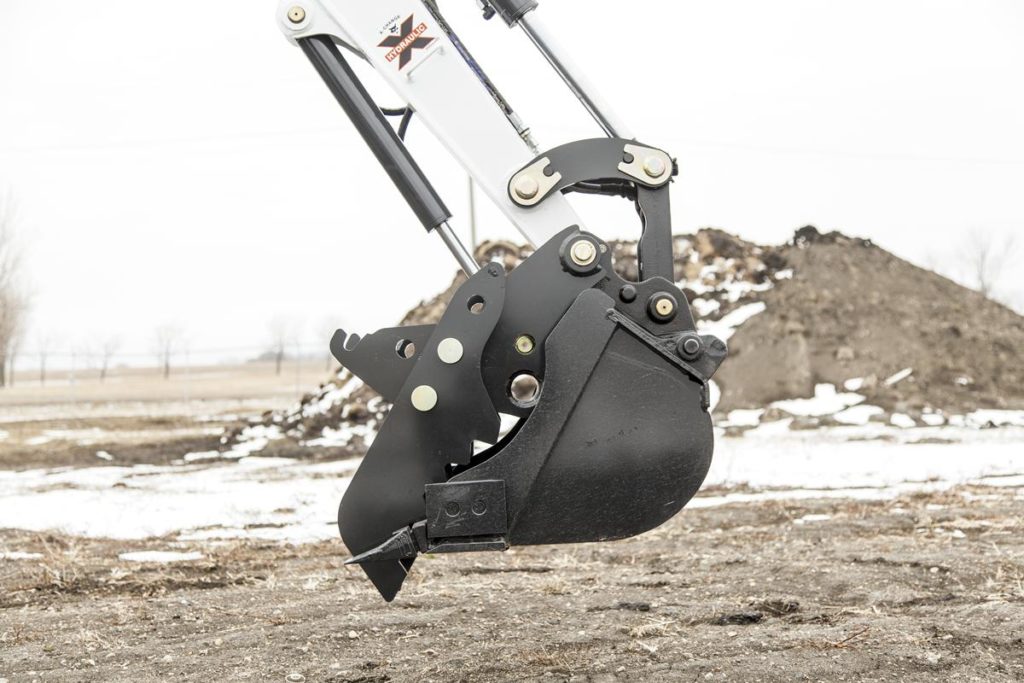

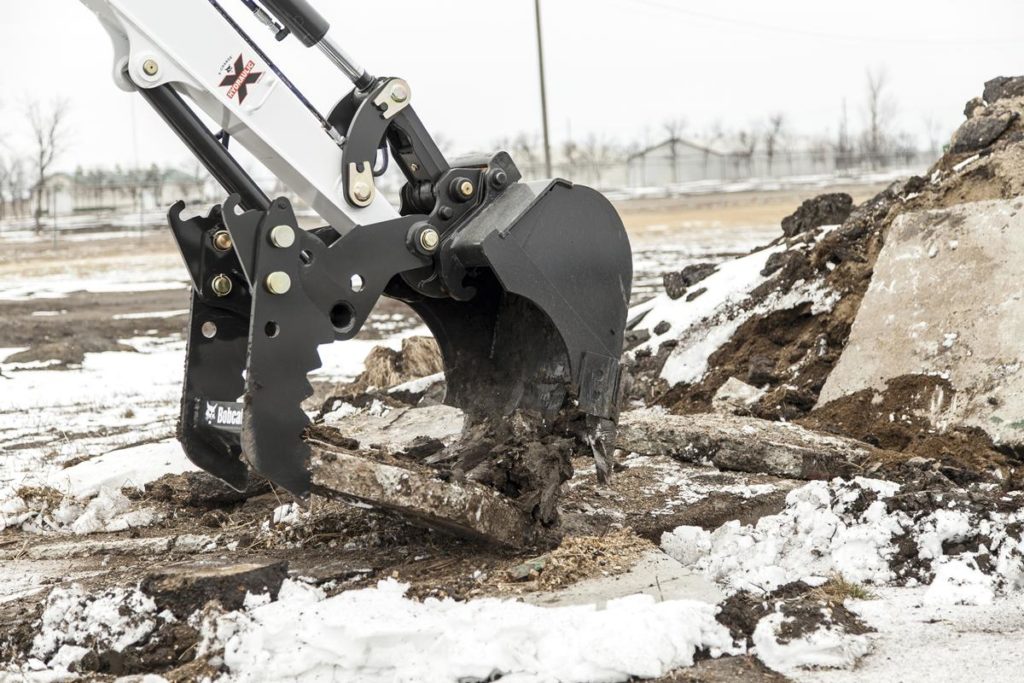

• Clamp Retraction: When not in use, the clamp retracts fully back against the arm.
• Versatility: Can be used with the trenching bucket and 3-tined grapple attachments.

Hydraulic Clamp

Hydraulic Clamp - E20

• WEIGHT

  50 lb

• WIDTH

  5.5 in

• TOOTH RADIUS

  19.8 in

• TOOTH THICKNESS

  0.5 in

Hydraulic Clamp - E26

• WEIGHT

  126 lb

• WIDTH

  13 in

• TOOTH RADIUS

  27.2 in

• TOOTH THICKNESS

  0.75 in

Hydraulic Clamp - Long Arm - E32/E35

• WEIGHT

  126 lb

• WIDTH

  13 in

• TOOTH RADIUS

  27.2 in

• TOOTH THICKNESS

  0.75 in

Hydraulic Clamp - Long Arm - E42

• WEIGHT

  171 lb

• WIDTH

  14.4 in

• TOOTH RADIUS

  27.2 in

• TOOTH THICKNESS

  0.75 in

Hydraulic Clamp - Long Arm - E50

• WEIGHT

  218 lb

• WIDTH

  15 in

• TOOTH RADIUS

  32 in

• TOOTH THICKNESS

  1 in

Hydraulic Clamp - E60

• WEIGHT

  218 lb

• WIDTH

  15 in

• TOOTH RADIUS

  32 in

• TOOTH THICKNESS

  1 in

Hydraulic Clamp - E80

• WEIGHT

  449 lb

• WIDTH

  16.5 in

• TOOTH RADIUS

  41 in

• TOOTH THICKNESS

  1 in
