Heavy Duty Buckets

Heavy Duty Buckets

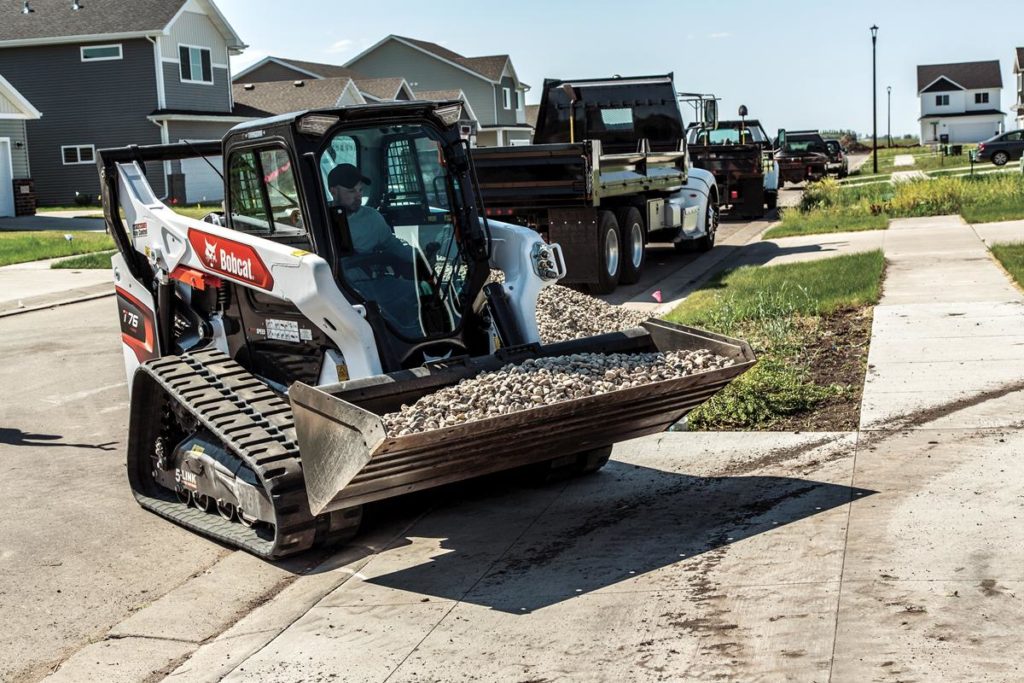

If you need to flatten your work area, cut a grade or scrape material off hard surfaces, the industry leading strength and durability of the heavy duty bucket will get your jobs done. It also gives you the ability to easily add custom options using simple tools as the bucket is pre-drilled to accept a number of accessories.

Used For

• Levelling
• Grading
• Material handling
• Carrying and loading

Features

• Bucket Bite® Tooth Bar: Easily convert to a toothed bucket from a smooth-lip bucket.
• Bolt-on teeth with replaceable points: Cut through tough digging conditions with a variety of styles.
• Bolt-on cutting edge: Gives your bucket a longer life.
• Bolt-on corner cutting edge: beveled cutting edges that protect the corners of your bucket.
• Utility grapple: Easily handle loose materials by quickly converting your bucket into a grapple.
• Bucket spill guard: Reduces the ability of material boiling or falling over the back of the bucket.

Options

• Superior cutting edge visibility: Allows for greater precision.
• Reinforced bucket back: Gives better reinforcement where you need it.
• Cast mounting frame: Gives it a longer service life.
• Round back design: Easier bucket cleanout and loading.
• Waffle type skid-plate: Reinforces and adds strength to the cutting edge and the bottom of the bucket.
• Channel design: The top and bottom of the bucket are a formed channel design to give more durability and strength.

Heavy Duty Buckets

Heavy Duty Bucket - 56"

• WEIGHT

  442 lb

• LENGTH

  36.6 in

• WIDTH

  56 in

• HEIGHT

  21.3 in

• NUMBER OF TEETH

  6 bolt-on

• ISO HEAPED CAPACITY

  13.7 ft³

• ISO STRUCK CAPACITY

  10.2 ft³

• PREDRILLED FOR

  Bolt-on edges or teeth

Heavy Duty Bucket - 62"

• WEIGHT

  476 lb

• LENGTH

  36.6 in

• WIDTH

  62 in

• HEIGHT

  21.3 in

• NUMBER OF TEETH

  7 bolt-on

• ISO HEAPED CAPACITY

  15.3 ft³

• ISO STRUCK CAPACITY

  11.3 ft³

• PREDRILLED FOR

  Bolt-on edges or teeth

Heavy Duty Bucket - 74"

• WEIGHT

  546 lb

• LENGTH

  36.6 in

• WIDTH

  74 in

• HEIGHT

  21.3 in

• NUMBER OF TEETH

  8 bolt-on

• ISO HEAPED CAPACITY

  18.5 ft³

• ISO STRUCK CAPACITY

  13.5 ft³

• PREDRILLED FOR

  Bolt-on edges or teeth

Heavy Duty Bucket - 80"

• WEIGHT

  578 lb

• LENGTH

  36.6 in

• WIDTH

  80 in

• HEIGHT

  21.3 in

• NUMBER OF TEETH

  8 bolt-on

• ISO HEAPED CAPACITY

  20.1 ft³

• ISO STRUCK CAPACITY

  14.7 ft³

• PREDRILLED FOR

  Bolt-on edges or teeth

Heavy Duty Bucket - 88"

• WEIGHT

  775 lb

• LENGTH

  38.1 in

• WIDTH

  88 in

• HEIGHT

  24.1 in

• NUMBER OF TEETH

  9 bolt-on

• ISO HEAPED CAPACITY

  24.8 ft³

• ISO STRUCK CAPACITY

  18.2 ft³

• PREDRILLED FOR

  Bolt-on edges or teeth
