Snow Blade

Snow Blade

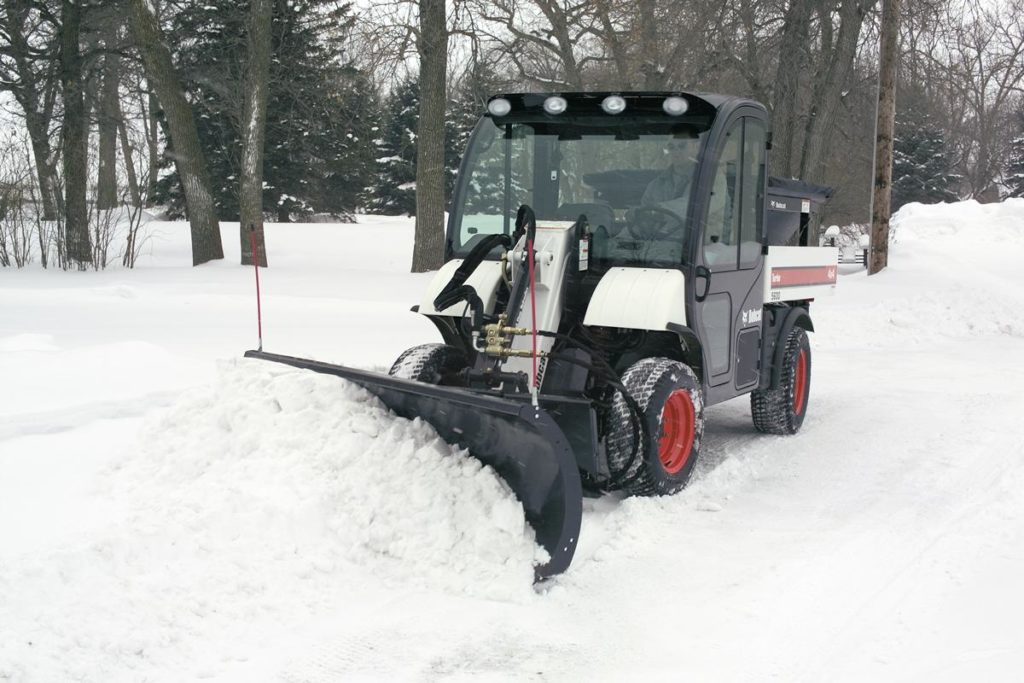

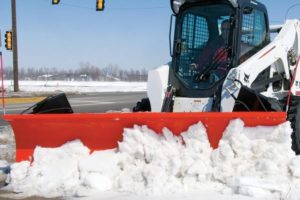

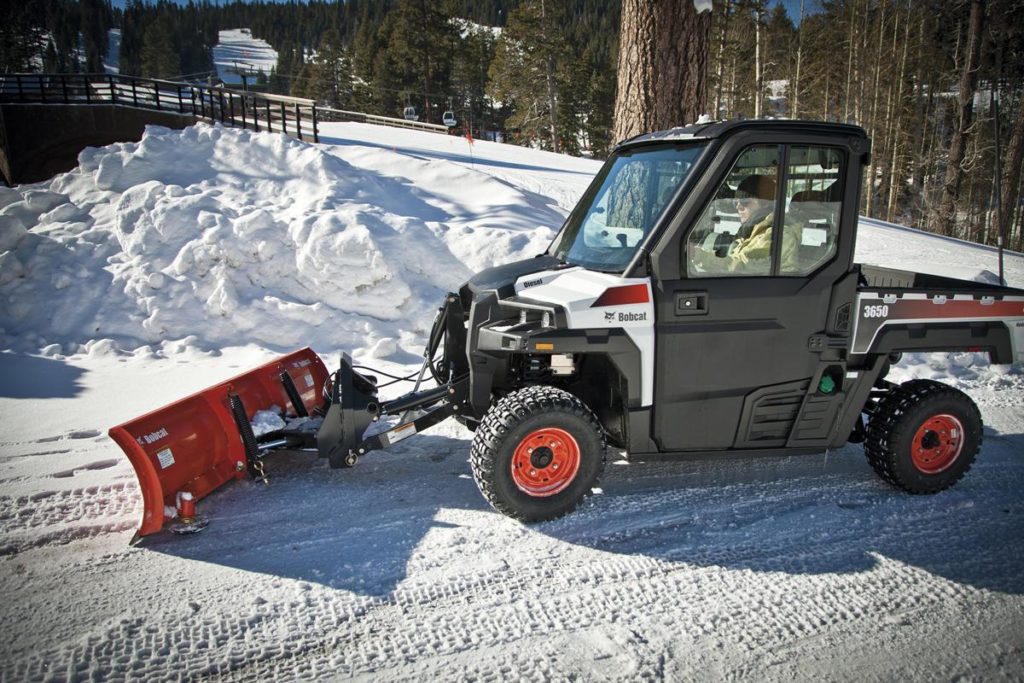

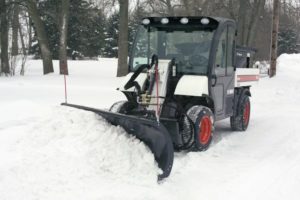

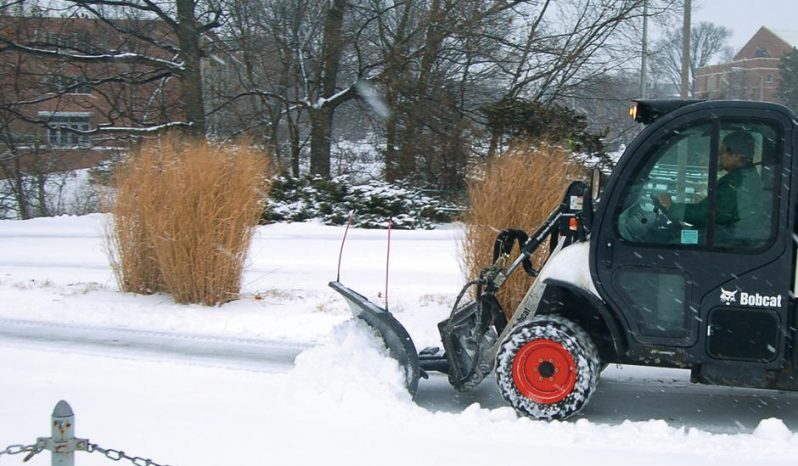

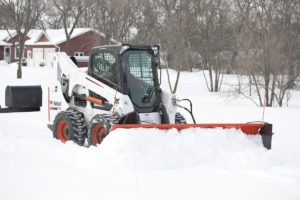

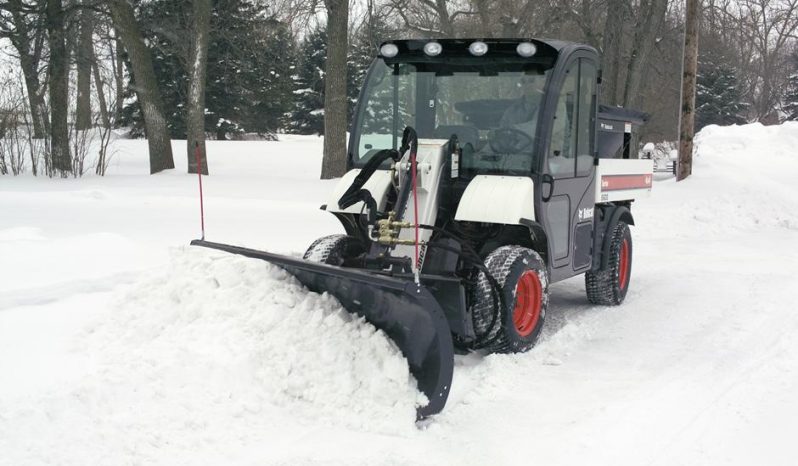

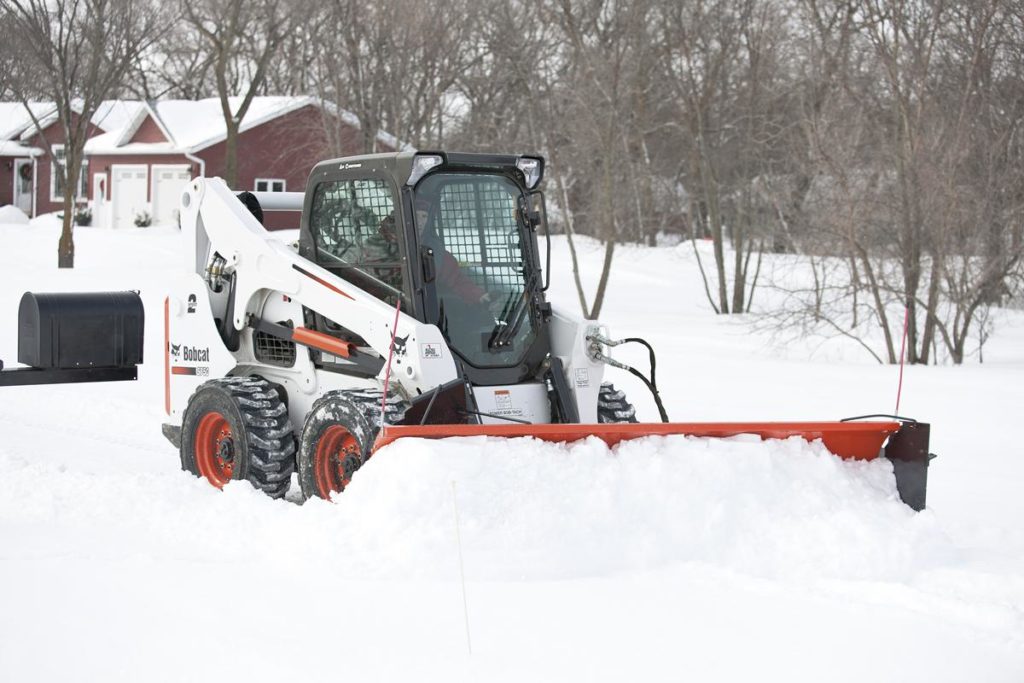

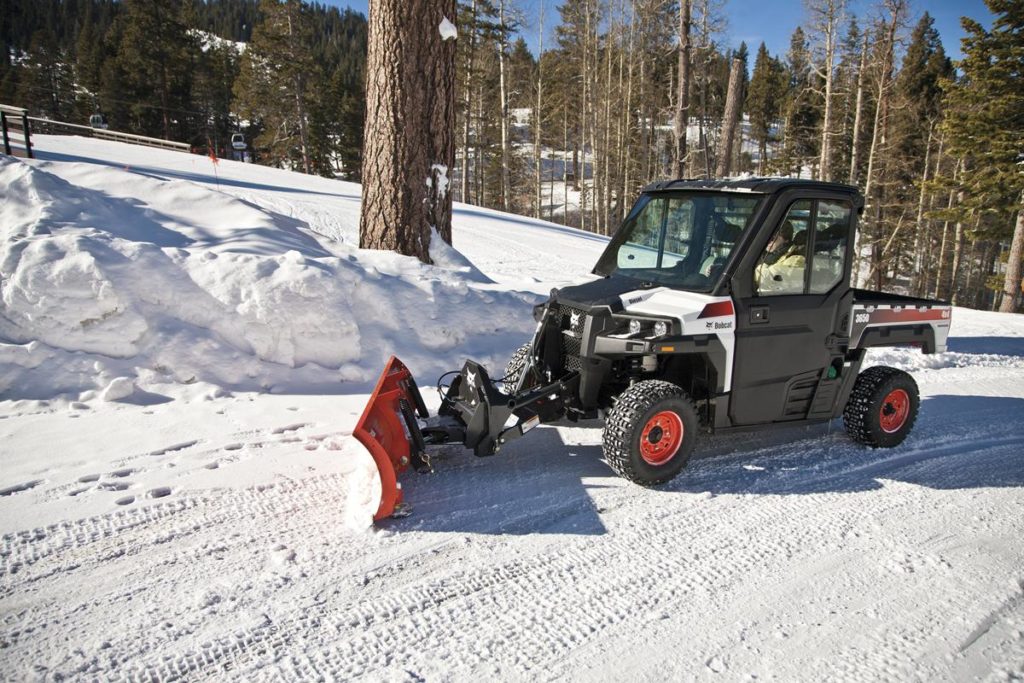

Perfect for light or moderate snow on sidewalks, driveways and parking lots. The snow blade can angle up to 30° to either side, adjusted from the cab by a fingertip control, to help move the snow to where you want it. The blade oscillates 5° to allow consistent contact with the ground surface, preventing the need for multiple passes to clear snow. High visibility masts are located at each end of the moldboard to keep the operator aware of the blade corners while cutting through snow banks.

The end-wing kits make the attachment more versatile by allowing the snow blade to also be used as a snow pusher.

Used For

• General light or moderate snow removal
• Sidewalk, driveway & parking lot

Features

• Cutting edge: High carbon steel is standard, rubber and polyurethane are available.
• Depth shoes: Long lasting and adjustable to match your conditions.
• Moldboard movement: Angles left or right up to 30° for better versatility.

Options

• End-wing kits: Turns the snow blade into a snow pusher.
• Cutting edge: Polyurethane or rubber cutting edges help protect sensitive surfaces.

Snow Blade

Snow Blade - 54"

• WEIGHT

  310 lb

• LENGTH

  29.7 in

• WIDTH

  54 in

• HEIGHT

  22 in

• CUTTING EDGE (STEEL)

  0.375 in x 4 in

• CYLINDER BORE

  2 in

• CYLINDER ROD

  1.2 in

• CYLINDER STROKE

  5 in

• WORKING WIDTH (FULLY ANGLED)

  46.8 in

• CYLINDERS

  1

• OPTIONAL RUBBER CUTTING EDGE

  n/a

• TRIP SPRINGS

  2

• DEGREE OF ANGLE (R/L)

  30°

Snow Blade - 60"

• WEIGHT

  580 lb

• LENGTH

  42 in

• WIDTH

  60 in

• HEIGHT

  28 in

• CUTTING EDGE (STEEL)

  0.375 in x 6 in

• CYLINDER BORE

  2 in

• CYLINDER ROD

  1.2 in

• CYLINDER STROKE

  9.6 in

• WORKING WIDTH (FULLY ANGLED)

  52 in

• CYLINDERS

  2

• OPTIONAL RUBBER CUTTING EDGE

  1 in x 6 in

• TRIP SPRINGS

  4

• DEGREE OF ANGLE (R/L)

  30°

Snow Blade - 72"

• WEIGHT

  590 lb

• LENGTH

  42 in

• WIDTH

  72 in

• HEIGHT

  28 in

• CUTTING EDGE (STEEL)

  0.375 in x 6 in

• CYLINDER BORE

  2 in

• CYLINDER ROD

  1.2 in

• CYLINDER STROKE

  9.6 in

• WORKING WIDTH (FULLY ANGLED)

  63 in

• CYLINDERS

  2

• OPTIONAL RUBBER CUTTING EDGE

  1 in x 6 in

• TRIP SPRINGS

  4

• DEGREE OF ANGLE (R/L)

  30°

Snow Blade - 84"

• WEIGHT

  620 lb

• LENGTH

  42 in

• WIDTH

  84 in

• HEIGHT

  28 in

• CUTTING EDGE (STEEL)

  0.375 in x 6 in

• CYLINDER BORE

  2 in

• CYLINDER ROD

  1.2 in

• CYLINDER STROKE

  9.6 in

• WORKING WIDTH (FULLY ANGLED)

  73 in

• CYLINDERS

  2

• OPTIONAL RUBBER CUTTING EDGE

  1 in x 6 in

• TRIP SPRINGS

  4

• DEGREE OF ANGLE (R/L)

  30°

Snow Blade, Heavy Duty - 86"

• WEIGHT

  809 lb

• LENGTH

  35.6 in

• WIDTH

  86 in

• HEIGHT

  28.5 in

• CUTTING EDGE (STEEL)

  0.5 in x 6 in

• CYLINDER BORE

  2 in

• CYLINDER ROD

  1.8 in

• CYLINDER STROKE

  9.6 in

• WORKING WIDTH (FULLY ANGLED)

  75 in

• CYLINDERS

  1

• OPTIONAL RUBBER CUTTING EDGE

  1 in x 6 in

• TRIP SPRINGS

  4

• DEGREE OF ANGLE (R/L)

  30°

Snow Blade - 96"

• WEIGHT

  660 lb

• LENGTH

  42 in

• WIDTH

  96 in

• HEIGHT

  28 in

• CUTTING EDGE (STEEL)

  0.375 in x 6 in

• CYLINDER BORE

  2 in

• CYLINDER ROD

  1.2 in

• CYLINDER STROKE

  9.6 in

• WORKING WIDTH (FULLY ANGLED)

  83 in

• CYLINDERS

  2

• OPTIONAL RUBBER CUTTING EDGE

  1 in x 6 in

• TRIP SPRINGS

  4

• DEGREE OF ANGLE (R/L)

  30°

Snow Blade, Heavy Duty - 96"

• WEIGHT

  867 lb

• LENGTH

  35.6 in

• WIDTH

  96 in

• HEIGHT

  28.5 in

• CUTTING EDGE (STEEL)

  0.5 in x 6 in

• CYLINDER BORE

  3.5 in

• CYLINDER ROD

  1.8 in

• CYLINDER STROKE

  9.6 in

• WORKING WIDTH (FULLY ANGLED)

  83 in

• CYLINDERS

  1

• OPTIONAL RUBBER CUTTING EDGE

  1 in x 6 in

• TRIP SPRINGS

  4

• DEGREE OF ANGLE (R/L)

  30°

Snow Blade, Heavy Duty - 108"

• WEIGHT

  948 lb

• LENGTH

  35.6 in

• WIDTH

  108 in

• HEIGHT

  28.5 in

• CUTTING EDGE (STEEL)

  0.5 in x 6 in

• CYLINDER BORE

  3.5 in

• CYLINDER ROD

  1.2 in

• CYLINDER STROKE

  9.6 in

• WORKING WIDTH (FULLY ANGLED)

  94 in

• CYLINDERS

  1

• OPTIONAL RUBBER CUTTING EDGE

  1 in x 6 in

• TRIP SPRINGS

  6

• DEGREE OF ANGLE (R/L)

  30°
