Bobcat CT2040

CT2040

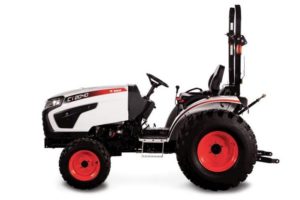

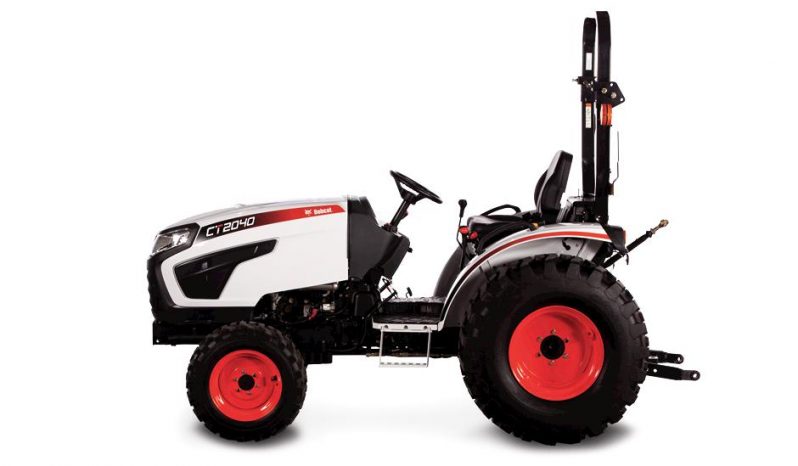

The economical Bobcat® CT2040 compact tractor doesn’t skimp when it comes to horsepower. This 40-hp small farm tractor provides rugged performance and outstanding comfort so you can take on attachment and implement work around your ranch or acreage. It delivers big performance and still fits in tight areas on your property. Four-wheel drive, a Category 1 3-point hitch and power steering are standard. And you get to choose from two transmission types to get the one that’s best for your work.

Compact Tractor Literature:

Download CT2000 Series Spec Sheet

Download Tractor Implements & Attachments Brochure

Download Compact Tractor Family Brochure

Features

• Category 1, 3-Point Hitch With Control Lever
• Integrated Joystick Lever
• Four-Wheel Drive
• Power Steering
• Deluxe Suspension Seat
• High Ground Clearance

Options

• Manual-Shift Transmission With Live Rear PTO
• Hydrostatic Transmission With Independent Rear PTO
• Three Tire Options

Popular Attachments

• Tiller
• Finish Mower
• Front End Loader Arms
• Mid-Mount Mower
• Backhoe
• Angle Blade

CT2040

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  39.6 hp

• DISPLACEMENT

  111 in³

• NUMBER OF CYLINDERS

  3

• ENGINE MODEL

  3F-TM(H)4

• FUEL TANK

  9 gal

Dimensions

• LENGTH

  120.9 in

• WIDTH

  64 in

• HEIGHT

  91.5 in

• WEIGHT

  3,005 lb

• GROUND CLEARANCE

  11.5 in

• TURNING RADIUS

  8' 0"

• WHEELBASE

  5' 5"

• FRONT TIRE SIZE

  Front Industrial (AG, Turf) 25X8.5-14 (7-16, 27X8.5-15)

• REAR TIRE SIZE

  Rear Industrial (AG, Turf) 15-19.5 (11.2-24, 41X14-20)

Hydraulic & Drive System

• TOTAL HYDRAULIC FLOW

  11.4 gal/min

• BRAKE TYPE

  Wet Multi Disc

• TRANSMISSION TYPE

  Infinite, 3 Range Hydrostatic

Operational

• TRAVEL SPEED

  22.5 km/h

• TRAVEL SPEED - REVERSE

  20 km/h

• 3-POINT HITCH

  Category 1

• 3-PT LIFT CONTROL TYPE

  Hydraulic Position Control System

• LIFT CAPACITY AT 24" BEHIND LIFT POINT

  1,631 lb

• REAR PTO SYSTEM

  Live

• REAR PTO - RPM

  540

• PTO HP

  31.9 hp

• MID PTO - RPM

  1,988

Loader Attachment

• LOADER LIFT HEIGHT

  8' 4"

• BUCKET WIDTH

  5' 0"
