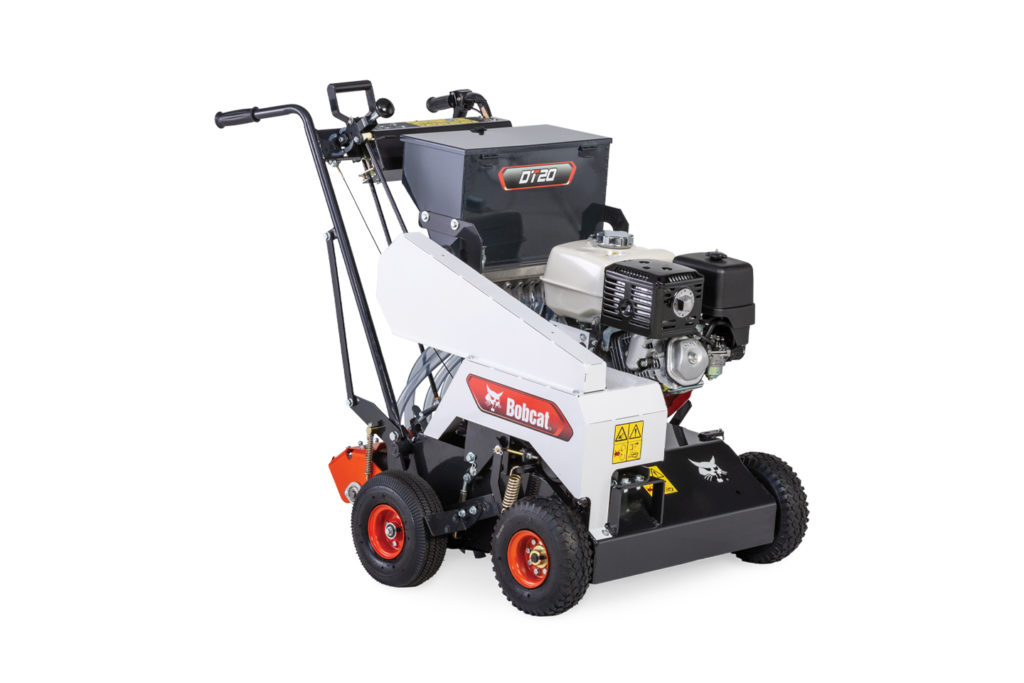

Bobcat DT20

DT20 Overseeder & Dethatcher

Built to perform, the heavy duty Bobcat DT20 puts seeds directly into soil slits for fast germination and unmatched seed-to-soil contact, overseeding and aeration. The seed flow rate is easily controlled directly from the operator’s station and will stop automatically when the reel is raised. The Bobcat DT20’s  self-propelled operation lets you finish the job without feeling exhausted while delivering consistent ground speed. Plus, its independent ground reel and reel drive options with transport lever make it easy to move around the jobsite.

Dethatcher & Overseeder Literature:

Download Bobcat Dethatcher & Overseeder Brochure

Features

• Can Be Converted Into A Dethatcher Or Verticutter
• Self-Driven Drivetrain
• Independent Ground And Reel Drive Options
• Durable Cutting Blades
• Easy To Transport

DT20 Overseeder & Dethatcher

Dimensions

• LENGTH

  50 in

• WIDTH

  35.5 in

• HEIGHT

  44 in

• WEIGHT

  453 lb

Engine

• ENGINE MODEL

  GX 390

• ENGINE MAKE

  Honda

• HORSEPOWER

  11.7 hp

• ENGINE DISPLACEMENT

  23.7 in³

• FUEL CAPACITY

  1.6 gal

Performance

• INCLUDED BLADE REEL

  Seeding Blade

• OPERATING WIDTH

  19 in

• MAX REEL SPEED

  3,200 rpm

• DEPTH ADJUSTMENT

  Microscrew Adjustment

• MAX SEEDING BLADE DEPTH

  0.2 in

• MAX FIXED BLADE DEPTH

  0.2 in

• SEEDING BLADE TYPE

  8-Point, High Carbon, Heat Treated Blades

• FLAIL BLADE TYPE

  1/8 in Hardened, High-Carbon Steel Blades

• FIXED BLADE TYPE

  Hardened, High-Carbon Steel Blades

Drive

• DRIVE SYSTEM

  4L-section V-belt to front wheels by gear box and sealed roller chain; triple 3V-section V-belts engine to reel

• CLUTCH

  Spring Loaded Belt Tightener

• GEARBOX

  22:1 Reduction

• MAX REC OPERATING SPEED

  3.9 km/h

Seeding

• SEEDING SYSTEM

  Seed Is Dropped Directly Into Soil Slits Via Seed Delivery Tube And Covered In Soil By Disc System

• SEED HOPPER CAPACITY

  40 lb
