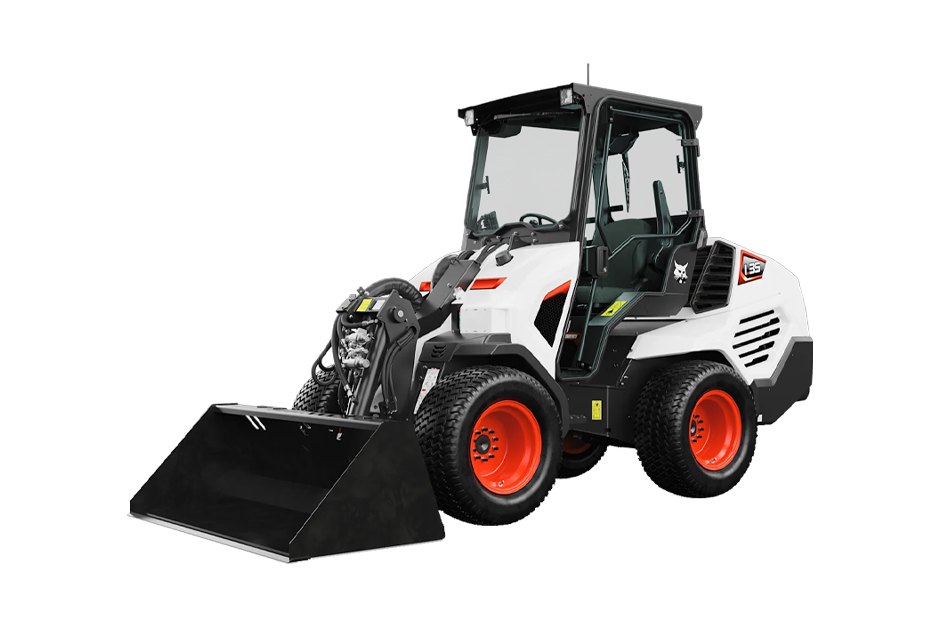

Bobcat L35

L35

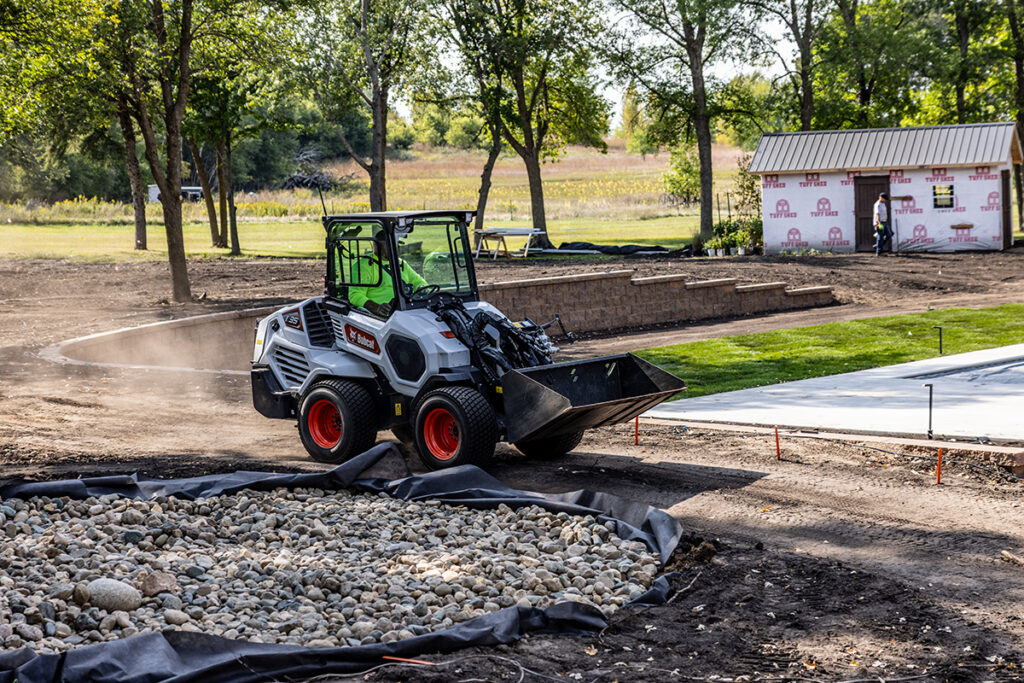

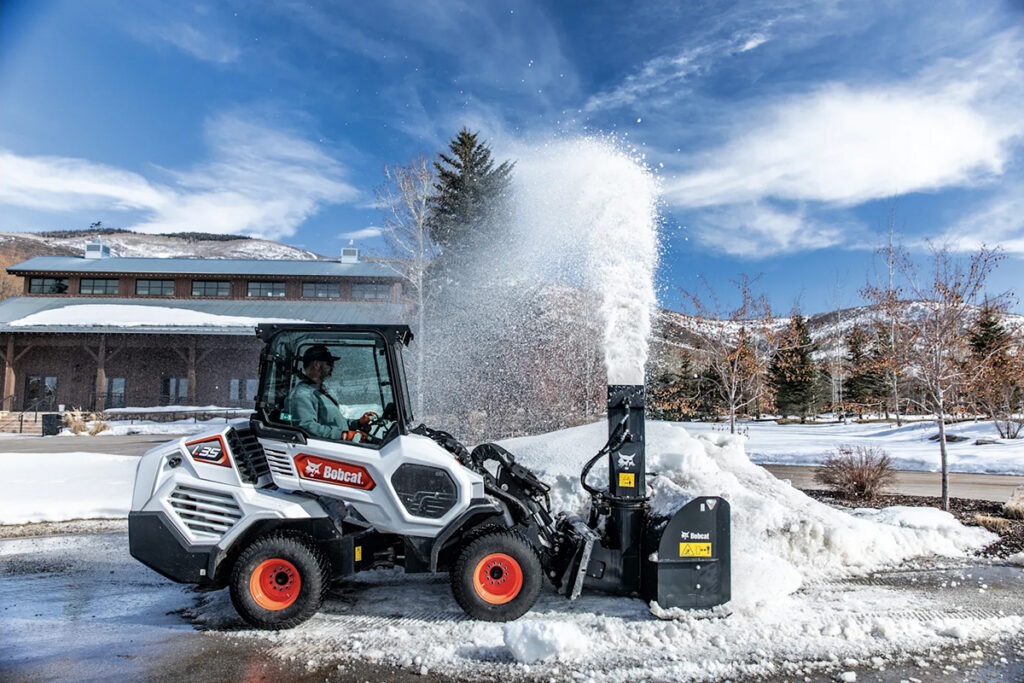

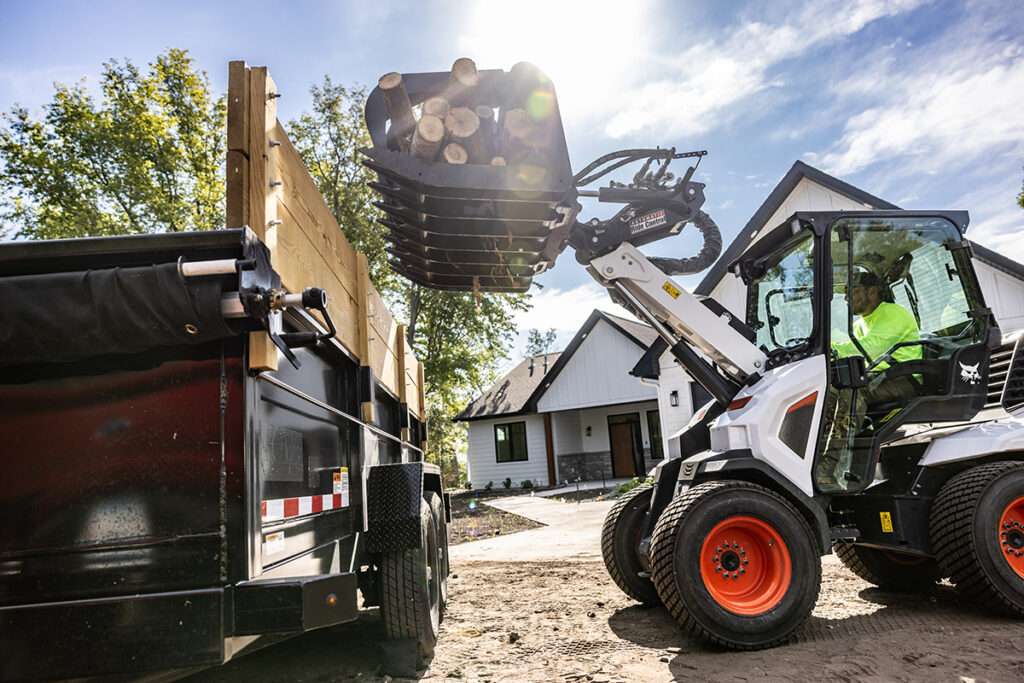

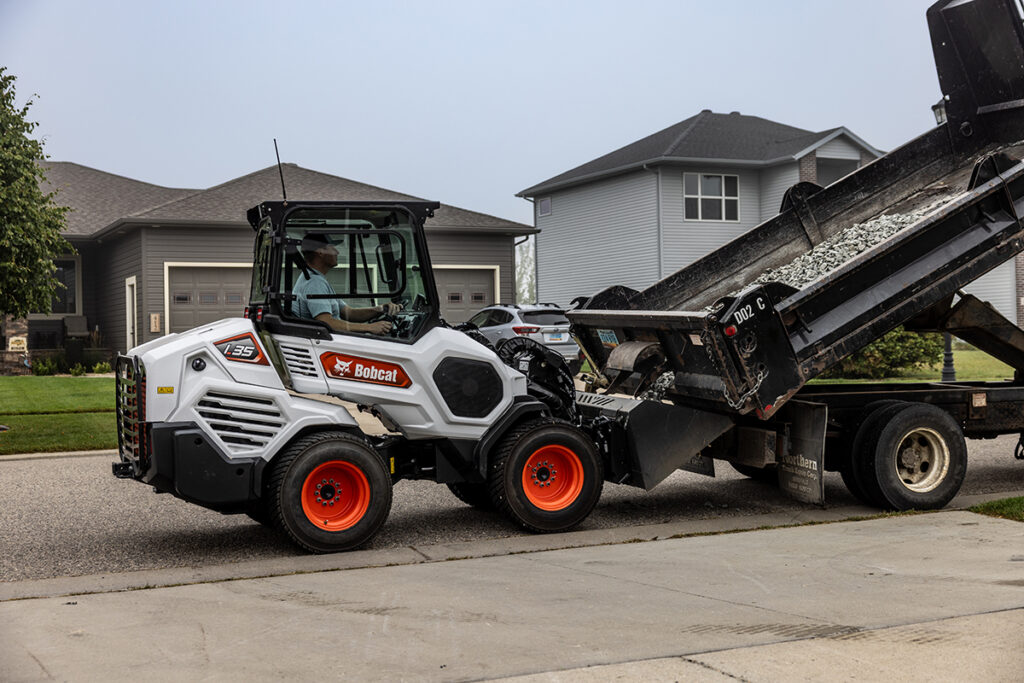

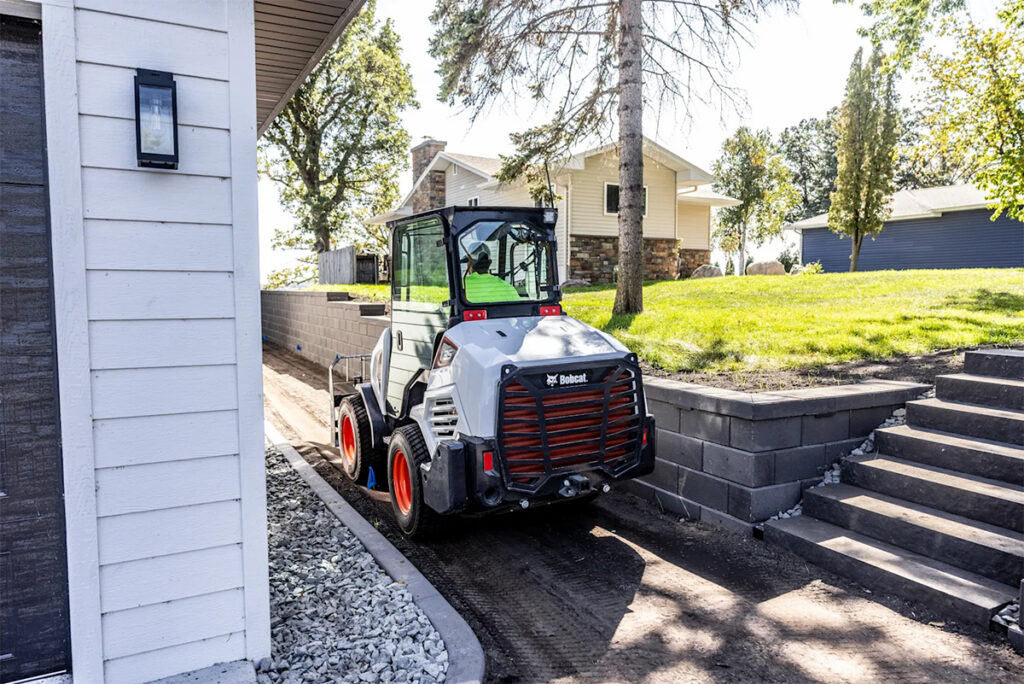

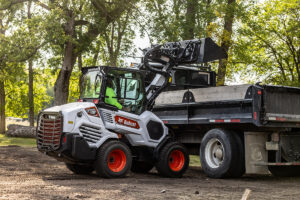

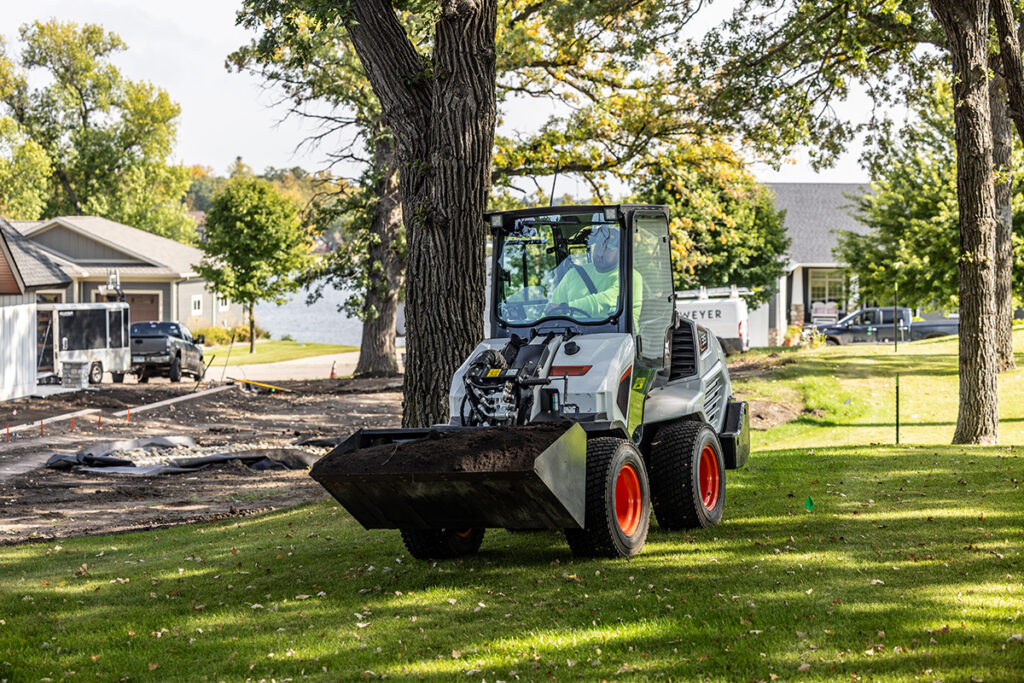

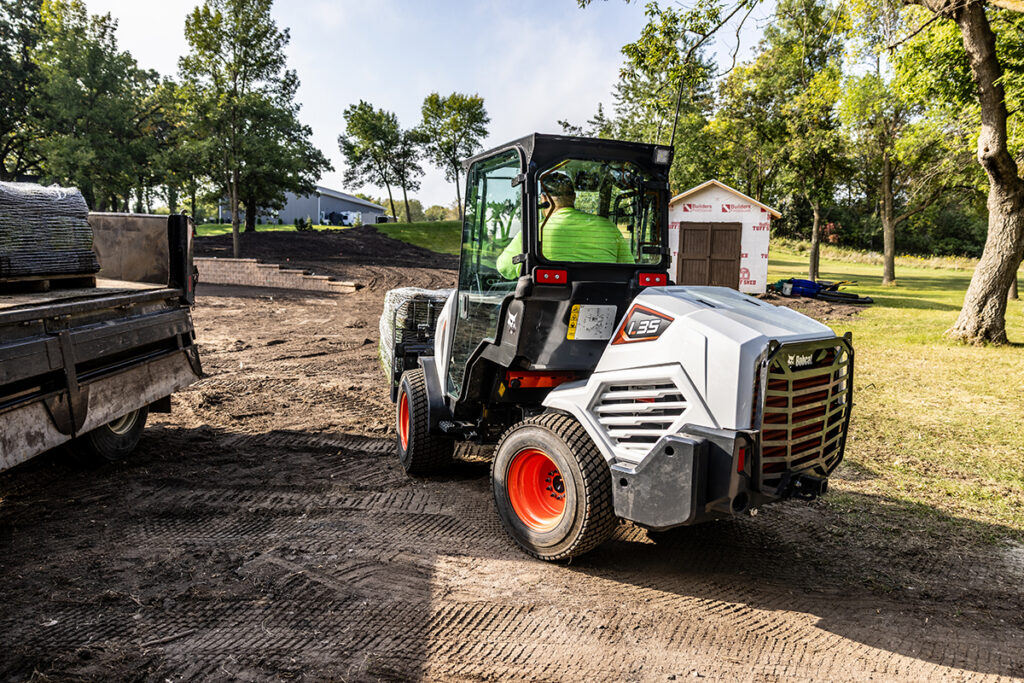

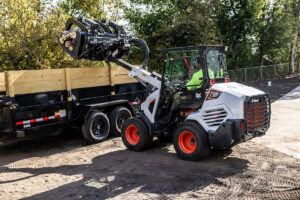

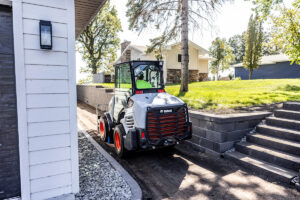

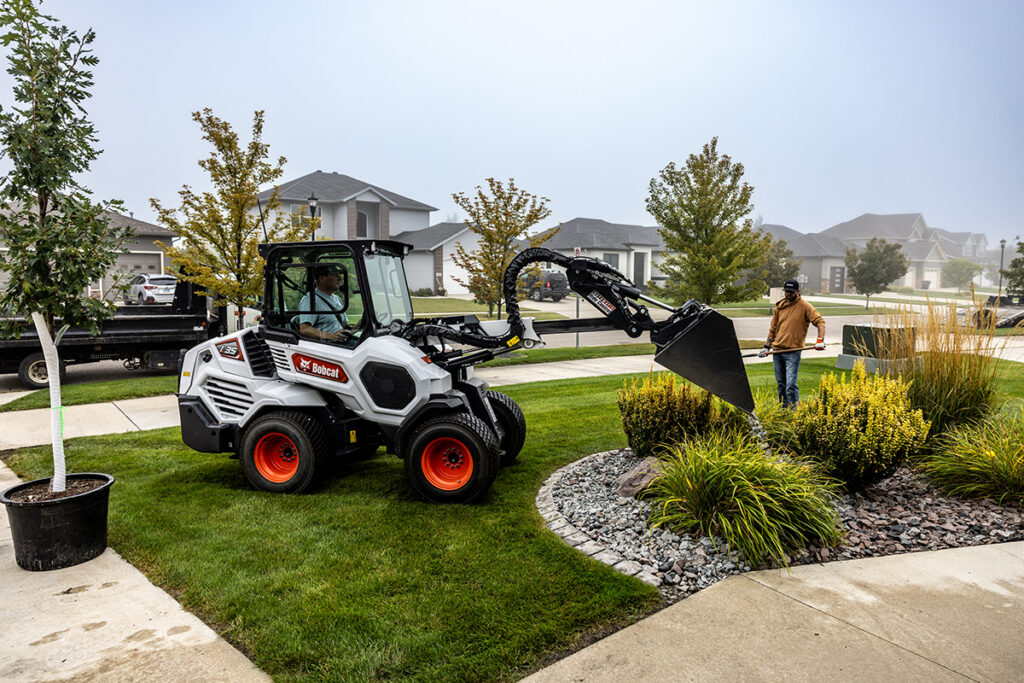

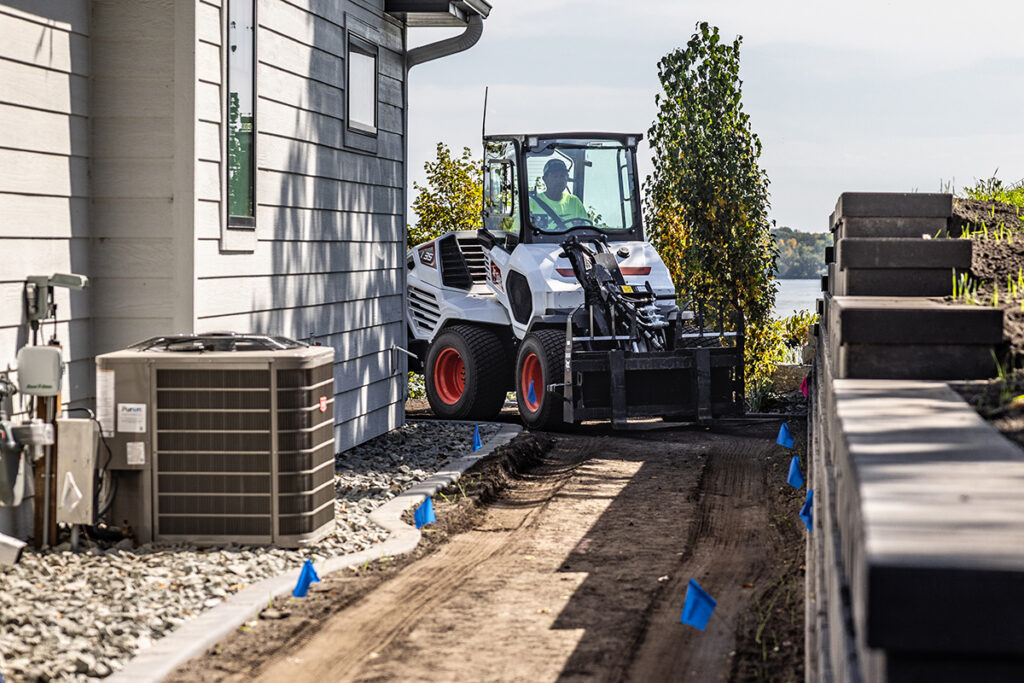

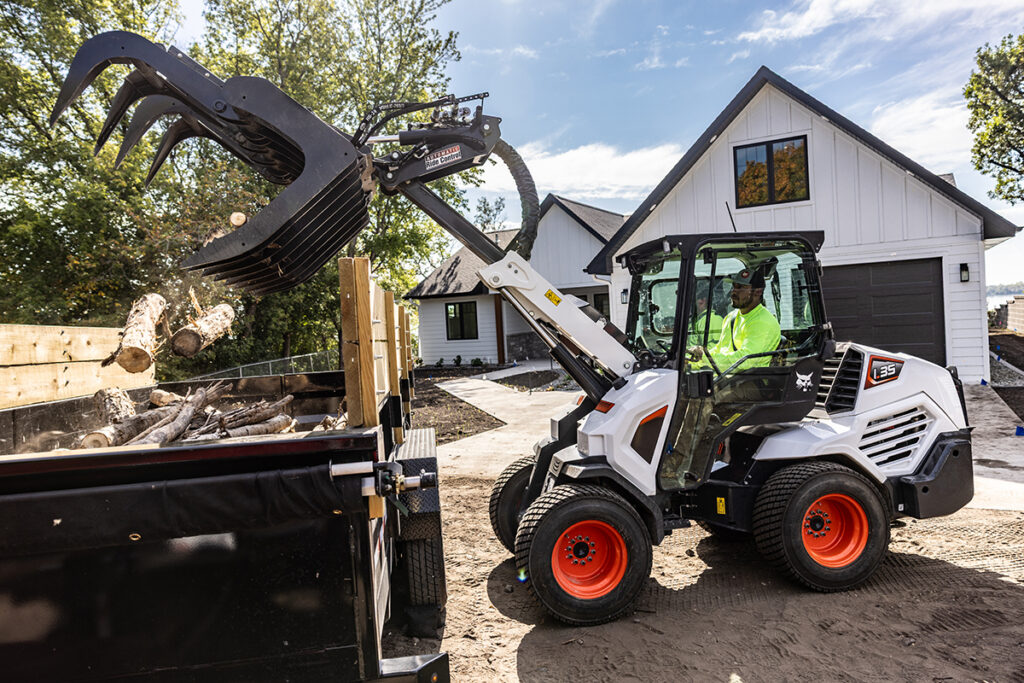

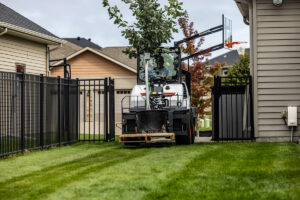

The Bobcat L35 small articulated loader delivers the perfect balance of agility and added muscle for tougher lifting, loading and attachment work. Designed with a higher rated operating capacity, powerful hydraulics and a longer telescoping lift arm, the L35 helps you lift more and reach higher with confidence. Its turf-safe mode and low ground disturbance design let you work on sensitive surfaces without sacrificing performance, making it ideal for landscaping, property maintenance and jobsite work where precision matters.

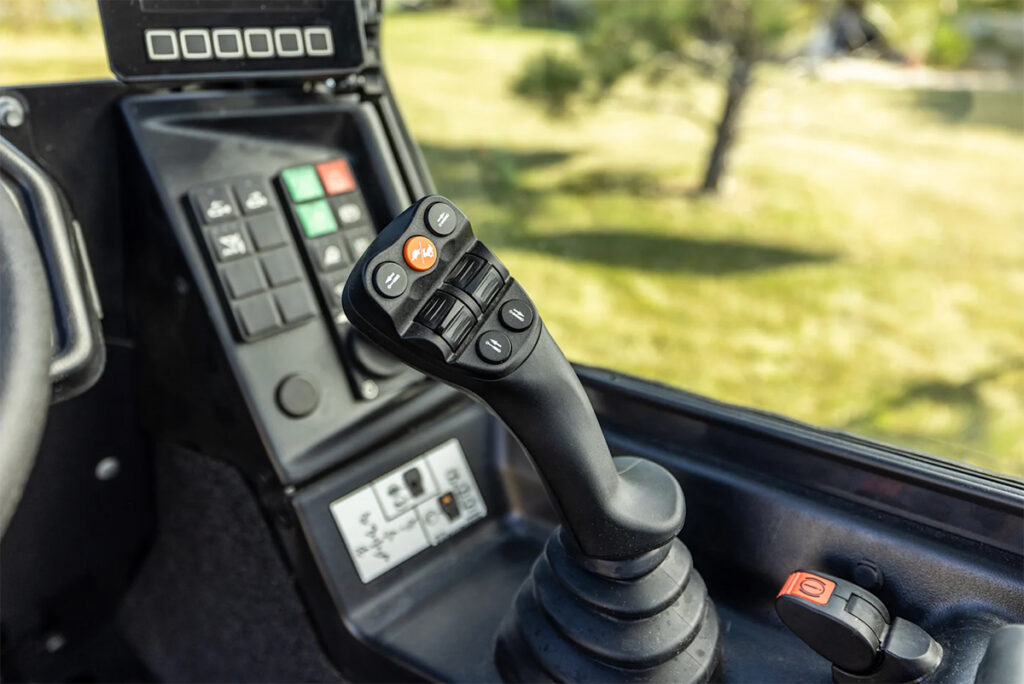

Step up in performance from the L28 with greater hydraulic power and available high-flow capability to run more demanding attachments. Operators can stay productive all day in the optional factory-installed cab, complete with heat, air conditioning, ergonomic joystick controls and Bluetooth radio. With enhanced comfort, improved control and heavier-duty capability packed into a compact footprint, the L35 is built to handle serious work in tight spaces.

Small Articulated Loader Literature:

Download Small Articulated Loader Brochure

Download Bobcat Attachments Catalog

Features

• Front and Rear Work Lights
• Adjustable Seat
• Backup Alarm
• BICS System (Interlock)
• ROPS/FOPS Approved
• Operating Lights
• Turbocharged Engine
• Lift-Arm Support
• Seat Belt
• Suspension Seat
• Two Speed Travel
• Auxiliary Hydraulics
• Spark Arrestor Muffler
• Bob-Tach Attachment System
• Cup Holder
• Horn

Options

• Air Conditioning
• Cab Enclosure
• Cab Heater
• Auto Idle
• Traction Control
• Radio
• Rear Window
• Rotating Flashing Beacon
• Turn Signals
• High Flow Option
• Heavy-Duty Float Tires
• Power Bob-Tach
• Ride Control

Popular Attachments

• Breaker

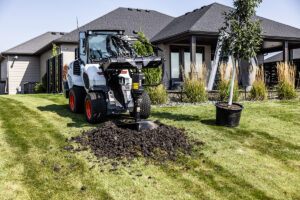

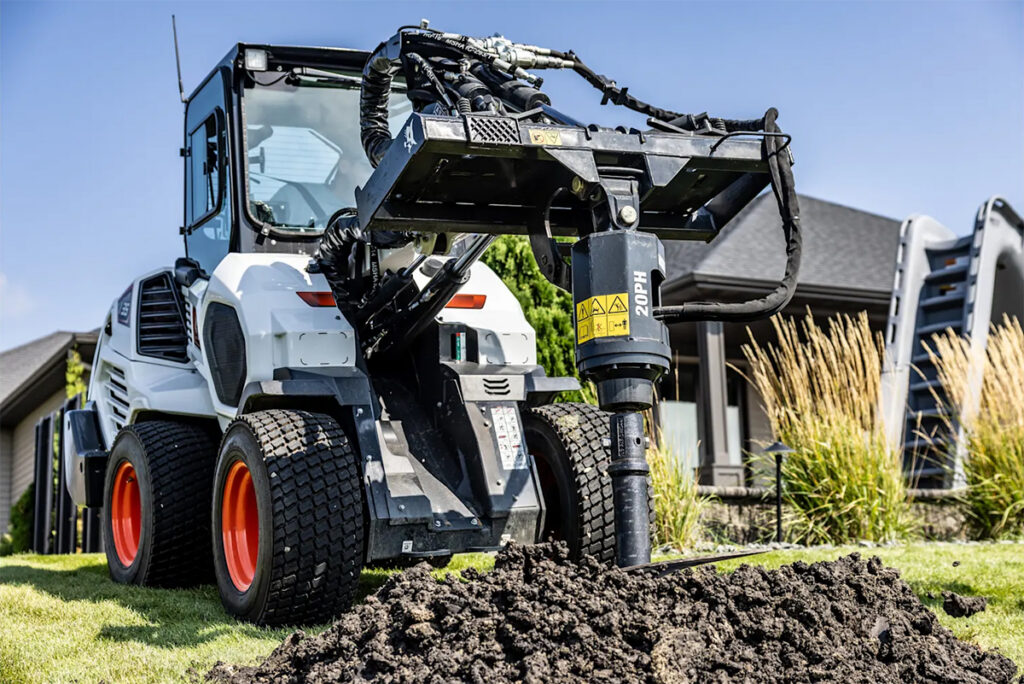

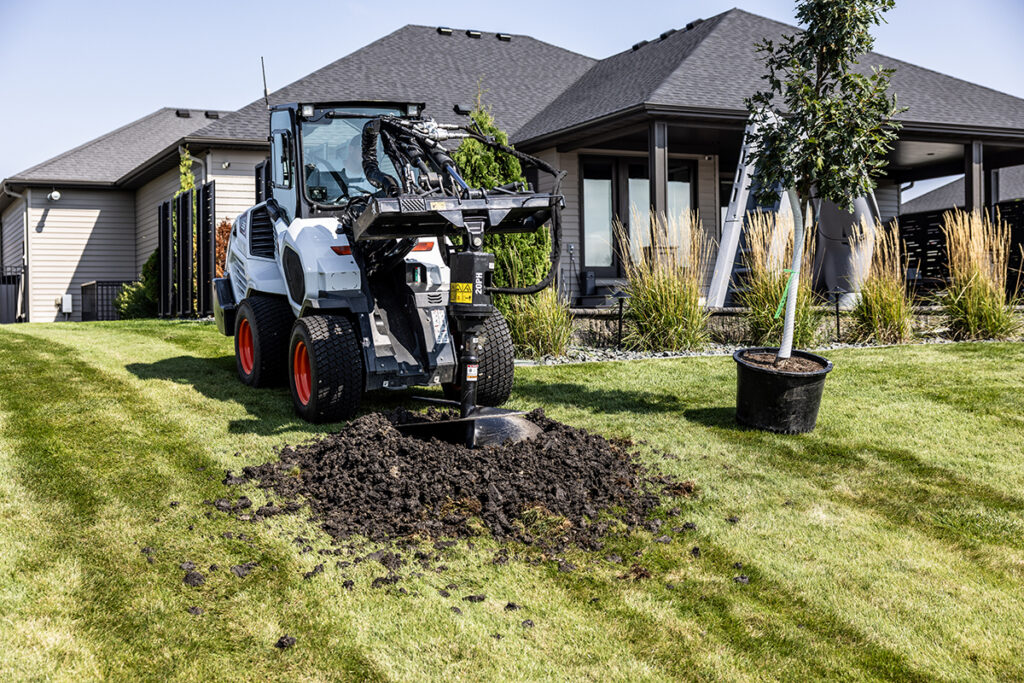

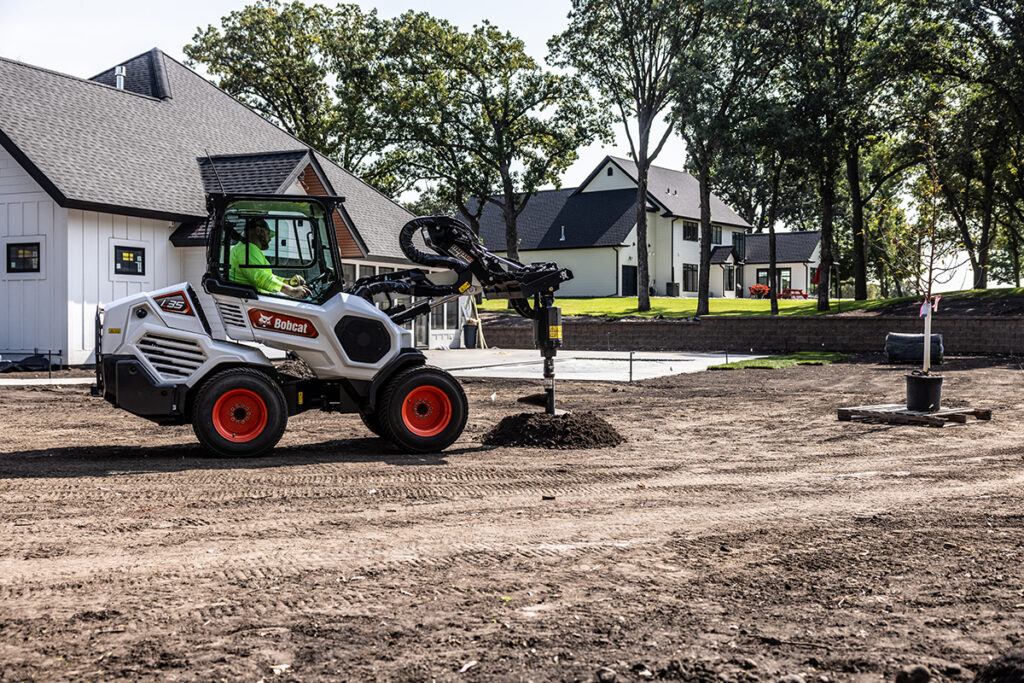

• Auger

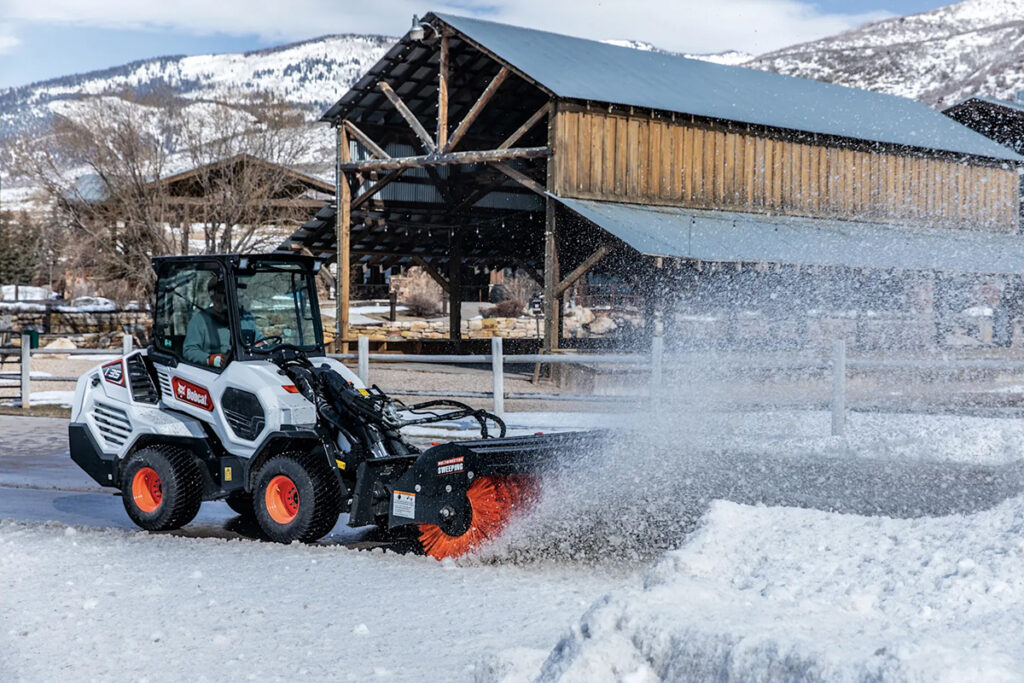

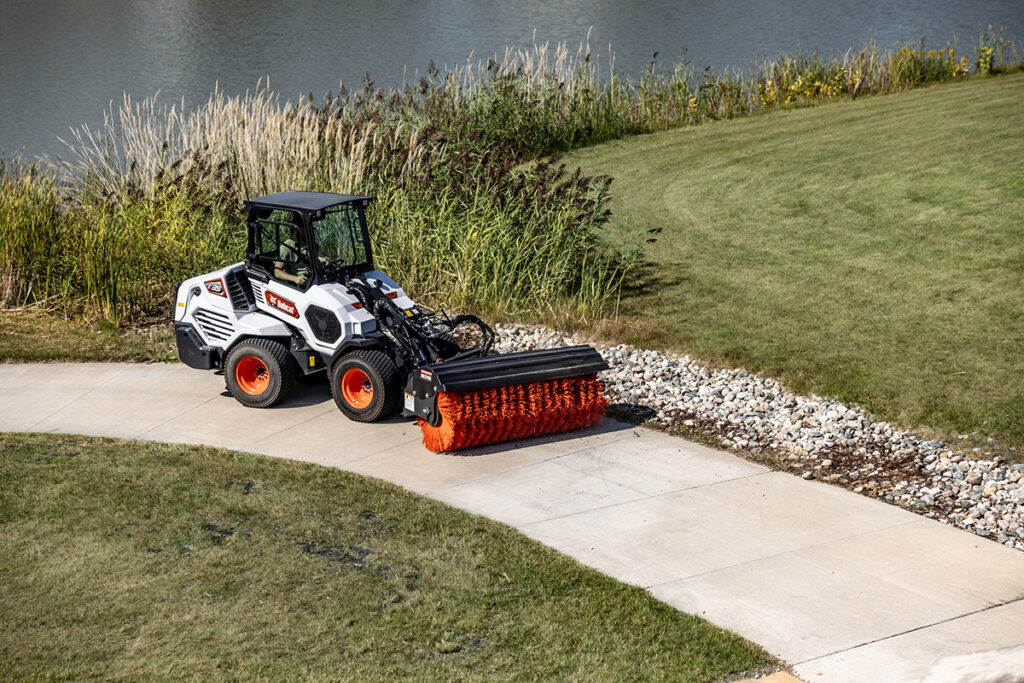

• Sweeper
• Bale Spear
• Brush Saw

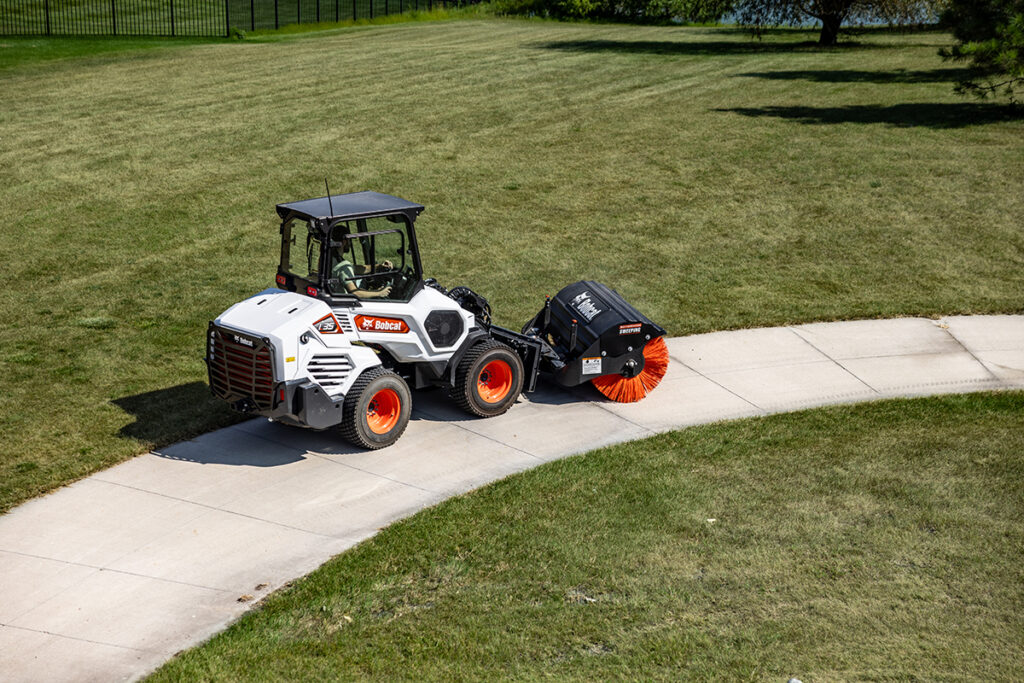

• Angle Broom
• Brushcat Rotary Cutter

L35

Dimensions

• LENGTH

  110.9 in

• LENGTH WITH BUCKET

  148.5 in

• HEIGHT

  82.2 in

• WIDTH

  52.4 in

• WEIGHT

  6,012 lb

• ARTICULATION ANGLE

  43°

• TURNING RADIUS INSIDE

  92.8 in

• TURNING RADIUS OUTSIDE

  111.2 in

• WHEELBASE

  57.2 in

• MAX REACH

  38.6 in

• TIRE SIZE

  26X12-12 10 PLY

• GROUND CLEARANCE

  6.5 in

• ROLLBACK ANGLE

  32°

• DUMP ANGLE AT MAXIMUM HEIGHT

  40°

Engine

• ENGINE

  Tier 4

• COOLING

  Liquid

• ENGINE FUEL

  Diesel

• HORSEPOWER

  57 hp

Hydraulics

• SYSTEM RELIEF AT QUICK COUPLERS

  3,045 psi

• AUXILIARY STD FLOW

  18 gal/min

• AUXILIARY HIGH FLOW

  25.3 gal/min

Operational

• RATED OPERATING CAPACITY STRAIGHT

  2,072 lb

• ROC WITH COUNTERWEIGHT OPTION STRAIGHT

  2,472 lb

• RATED OPERATING CAPACITY ART.

  1,695 lb

• ROC WITH COUNTERWEIGHT OPTION ART.

  2,017 lb

• TRAVEL SPEED

  26 km/h
