Bobcat PA425V
-
- Make
- Bobcat
-
- Category
- Bobcat Portable Air Compressors
-
- ROP
- 100/150 psig
-
- Rated Speed
- 2,300/2,075 rpm
-
- Weight
- 4,776 lb
-
- Emissions Tier
- Tier 4 Final
-
- Idle Speed
- 1,500 rpm
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo

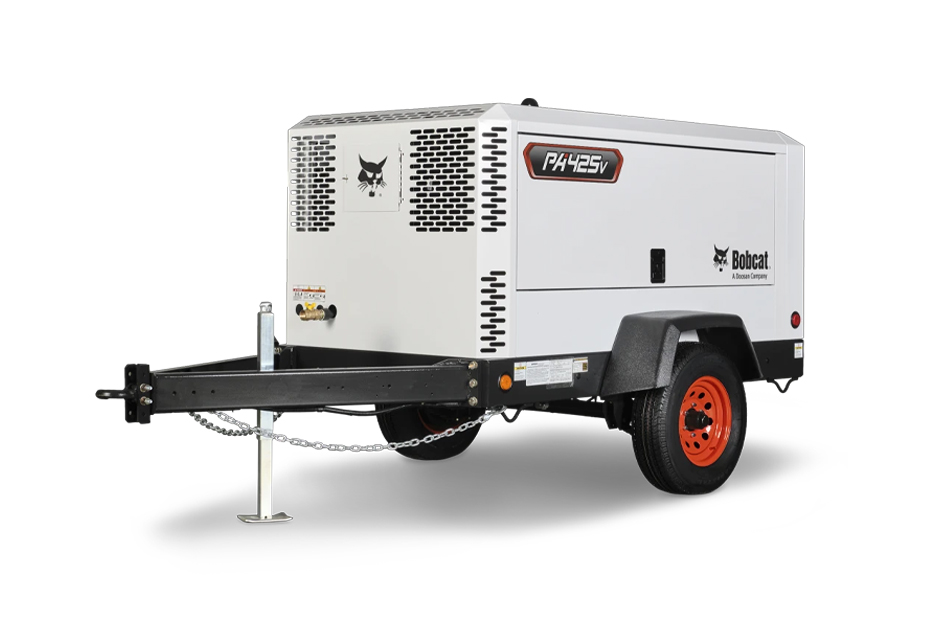

PA425V
Accomplish more at your jobsite with the two-in-one versatility packed into the Bobcat PA425V portable air compressor. It delivers dual pressure with airflows of 375 or 425 cfm and pressures of 100 to 150 psi.
The dual pressure technology from Bobcat gives you the versatile air power you need to maximize productivity on the jobsite. With the HI/LOW options on the control panel, you can easily select between the two adjustable airflow and air pressure combinations to power multiple applications, eliminating the need for multiple compressors.
The PA425V features a compact design that makes it even more versatile without sacrificing ease of operation or serviceability, thanks to the thoughtful placement of key service components that are easily accessible without having to remove the durable enclosure.
The PA425V delivers air power you can depend on with its power dense Tier 4 Final Cummins engine, engineered with DOC and SCR emissions technology. The Mini-Port full gauge control panel displays engine and airend temperature and pressure, as well as the percentage of fan speed and engine load. You can change the pressure and flow settings during compressor operation – delivering low airflow with high pressure or high airflow with low pressure. Automatic shutdowns, relative to several critical operational parameters, help avoid downtime for repairs.
Bobcat Portable Air Compressor Literature:
Features
- Large Access Doors For Easy Serviceability
- Advanced Control Panel
- Cummins Performance Series Engine
PA425V
Dimensions
-
- LENGTH W/ RUNNING GEAR
- 154.2 in
-
- WIDTH W/ RUNNING GEAR
- 78.2 in
-
- HEIGHT W/ RUNNING GEAR
- 73.3 in
-
- TRACK W/ WITH RUNNING GEAR
- 66.6 in
-
- TIRE SIZE W/ RUNNING GEAR
- 15 in
-
- LENGTH W/O RUNNING GEAR
- 107 in
-
- WIDTH W/O RUNNING GEAR
- 60.7 in
-
- HEIGHT W/O RUNNING GEAR
- 61 in
-
- SHIPPING WEIGHT W/ RUNNING GEAR
- 4,334 lb
-
- OPERATING WEIGHT W/ RUNNING GEAR
- 4,776 lb
-
- SHIPPING WEIGHT W/O RUNNING GEAR
- 4,071 lb
-
- OPERATING WEIGHT W/O RUNNING GEAR
- 4,513 lb
Engine
-
- ENGINE MAKE
- Cummins F3.8L
-
- EMISSIONS TIER
- Tier 4 Final
-
- DISPLACEMENT
- 231 in³
-
- SYSTEM VOLTAGE
- 24 V
Capacity
-
- FUEL TANK CAPACITY
- 60 gal
Operational
-
- RATED SPEED
- 2,300/2,075 rpm
-
- IDLE SPEED
- 1,500 rpm
Compressor
-
- RATED OPERATING PRESSURE
- 100/150 psig (6.9/10.3 bar)
-
- PRESSURE RANGE
- 80-175 psig (5.5-12.0 bar)
-
- FREE AIR DELIVERY
- 425/375 cfm
-
- AIR DISCHARGE OUTLET SIZE
- 1.25 in
