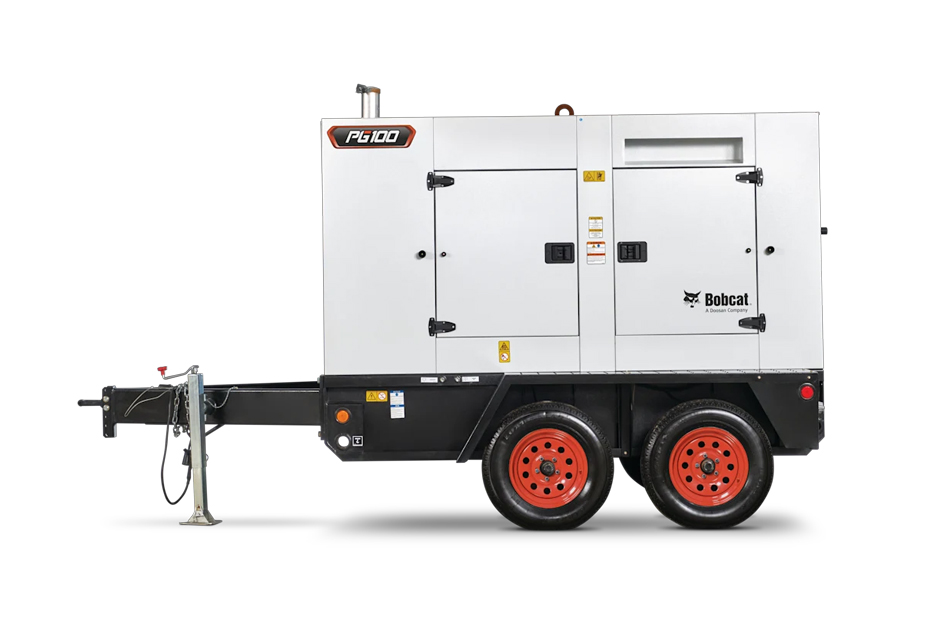

Bobcat PG100

PG100

Engineered to be a true towable and maneuverable jobsite generator, the Bobcat PG100 portable generator delivers ruggedly reliable power you can count on even in the harshest of conditions.

The PG100 was engineered for easy accessibility to all service components, keeping you up and running on the jobsite with minimal downtime. It boasts tough running gear and a hardened, galvanized steel enclosure that protects the inner components from the elements, improving longevity while lowering total lifetime cost of operation.

Powered by a Cummins F3.8 engine that delivers fuel economy and performance with built-in load management to decrease sludge buildup, the PG100 generator is a towable workhorse.  The Stamford alternator provides excellent motor starting capability, stable voltage regulation and fast transient response.

The PG100 also offers the quietest mid-range package in the market by delivering 100 kVA (80 kW) at 67 dB(A).  A dual-frequency switch comes standard, allowing the generator to change from 50Hz to 60Hz, making it one of the most versatile portable generators available.

The PG100 portable generator also comes with important safety precautions built in to protect the operator and the machine. For example, the magnetized door for the switch board will automatically turn off the engine when open to drastically reduce accidental injury.  Another door prevents operators from changing between 50Hz and 60Hz while the generator is running, protecting the machine from damage.

The PG100 portable generator from Bobcat provides unmatched versatility to support a variety of applications, including construction sites, special events and entertainment, de-watering and municipalities.

Bobcat Portable Generator Literature:

Download Bobcat Portable Generator Literature

Features

• Hardened Galvanized Steel Enclosure
• Easy-To-Use Operator Interface
• Analog Display
• Stamford Alternator

Options

• Intelligent Load Management System

PG100

Dimensions

• LENGTH

  166.1 in

• WIDTH

  72.5 in

• HEIGHT

  94.7 in

• WEIGHT

  6,700 lb

Engine

• ENGINE MAKE

  Cummins/F3.8

• DISPLACEMENT

  3.8 L

• EMISSIONS TIER LEVEL

  Tier 4 Final

• BATTERY VOLTAGE

  12 VDC

• RUNTIME @ 75% LOAD

  37 hr

• AFTERTREATMENT TECH

  DOC / SCR / DPF

Capacities

• FUEL TANK CAPACITY

  172 gal

• DIESEL EXHAUST FLUID CAPACITY

  14.7 gal

Prime Power Rating

• @ 480V-3-PHASE, 0.8PF, 60Hz

  100 kVA (80 kW), 120 Amps

• @ 240V-3-PHASE, 0.8PF, 60Hz

  100 kVA (80 kW), 241 Amps

• @ 208V-3-PHASE, 0.8PF, 60Hz

  100 kVA (80 kW), 278 Amps

• @ 240V-SINGLE-PHASE, 1.0PF, 60Hz

  72 kVA (72 kW), 300 Amps

• @ 120V-SINGLE-PHASE, 1.0PF, 60Hz

  72 kVA (72 kW), 300 x 2 Amps

• @ 400V-3-PHASE, 0.8PF, 50H

  100 kVA (80 kW), 144 Amps

• POWER OUTPUT @ 1,800 RPM

  129 hp

• SOUND LEVEL

  67 dB(A)

• FREQUENCY CAPABILITY

  50Hz/60Hz Switchable

• VOLTAGE CONFIGURATION

  3-Position Switch
