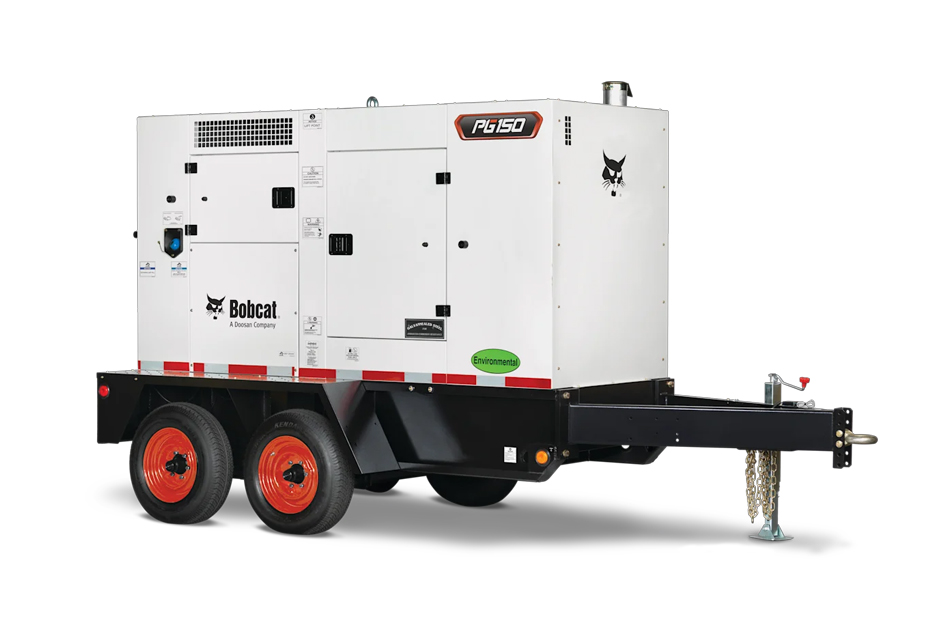

Bobcat PG150

PG150

One of the coolest and quietest generators on the market, the PG150 portable generator from Bobcat features is also one of the most reliable generators able to withstand the harshest working conditions. At 100% load, it delivers 154 kVA (123 kW) of power output at a stunningly quiet 69 dB(A).

The PG150 was engineered for easy serviceability, whether on the jobsite or back at the shop. It features a user-friendly, galvanized steel enclosure design with separate compartments for the powertrain and cooling system, which utilizes radial cooling fan technology – an industry first.

Easy to tow and maneuver around the jobsite, the PG150 is powered by a Cummins QSB5-G12 engine with improved fuel efficiency, allowing the generator to run for 27 hours at 75% load. It also comes equipped with a standard dual-frequency switch that allows the generator to change from 50Hz to 60Hz.

Connection panels on the PG150 portable generator are easily accessible for improved safety and convenience. The panels also feature more power wiring connections, a terminal board that accepts bare wire or lugged cable, an array of twist-lock and GFCI receptacles, and an optional camlock panel to further expand connection versatility.

Engineered tough for a long, hardworking lifespan, the PG150 offers best-in-class serviceability for maximum productivity and uptime with 500-hour service intervals. It’s equipped with an upsized alternator with AREP, protecting against overload and short-circuiting, offering voltage stability and greater motor starting capacity. And the optional Tundra Package – added coolant heater, oil pan heater, battery charger, battery heater pad and heated breather hose – keeps the power flowing even in extreme cold (as low as -40˚F).

Bobcat Portable Generator Literature:

Download Bobcat Portable Generator Literature

Features

• Hardened Galvanized Steel Enclosure
• Separate Compartments For Powertrain & Cooling System
• Run/Idle switch
• Analog Control Panel

Options

• Tundra Package

PG150

Dimensions

• LENGTH

  169.9 in

• WIDTH

  71.3 in

• HEIGHT

  94.9 in

• WEIGHT

  6,990 lb

Engine

• ENGINE MAKE

  Cummins QSB5-G12

• DISPLACEMENT

  4.5 L

• EMISSIONS TIER LEVEL

  Tier 4 Final

• BATTERY VOLTAGE

  24 VDC

• RUNTIME @ 75% LOAD

  26.8 hr

• AFTERTREATMENT TECH

  DOC / SCR

Capacities

• FUEL TANK CAPACITY

  172 gal

• DIESEL EXHAUST FLUID CAPACITY

  24 gal

Prime Power Rating

• @ 480V-3-PHASE, 0.8PF, 60Hz

  154 kVA (123 kW), 186 Amps

• @ 240V-3-PHASE, 0.8PF, 60Hz

  154 kVA (123 kW), 371 Amps

• @ 208V-3-PHASE, 0.8PF, 60Hz

  148 kVA (118 kW), 411 Amps

• @ 240V-SINGLE-PHASE, 1.0PF, 60Hz

  104 kVA (104 kW), 433 Amps

• @ 120V-SINGLE-PHASE, 1.0PF, 60Hz

  104 kVA (104 kW), 433 x 2 Amps

• @ 400V-3-PHASE, 0.8PF, 50H

  123 kVA (106 kW), 191 Amps

• POWER OUTPUT @ 1,800 RPM

  186 hp

• SOUND LEVEL

  69 dB(A)

• FREQUENCY CAPABILITY

  50Hz/60Hz Switchable

• VOLTAGE CONFIGURATION

  3-Position Switch
