Bobcat PG240
-
- Make
- Bobcat
-
- Category
- Bobcat Portable Generators
-
- Power Output
- 282 hp
-
- Runtime
- 35.5 hr
-
- Fuel Tank
- 368 gal
-
- Sound Level
- 69 dB(A)
-
- Frequency Capability
- 50Hz/60Hz Switchable
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo
PG240

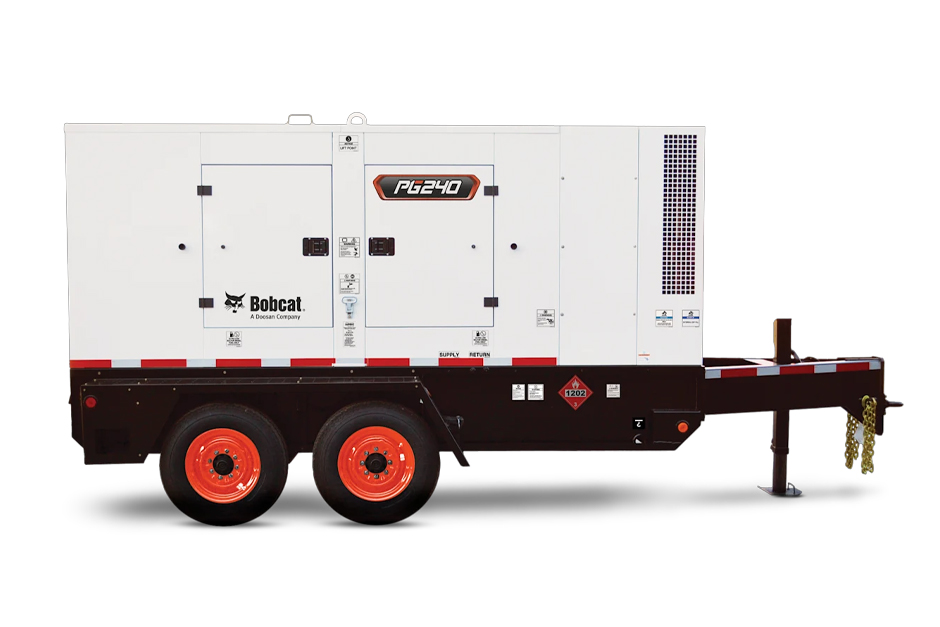

The Bobcat® PG240 portable generator is designed to bring ease-of-use to heavy-duty jobs. Large service doors provide unmatched access to all interior components for easy serviceability. Built-in engine cooling technology allows for optimum performance in a wide range of working conditions. And impressive starting capacity gives you the power you need to cover all your jobsite needs.
The PG240 features the exclusive DualBox™ enclosure design, which separates the powertrain from the cooling system, allowing independent control of the cooling performance in each compartment. The engine compartment is cooled by dual, variable speed, electric cooling fans designed to maximize sound attenuation and minimize water ingression. The cooling compartment features a high efficiency, centrifugal style cooling fan which improves fuel economy for the powerful Cummins QSB7-G9 engine.
Equipped with separately-excited, brushless alternators, the PG240 has the motor starting capability required to power tower cranes, rock crushers and oilfield equipment, while the solid-state automatic voltage regulators provide the precise voltage control needed in sensitive applications like concerts, film production and special events.
To maximize uptime and jobsite productivity, the Bobcat PG240 portable generator can go up to 500 hours between fluid and filter changes, minimizing overall maintenance time. When it is time to perform routine maintenance – or jobsite repairs – all maintenance points are easily accessible and designed for fast and easy service.
Bobcat Portable Generator Literature:
Features
- DualBox™ Enclosure Design
- Dual Variable-Speed Electric Cooling Fans
- Innovative Low-Load Management Solution
- Solid-State Automatic Voltage Regulators
- Brushless Alternators
PG240
Dimensions
-
- LENGTH
- 224 in
-
- WIDTH
- 83.2 in
-
- HEIGHT
- 102.9 in
-
- WEIGHT
- 11,377 lb
Engine
-
- ENGINE MAKE
- Cummins QSB7-G9
-
- DISPLACEMENT
- 6.7 L
-
- EMISSIONS TIER LEVEL
- Tier 4 Final
-
- BATTERY VOLTAGE
- 24 VDC
-
- RUNTIME @ 75% LOAD
- 35.5 hr
-
- AFTERTREATMENT TECH
- DOC / SCR
Capacities
-
- FUEL TANK CAPACITY
- 368 gal
-
- DIESEL EXHAUST FLUID CAPACITY
- 24 gal
Prime Power Rating
-
- @ 480V-3-PHASE, 0.8PF, 60Hz
- 236 kVA (189 kW), 284 Amps
-
- @ 240V-3-PHASE, 0.8PF, 60Hz
- 236 kVA (189 kW), 568 Amps
-
- @ 208V-3-PHASE, 0.8PF, 60Hz
- 219 kVA (175 kW), 607 Amps
-
- @ 240V-SINGLE-PHASE, 1.0PF, 60Hz
- 136 kVA (136 kW), 567 Amps
-
- @ 120V-SINGLE-PHASE, 1.0PF, 60Hz
- 136 kVA (136 kW), 567 x 2 Amps
-
- @ 400V-3-PHASE, 0.8PF, 50H
- 200 kVA (160 kW), 289 Amps
-
- POWER OUTPUT @ 1,800 RPM
- 282 hp
-
- SOUND LEVEL
- 69 dB(A)
-
- FREQUENCY CAPABILITY
- 50Hz/60Hz Switchable
-
- VOLTAGE CONFIGURATION
- Link Board Panel
