Bobcat PG25

PG25

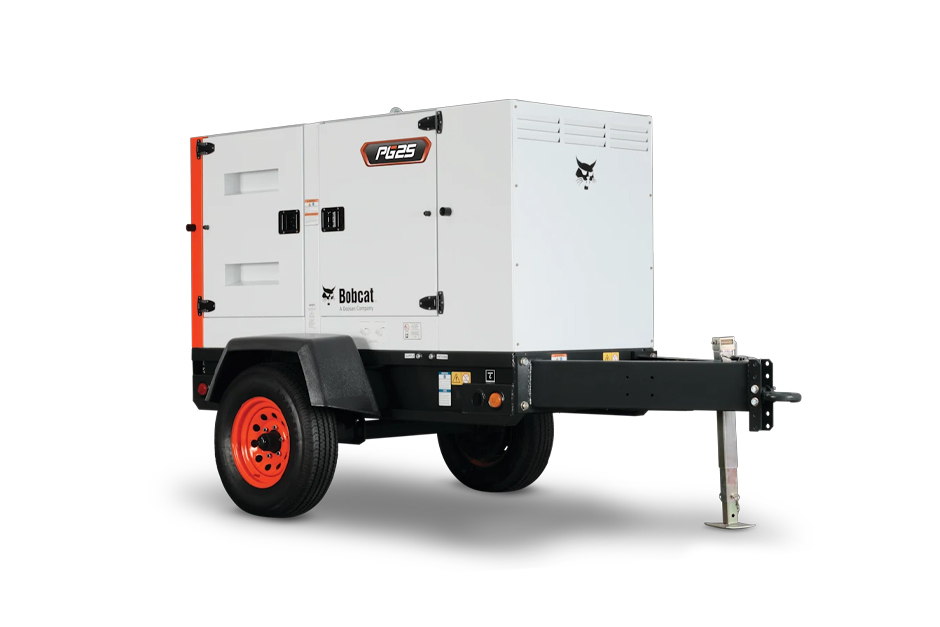

The PG25 portable generator from Bobcat delivers dependable power in a small package. Built tough with a rugged enclosure and running gear, the PG25 can withstand the toughest conditions to keep you up and running, maximizing your jobsite productivity. Its user-friendly control panel, easy-to-read analog gauges, 25-hour runtime and quiet operation make the PG25 ideal for events, emergency backups and construction sites.

Bobcat designed the compact PG25 generator to be easy to operate for you and your crew or for rental applications. The simple control panel comes with neatly laid out gauges and diagnostic displays that allow users to quickly monitor the generator and make adjustments as needed. From heavy-duty construction needs to music festivals, the PG25 also offers multiple connection options for ultimate versatility.

The reliable Doosan D18 engine ensures longer runtime and maintenance intervals, while the Marelli alternator further enhances overall reliability and efficiency with strong motor starting capability, stable voltage regulation and fast transient response.

For low-load operation, the optional built-in Intelligent Load Management System (ILMS) automatically protects the PG25’s engine and exhaust after-treatment system during unfavorable operating conditions. The ILMS creates a mechanical load on the engine to substantially – and immediately – heat the engine coolant to reach ideal operational temperature and minimize wet stacking. This prolongs the life of your generator and reduces maintenance costs.

Bobcat Portable Generator Literature:

Download Bobcat Portable Generator Literature

Features

• Easy-To-Read Analog Gauges
• User-Friendly Control Panel

PG25

Dimensions

• LENGTH

  109 in

• WIDTH

  55 in

• HEIGHT

  82 in

• WEIGHT

  3,060 lb

Engine

• ENGINE MAKE

  Doosan D18

• DISPLACEMENT

  1.8 L

• EMISSIONS TIER LEVEL

  Tier 4 Final

• BATTERY VOLTAGE

  12 VDC

• RUNTIME @ 75% LOAD

  30 hr

Capacities

• FUEL TANK CAPACITY

  47 gal

Prime Power Rating

• @ 480V-3-PHASE, 0.8PF, 60Hz

  25 kVA (20 kW), 30 Amps

• @ 240V-3-PHASE, 0.8PF, 60Hz

  25 kVA (20 kW), 60 Amps

• @ 208V-3-PHASE, 0.8PF, 60Hz

  25 kVA (20 kW), 69 Amps

• @ 240V-SINGLE-PHASE, 1.0PF, 60Hz

  20 kVA (20 kW), 83 Amps

• @ 120V-SINGLE-PHASE, 1.0PF, 60Hz

  20 kVA (20 kW), 83 x 2 Amps

• @ 400V-3-PHASE, 0.8PF, 50H

  25 kVA (20 kW), 36 Amps

• POWER OUTPUT @ 1,800 RPM

  33 hp

• SOUND LEVEL

  62 dB(A)

• FREQUENCY CAPABILITY

  50Hz/60Hz Switchable

• VOLTAGE CONFIGURATION

  3-Position Switch
