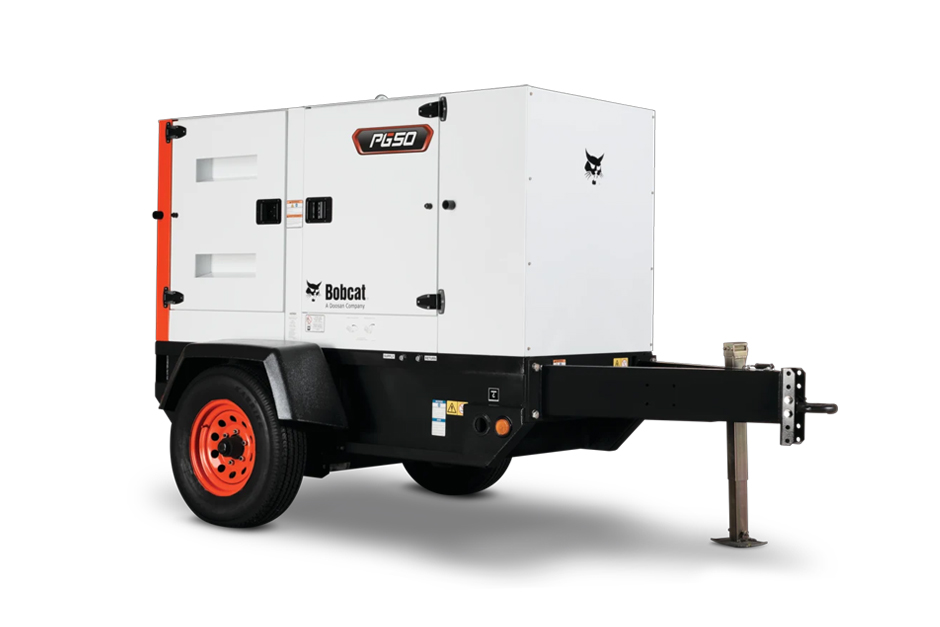

Bobcat PG50

PG50

Wherever you need power, the ruggedly reliable Bobcat PG50 portable generator can get there to keep you up and running. Offering unmatched dependability, performance and serviceability, the PG50 is designed to deliver the versatile power needed for almost any application – from live events and construction to disaster relief and emergency backup.

Built for a long life and maximum jobsite performance, the PG50 comes with a corrosion-resistant galvanized steel enclosure, as well as a durable baked-on powder coat finish to keep components protected even in the harshest conditions.

The generator’s entire design is focused on accessibility, making on-the-job repairs and routine maintenance quick and easy. And like all Bobcat portable generators, the PG50 also offers best-in-class fuel economy with long runtimes (37 hours for this model), delivering reliable power and maximum uptime.

To enhance usability, the PG50’s easy-to-use control panel features neatly laid out analog gauges and diagnostic displays that allow you to quickly monitor the generator to immediately diagnose any concerns. The PG50 also offers multiple connection options, including optional camlocks, for ultimate versatility.

The PG50 delivers unmatched starting power with optional low-load management solutions designed to maximize the machine’s lifespan while also maximizing your jobsite productivity. The Intelligent Load Management System adds mechanical advantage to the engine without impacting your fuel economy, allowing the engine to burn hot enough to prevent the sludge buildup common with older machines.

Bobcat Portable Generator Literature:

Download Bobcat Portable Generator Literature

Features

• Easy-To-Read Analog Gauges
• User-Friendly Control Panel

Options

• Intelligent Load Management System

PG50

Dimensions

• LENGTH

  130.5 in

• WIDTH

  68.3 in

• HEIGHT

  76.6 in

• WEIGHT

  3,930 lb

Engine

• ENGINE MAKE

  Doosan D24

• DISPLACEMENT

  2.4 L

• EMISSIONS TIER LEVEL

  Tier 4 Final

• BATTERY VOLTAGE

  12 VDC

• RUNTIME @ 75% LOAD

  40.3 hr

Capacities

• FUEL TANK CAPACITY

  102 gal

Prime Power Rating

• @ 480V-3-PHASE, 0.8PF, 60Hz

  50 kVA (40 kW), 60 Amps

• @ 240V-3-PHASE, 0.8PF, 60Hz

  50 kVA (40 kW), 120 Amps

• @ 208V-3-PHASE, 0.8PF, 60Hz

  50 kVA (40 kW), 139 Amps

• @ 240V-SINGLE-PHASE, 1.0PF, 60Hz

  33 kVA (33 kW), 140 Amps

• @ 120V-SINGLE-PHASE, 1.0PF, 60Hz

  33 kVA (33 kW), 140 x 2 Amps

• @ 400V-3-PHASE, 0.8PF, 50H

  43 kVA (34 kW), 62 Amps

• POWER OUTPUT @ 1,800 RPM

  62.2 hp

• SOUND LEVEL

  66 dB(A)

• FREQUENCY CAPABILITY

  50Hz/60Hz Switchable

• VOLTAGE CONFIGURATION

  3-Position Switch
