Bobcat PG570
-
- Make
- Bobcat
-
- Category
- Bobcat Portable Generators
-
- Power Output
- 680 hp
-
- Runtime
- 27.8 hr
-
- Fuel Tank
- 656 gal
-
- Sound Level
- 75 dB(A)
-
- Frequency Capability
- 60Hz
-
- Condition
- New
Want to rent before you buy? SEE RENTALS
Request a Quote Book a Demo
PG570

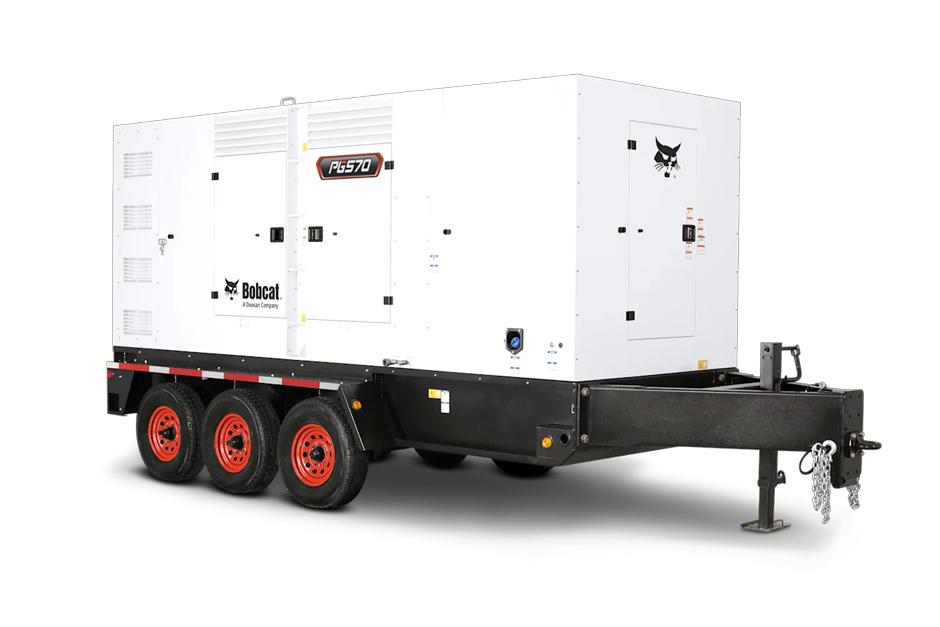

With the PG570 portable generator, Bobcat delivers heavy-duty power combined with unmatched versatility for the most demanding jobsite operations.
Featuring the powerful Cummins X15 engine with the latest performance technology, the PG570 has no EGR and no minimum load requirements in working temperatures down to -13° F (-25° C). Its upsized alternator allows for better motor starting capabilities, superior reaction to harmonics and improved overall alternator life. It’s roughly 20% smaller, in both size and weight, than comparable models on the market, making the PG570 a true towable generator capable of navigating the toughest jobsites.
Ideal for rental, construction and special event applications, the PG570 portable generator has a prime power rating of 570 kVA (456 kW) and voltage configurations of 480V, 208V and 120/240. It will give you up to 24 hours of reliable power in most applications.
The PG570 comes standard with a DEIF paralleling controller, allowing you to parallel up to 32 machines for maximum reliability. The convenience receptacles provide single-phase power regardless of primary voltage selection.
As with all Bobcat portable generators, the PG570 was engineered with ease of serviceability in mind. The after-treatment system requires minimal maintenance and is easily accessible from the front of the machine. All user interface components, such as the controller, link board panel and convenience receptacles, are located on the rear of the machine for easy operation. The CoolBox solution maximizes performance to achieve industry-leading noise levels and minimum water ingression.
Bobcat Portable Generator Literature:
Features
- 20% Smaller Than Comparable Models
- No EGR & No Minimum Load Requirements
- Upsized Alternator
- DEIF Paralleling Controller
- CoolBox Plus Galvanized Steel Enclosure
PG570
Dimensions
-
- LENGTH
- 260 in
-
- WIDTH
- 98.5 in
-
- HEIGHT
- 119.8 in
-
- WEIGHT
- 23,684 lb
Engine
-
- ENGINE MAKE
- Cummins X15
-
- DISPLACEMENT
- 15 L
-
- EMISSIONS TIER LEVEL
- Tier 4 Final
-
- BATTERY VOLTAGE
- 24 VDC
-
- RUNTIME @ 75% LOAD
- 27.8 hr
-
- AFTERTREATMENT TECH
- SCR
Capacities
-
- FUEL TANK CAPACITY
- 656 gal
-
- DIESEL EXHAUST FLUID CAPACITY
- 46 gal
Prime Power Rating
-
- @ 480V-3-PHASE, 0.8PF, 60Hz
- 570 kVA (456 kW), 686 Amps
-
- @ 240V-3-PHASE, 0.8PF, 60Hz
- 570 kVA (456 kW), 1371 Amps
-
- @ 208V-3-PHASE, 0.8PF, 60Hz
- 570 kVA (456 kW), 1582 Amps
-
- @ 240V-SINGLE-PHASE, 1.0PF, 60Hz
- 255 kVA (255 kW), 1063 Amps
-
- @ 120V-SINGLE-PHASE, 1.0PF, 60Hz
- 255 kVA (255 kW), 1063 x 2 Amps
-
- @ 400V-3-PHASE, 0.8PF, 50H
- N/A
-
- POWER OUTPUT @ 1,800 RPM
- 680 hp
-
- SOUND LEVEL
- 75 dB(A)
-
- FREQUENCY CAPABILITY
- 60Hz
-
- VOLTAGE CONFIGURATION
- Link Board Panel
