Bobcat PL80

PL80

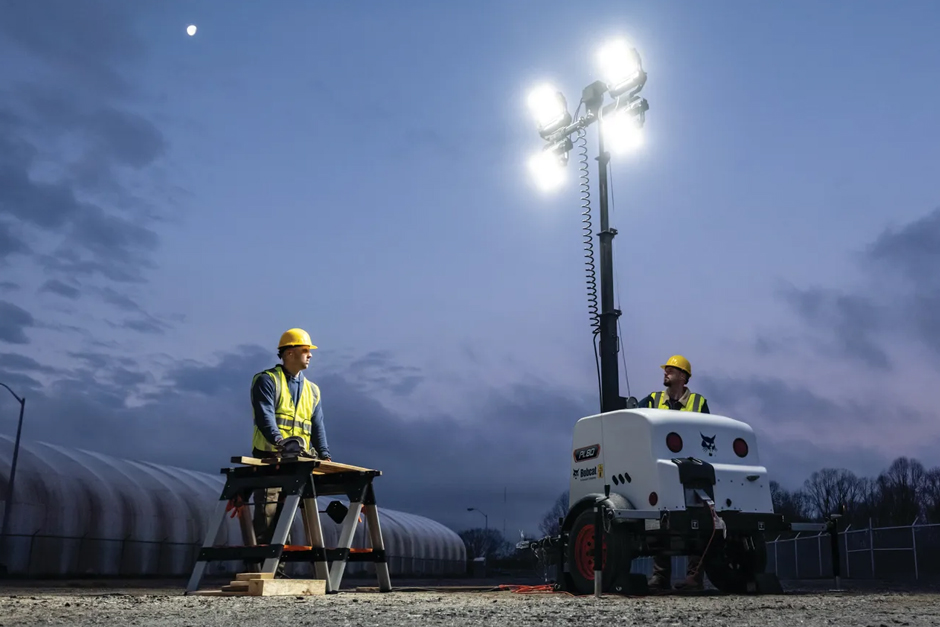

From illuminating construction sites for 24-hour productivity to bringing much-needed light to assist with emergency disaster relief operations, count on the Bobcat PL80 portable light tower and its impressive 180-hour run time.

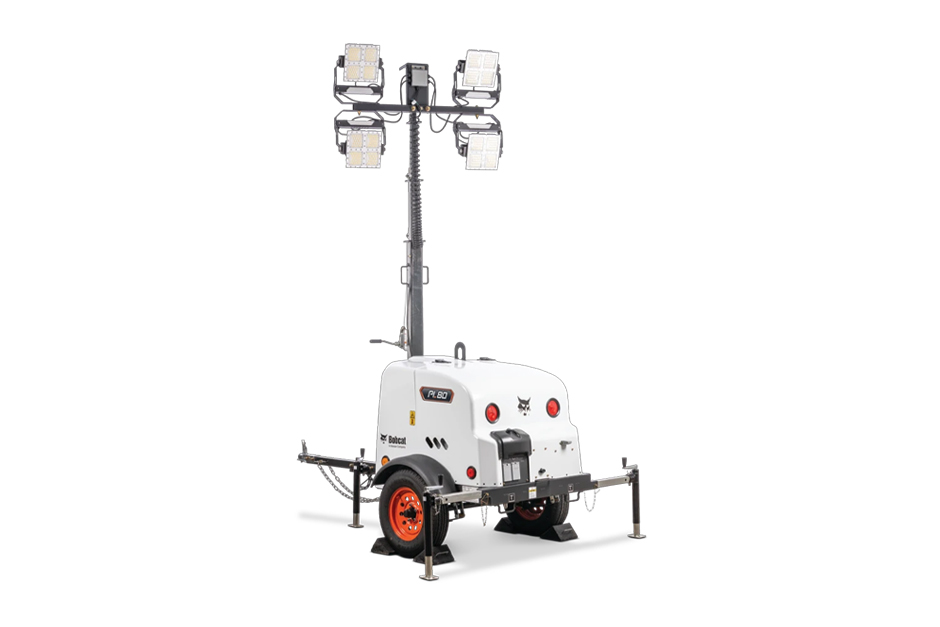

The PL80 is a programmable light tower that can be set to turn on at dusk and turn off at dawn for uninterrupted productivity. The mast rotates a full 360 degrees and extends up to 23 feet high for broad coverage, while each of the lights can be pointed independently. When it comes time to reposition, the PL80 is compact and light enough to be maneuvered by hand.

The Bobcat PL80 vertical mast light tower features a compact footprint for increased jobsite mobility and cost-effective transport – you can fit 17 on a single flatbed truck. It’s powered by a reliable Kubota® engine paired with a high-output 8-kilowatt alternator, giving you both light and power at the same time.

Like all Bobcat products, the PL80 was engineered for maximum productivity, ease of use and low lifetime cost of operation. The innovative clamshell-style canopy is made of a durable, lightweight composite material that lifts easily for quick access to all service points. The Kubota engine has one of the longest maintenance intervals on the market, capable of running for 1,000 hours in between oil changes, reducing downtime and maintenance costs.

If your workday doesn’t end, or your event heats up after the sun goes down, trust the Bobcat PL80 to provide safe working conditions with zero interruptions.

Bobcat Light Tower Literature:

Download Bobcat Light Tower Spec Sheet

Features

• Composite Clamshell Design

Options

• Optional LED Lamps

PL80

Dimensions

• LENGTH WITH DRAWBAR DOWN

  109 in

• LENGTH WITH DRAWBAR UP

  82 in

• WIDTH

  55 in

• WIDTH WITHOUT OUTRIGGERS DEPLOYED

  82 in

• TRACK WIDTH

  47.4 in

• WEIGHT

  1,793 lb

• HEIGHT WITH TOWER IN TRANSPORT POSITION

  8.5 ft

• HEIGHT WITH TOWER DEPLOYED

  23 ft in

Engine

• ENGINE MAKE

  Kubota D1105

• DISPLACEMENT

  68.53 in³

• COOLING SYSTEM

  Water / Glycol

• FUEL TYPE

  #2 Ultra-Low Sulfur Diesel

• USABLE FUEL CAPACITY

  52.4 gal

• RUNTIME WITH 4 METAL HALIDE LIGHTS

  97 h

• RUNTIME WITH 4 LED LIGHTS

  180 h

Electrical System

• SYSTEM VOLTAGE

  12 V

Generator

• PRIME POWER RATING

  8 kW

• AVAILABLE FREQUENCY

  60 Hz

Operational

• RATED SPEED

  15.4 @ 1800 RPM

Receptacles

• 120V GFCI DUPLEX

  2x Standard

• 240V TWIST LOCK

  N/A
