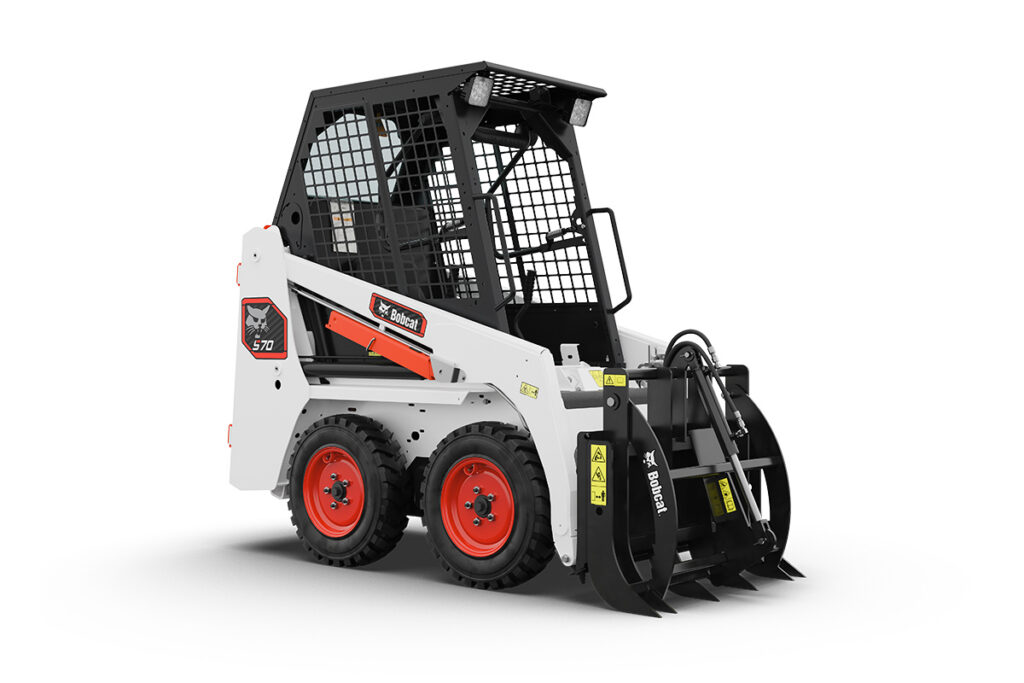

Bobcat S70 Classic

Bobcat S70 Classic Skid-Steer Loader

The Bobcat S70 Classic skid-steer loader is a compact, highly maneuverable solution built for jobs that demand precision in tight spaces. At just over 35 inches wide, the S70 easily fits through backyard gates, narrow pathways and standard doorways—making it ideal for landscaping, property maintenance, snow removal and light construction work. With a 760 lb rated operating capacity and reliable hydraulic performance, this machine delivers the power you need for lifting, loading and material handling in confined areas. Designed with a radius lift path, the S70 offers strong mid-range reach for tasks like dumping over walls, backfilling and loading trailers, helping you stay efficient on smaller jobsites.

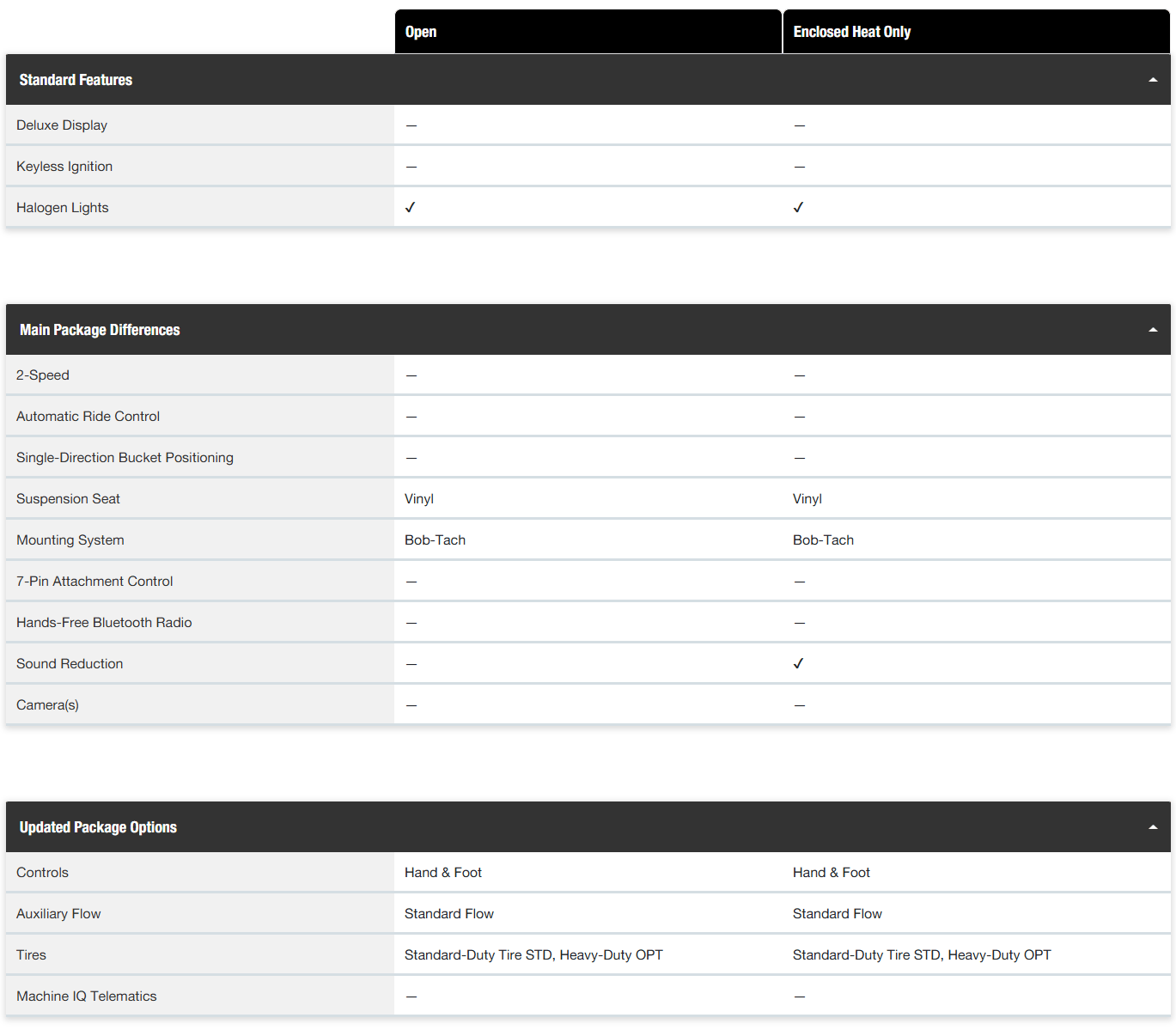

Built for comfort and simplicity, the Bobcat S70 features a seated operator experience with your choice of open or enclosed cab options, including available heat for all-season productivity. Proven hand and foot controls provide smooth, responsive operation, while the industry-leading Bob-Tach® attachment mounting system allows quick, tool-free attachment changes to maximize versatility. Easy service access through a large rear tailgate simplifies routine maintenance, reducing downtime and keeping your machine working. Whether you’re an entry-level operator or a seasoned pro, the S70 skid-steer loader delivers dependable performance, straightforward operation and exceptional value for a wide range of applications.

Classic Series Skid-Steer Loader Literature:

Download Classic Series Compact Loader Brochure

Download Bobcat Attachments Catalogue

Features

• Adjustable Seat
• Backup Alarm
• BICS System (Interlock)
• Operating Lights
• Parking Brake
• Rear Window
• Lift-Arm Support
• Seat Belt
• Suspension Seat
• Auxiliary Hydraulics
• Spark Arrestor Muffler
• Bob-Tach™ Attachment System
• Horn

Popular Attachments

• Breaker
• Auger
• Sweeper
• Pallet Forks
• Stump Grinder
• Angle Broom

Bobcat S70 Classic Skid-Steer Loader

Dimensions

• LENGTH

  75.6 in

• LENGTH WITH BUCKET

  97.3 in

• HEIGHT

  71.4 in

• WIDTH

  35.5 in

• WIDTH WITH BUCKET

  36 in

• WEIGHT

  2,892 lb

• HEIGHT TO HINGE PIN

  94.5 in

• WHEELBASE

  28.4 in

• TURNING RADIUS

  57 in

• REACH AT MAX HEIGHT

  15.8 in

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  23.5 hp

• ENGINE MODEL

  D1005-E4B-BC-3

• FUEL TYPE

  Diesel

• FUEL TANK CAPACITY

  6.5 gal

• COOLING

  Liquid

Hydraulics

• AUXILIARY STD FLOW

  8.9 gpm

• AUXILIARY HIGH FLOW

  N/A

• SYSTEM RELIEF @ QUICK COUPLERS

  3,000 psi

Performance

• RATED OPERATING CAPACITY

  760 lb

• TIPPING LOAD

  1,520 lb

• TRAVEL SPEED (1-SPEED)

  10 km/h

• TRAVEL SPEED - LOW - (2-SPEED)

  N/A

• TRAVEL SPEED - HIGH - (2-SPEED)

  N/A
