Bobcat T740

Bobcat T740

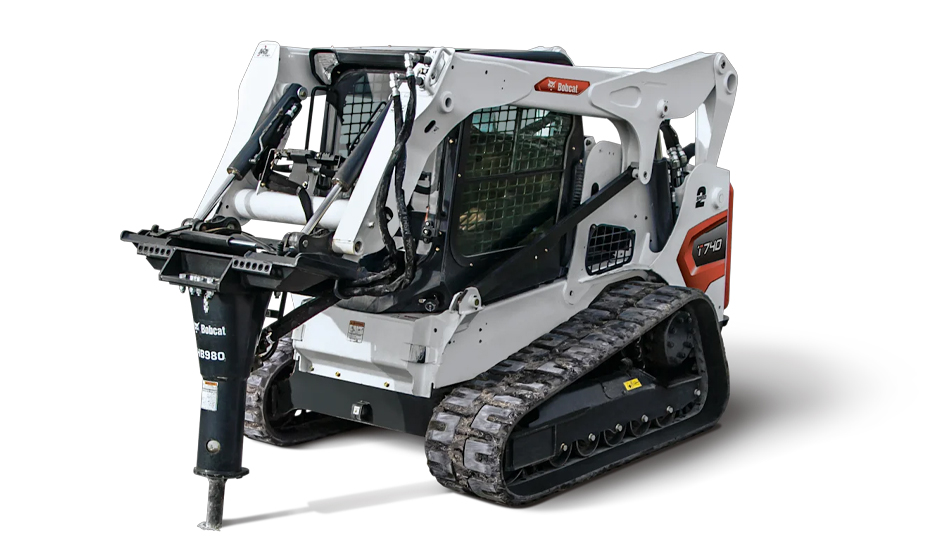

The Bobcat T740 compact track loader features a powerful, non-DPF engine that delivers exceptional performance and outstanding lift height, making it ideal for efficient material handling. Its unmatched attachment versatility allows operators to take on a wide variety of tasks with a single, rugged machine.

Operators value the T740 for its strong breakout forces, quick cycle times, and easy-access serviceability that simplifies routine maintenance. Bobcat’s precisely matched hydraulic pumps, cylinders, and lift capacities ensure fast, efficient operation—helping you complete the job faster and more effectively.

M3-Series Compact Loader Literature:

Download M3-Series Compact Loader Brochure

Download Bobcat Attachments Catalog

Features

• Joystick Control
• Backup Alarm
• BICS System (Interlock)
• Operating Lights
• Rear Window
• Top Window
• Seat Belt
• Suspension Seat
• Engine Shutdown
• Auxiliary Hydraulics
• Spark Arrestor Muffler
• Bob-Tach Attachment System
• Horn

Options

• Air Conditioning
• Cab Enclosure
• Cab Heater
• Two Speed Travel
• Deluxe Instrumentation
• Hydraulic Bucket Positioning
• High Flow Option
• Power Bob-Tach
• Ride Control

Popular Attachments

• Auger
• Breaker
• Brushcat
• Industrial Grapple
• Tree Spade
• Trencher

Bobcat T740

Dimensions

• LENGTH

  114.3 in

• LENGTH WITH BUCKET

  141.6 in

• HEIGHT

  81.3 in

• WIDTH

  78 in

• WIDTH WITH BUCKET

  80 in

• WEIGHT

  10,127 lb

• TURNING RADIUS

  88 in

• HEIGHT TO BUCKET PIN

  131 in

• TRACK WIDTH

  17.7 in

Engine

• ENGINE

  Tier 4

• HORSEPOWER

  74 hp

• FUEL TYPE

  Diesel

• FUEL TANK CAPACITY

  43.8 gal

• COOLING

  Air

Hydraulics

• SYSTEM RELIEF AT QUICK COUPLERS

  3,500 psi

• AUXILIARY STD FLOW

  23 gal/min

• AUXILIARY HIGH FLOW

  30.5 gal/min

Operational

• RATED OPERATING CAPACITY

  3,200 lb

• TIPPING LOAD

  9,143 lb

• TRAVEL SPEED

  9.7 km/h

• TRAVEL SPEED - 2-SPEED OPTION

  13.4 km/h
