< Bobcat Track Loaders

Bobcat T770 Classic

Want to rent before you buy? SEE RENTALS

Request a Quote Book a Demo

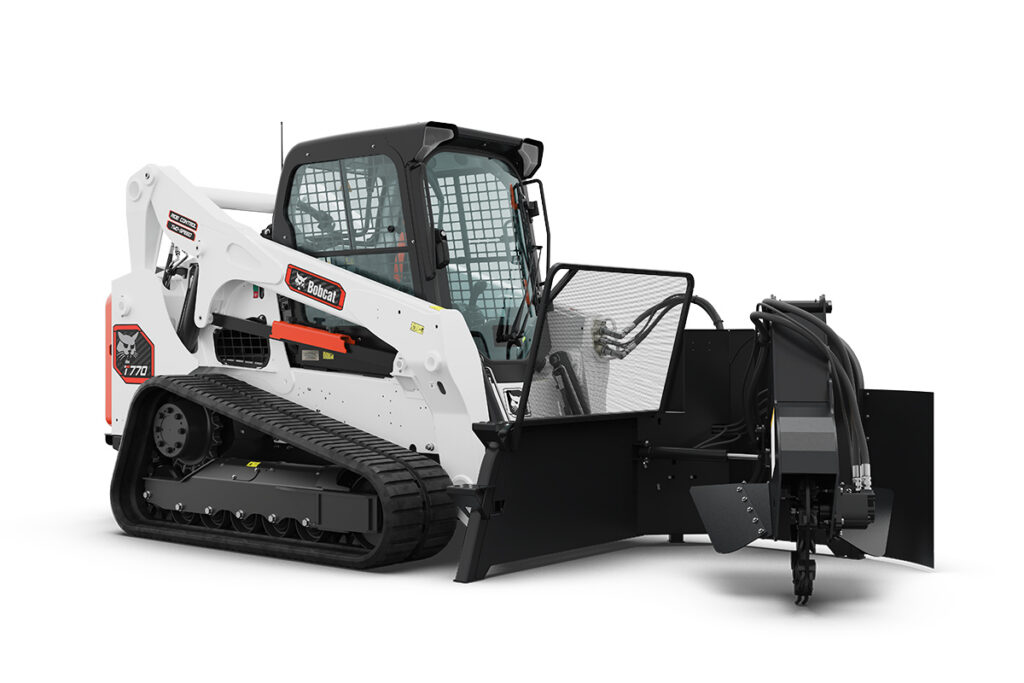

Bobcat T770 Classic Compact Track Loader

The Bobcat T770 Classic compact track loader is a high-performance, heavy-duty machine designed for contractors who need maximum lifting capability, fast cycle times and reliable jobsite productivity. As the largest model in the Bobcat Classic lineup, the T770 delivers exceptional strength with a 3,475 lb rated operating capacity and powerful breakout force—making it ideal for construction, demolition, land clearing and large-scale material handling. Its 92 hp non-DPF engine reduces maintenance requirements and downtime, helping crews stay focused on the job. With optional two-speed travel up to 17.2 km/h, operators can move quickly across the jobsite and complete more work in less time.

Built for durability and versatility, the Bobcat T770 Classic compact track loader offers a rugged undercarriage, advanced cooling system and smooth, responsive controls for consistent performance in tough conditions. Optional roller suspension enhances ride comfort and stability on uneven terrain, while high attachment compatibility allows you to tackle a wide range of applications with one machine. Operators can choose between Selectable Joystick Controls or traditional hand-and-foot controls for a familiar operating experience. Combining proven Bobcat engineering with high-capacity performance, the T770 is a top choice for professionals looking to maximize efficiency, uptime and return on investment.

Standard Deluxe Display with optional integrated rearview camera available on select packages starting mid-year 2026.

Classic Series Track Loader Literature:

Download Classic Series Compact Loader Brochure

Download Bobcat Attachments Catalogue

Features

  • Backup Alarm
  • BICS System (Interlock)
  • ROPS/FOPS Approved
  • Operating Lights
  • Work Lights
  • Turbocharged Engine
  • Rear Window
  • Top Window
  • Seat Belt
  • Suspension Seat
  • Engine Shutdown
  • Auxiliary Hydraulics
  • Grease Track Tension
  • Spark Arrestor Muffler
  • Bob-Tach™ Attachment System
  • Horn

Bobcat T770 Classic Compact Track Loader

Dimensions

  • LENGTH
    113.3 in
  • LENGTH WITH BUCKET
    141.6 in
  • HEIGHT
    81.3 in
  • WIDTH
    78 in
  • WIDTH WITH BUCKET
    80 in
  • WEIGHT
    10,515 lb
  • HEIGHT TO HINGE PIN
    132 in
  • TURNING RADIUS
    87.6 in
  • TRACK WIDTH
    17.7 in

Engine

  • ENGINE
    Tier 4
  • HORSEPOWER
    92 hp
  • ENGINE MODEL
    D34 NAP T4 92 HP DL03-LEL02
  • FUEL TYPE
    Diesel
  • FUEL TANK CAPACITY
    43.8 gal
  • COOLING
    Liquid

Hydraulics

  • SYSTEM RELIEF @ QUICK COUPLERS
    3,450 psi
  • AUXILIARY STD FLOW
    23 gpm
  • AUXILIARY HIGH FLOW
    36.6 gpm

Performance

  • RATED OPERATING CAPACITY
    3,475 lb
  • TIPPING LOAD
    9,929 lb
  • TRAVEL SPEED (1-SPEED)
    10.6 km/h
  • TRAVEL SPEED - LOW (2-SPEED)
    9.8 km/h
  • TRAVEL SPEED - HIGH (2-SPEED)
    17.2 km/h

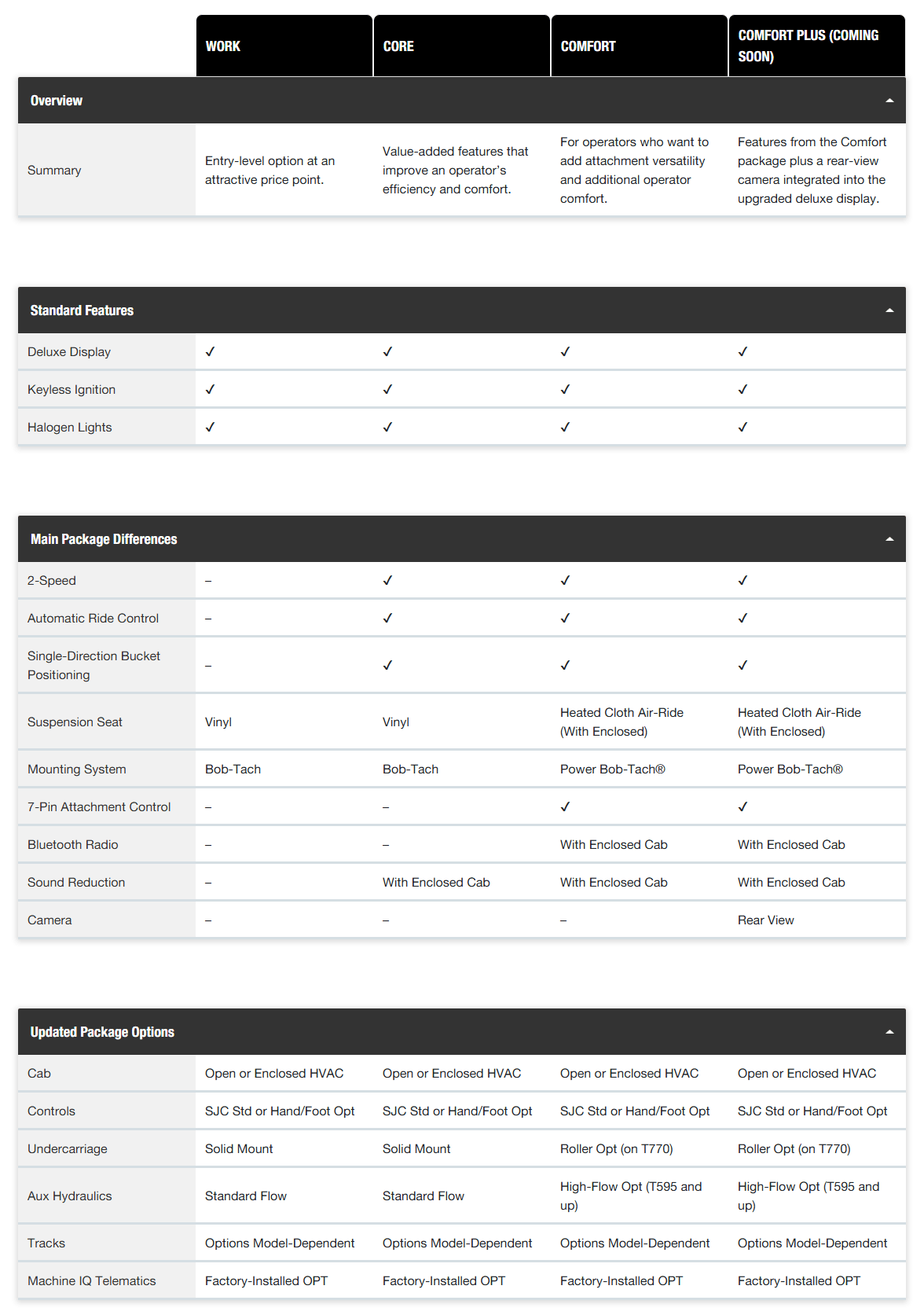

WORK Entry-level option at an attractive price point. Includes key standard features.
CORE Value-added features that improve an operator’s efficiency and comfort.
COMFORT For operators who want to add attachment versatility and additional operator comfort.
COMFORT PLUS Features from the Comfort package plus a rear-view camera integrated into the upgraded deluxe display.
Deluxe Display
Keyless Ignition
Halogen Lights
2-Speed
–
Automatic Ride Control
–
Single-Direction Bucket Positioning
–
Suspension Seat
Vinyl
Vinyl
Heated Cloth Air-Ride (With Enclosed)
Heated Cloth Air-Ride (With Enclosed)
Mounting System
Bob-Tach
Bob-Tach Std/Power Bob-Tach® Option
Power Bob-Tach®
Power Bob-Tach®
7-Pin Attachment Control
–
–
Bluetooth Radio
–
–
With Enclosed Cab
With Enclosed Cab
Sound Reduction
–
With Enclosed Cab
With Enclosed Cab
With Enclosed Cab
Camera
–
–
–
Rear View
Cab
Open or Enclosed HVAC
Open or Enclosed HVAC
Open or Enclosed HVAC
Open or Enclosed HVAC
Controls
SJC Std / Hand & Foot Option
SJC Std / Hand & Foot Option
SJC Std / Hand & Foot Option
SJC Std / Hand & Foot Option
Undercarriage
Solid Mount
Solid Mount
Roller Option
Roller Option
Aux Hydraulics
Standard Flow
Standard Flow
High Flow Option
High Flow Option
Tracks
Options Model-Dependent
Options Model-Dependent
Options Model-Dependent
Options Model-Dependent
Machine IQ Telematics
Factory-Installed Option
Factory-Installed Option
Factory-Installed Option
Factory-Installed Option
